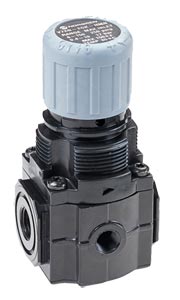

V72G Series Air Line Pressure Relief Valves

Air Line Pressure Relief Valves | V72G Series Air Line Pressure Relief Valves

Air Line Pressure Relief Valves

See All Models Below

  • In-Line or Modular Installation
  • Push to Lock Adjusting Knob with Tamper Resistant Accessory
  • Helps Protect Air Operated Equipment from Over Pressure by Retarding Excessive Pressure Build Up

Description

The V72G series has been discontinued. Please contact our Flow Engineering department.


The V72G Series Air Pressure Relief Valves are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. A pressure relief valve is uses to protect pneumatic equipment from over pressure by retarding excessive pressure build up. As a modular component, this pressure relief valve can quickly be attached to air filters, lubricators, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure: 20 bar (300 psig)
Operating Temperature*: -34 to 65°C (-30 to 150°F)
MATERIALS
V72:
Gage Port: 18" PTF with PTF main ports; 18" ISO Rc with ISO G main ports
Exhaust Port: ¼" PTF with PTF main ports; ¼" ISO Rc with ISO G main ports
V72G:
Body: Zinc
Bonnet: Acetal
Elastomers: Neoprene
Bottom Plug: Acetal
V74G:
Body and Bonnet: Aluminum
Valve: Aluminum and nitrile
Elastomers: Nitrile
Bottom Plug: Acetal
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F).

OPTIONS SELECTOR




STANDARD DIMENSIONS (in)
SERIES A B C F G H PANEL DIA. PANEL DEPTH
72 2.87 0.98 1.02 1.97 1.89 1.38 1.57 0 to 0.2
74 5.00 1.69 1.22 3.15 2.91 2.20 2.05 0.08 to 0.2
METRIC DIMENSIONS (mm)
72 28.3 26.4 26.4 27.4 27.3 26.8 27.0 0 to 5
74 30.4 27.1 26.6 28.6 28.3 27.6 27.5 2 to 5
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
0.3 to 10 bar (5 to 150 psig) pressure range
V72G-2AK-NMG
Consult Sales
Availability:


Pressure Relief Valve ¼' Port
V72G-2AK-NFG
Consult Sales
Availability:


Pressure Relief Valve ¼' Port, 5 to 60 psig
V72G-3AK-NMG
Consult Sales
Availability:


Pressure Relief Valve 38' Port
V74G-3AK-NMG
Consult Sales
Availability:


Pressure Relief Valve 38' Port
V74G-4AK-NMG
Consult Sales
Availability:


Pressure Relief Valve ½' Port
Accessories
OM-AIR-4224-50
Consult Sales
Availability:


Wall Mounting Bracket for V72G
OM-AIR-4324-50
Consult Sales
Availability:


Wall Mounting Bracket for V74G
OM-AIR-74316-50
€11.21
Availability: 1 week

Neck Mounting Bracket for V72G
OM-AIR-4368-51
€23.88
Availability: 1 week

Neck Mounting Bracket for V74G
OM-AIR-4248-89
Consult Sales
Availability:


Panel Nut for Neck Mounting Bracket for V72G
OM-AIR-4348-89
Consult Sales
Availability:


Panel Nut for Neck Mounting Bracket for V74G
OM-AIR-18-013-211
Consult Sales
Availability:


Gage, (18' NPT), 1.5' diameter, 0 to 60 psi for V72
OM-AIR-18-013-212
Consult Sales
Availability:


Gage, (18' NPT), 1.5' diameter, 0 to 11Bar (160 psi ) For V72
OM-AIR-18-013-208
Consult Sales
Availability:


Gage, (¼'), 2' diameter, 0 to 60 psi for V74
OM-AIR-18-013-209
€17.08
Availability: 1 week

Gage, (¼'), 2' diameter, 0 to 160 psi for V74
All amounts shown in EUR
Note: For Excelon® 73 combinations use V74G
