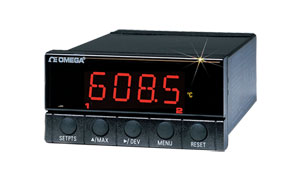

Process and Strain Meter & Controller

DP25B Series

load cell panel indicator | DP25B Series

load cell panel indicator

420,74 DP25B-E

5 year warranty CE
  • 5-Year Warranty
  • 4-Digit Three Colour (Red, Green, Amber) Programmable LED Display
  • 1/8 DIN panel mount
  • Built-In Excitation
  • Scaling in Wide Range of Engineering Units
  • Analogue Output Optional
  • Dual Relays Optional
  • Peak Memory
  • Tare Button
Temperature & Process Meters, Timers and Counters - View related products

Description

Click on this link if you need more information about Panel Meters.

The DP25B process or strain meters accept a wide variety of DC voltage and current inputs to cover any typical process application. Standard features include a full 4-digit three colour (Red, Green, & Amber) programmable LED display, easy front panel scaling to virtually any engineering units, selectable excitation of four voltages to work with most transducers and transmitters, front panel and remote tare function for weighing applications, and a hardware lockout to prevent unauthorised changes in setup. The meter also has the ability to change display brightness from high, medium and low. Four full digits and simplified scaling via the front-panel pushbuttons make it easy to set the display to read in any engineering units. All these standard features add up to an instrument with powerful capabilities at an extremely affordable price.
Please review pdf file (in related links) for full specifications and models available.
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Process Voltage and Current Input Meters

DP25B-E-230
420.74
Availability: 1 week

Process Meter (Voltage and Current) with excitation. 230Vac powered
Click to expand/minimize a list of what others bought with theDP25B-E
DP25B-E
420.74
Availability: 7 weeks

Process Meter (Voltage and Current) with excitation. 110Vac powered
Click to expand/minimize a list of what others bought with theDP25B-E-AR
DP25B-E-AR
660.11
Availability: 1 week

Process Meter (Voltage and Current) with excitation, dual relays and analogue output. 115Vac powered

DP25B-E-230-R
529.54
Availability: 7 weeks

Process Meter (Voltage and Current) with excitation and dual relay output. 230Vac powered

DP25B-E-230-A
544.04
Availability: In Stock

Process Meter (Voltage and Current) with excitation and analogue output. 230Vac powered

DP25B-E-230-AR
660.11
Availability: In Stock

Process Meter (Voltage and Current) with excitation, dual relays and analogue output. 230Vac powered
Ratiometric Bridge Input Meters

DP25B-S-230
420.74
Availability: In Stock

Bridge Input Meter (Ratiometric Voltage and Current) with excitation. 230Vac powered
Click to expand/minimize a list of what others bought with theDP25B-S
DP25B-S
420.74
Availability: 1 week

Bridge Input Meter (Ratiometric Voltage and Current) with excitation. 110Vac powered
Click to expand/minimize a list of what others bought with theDP25B-S-A
DP25B-S-A
544.04
Availability: 6 weeks

Bridge Input Meter (Ratiometric Voltage and Current) with excitation and analogue output. 115Vac powered

DP25B-S-230-A
544.04
Availability: 7 weeks

Bridge Input Meter (Ratiometric Voltage and Current) with excitation and analogue output. 230Vac powered
Click to expand/minimize a list of what others bought with theDP25B-S-AI-R
DP25B-S-AI-R
674.62
Availability: 7 weeks

Bridge Input Meter (Ratiometric Voltage and Current) with excitation, Isolated Analogue Output and Dual 5A Relays. 110Vac powered
All amounts shown in EUR
Note: Power Options are not field installable. All units come complete with a operator’s manual.
Ordering Example: (1) DP25B-S-230 4 Digit 1/8DIN panel meter for bridge input, €420.74

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) TYPE select from:
E for Process voltage and current inputs
S for Strain gauge bridge or process inputs

(2) Power Options select from:
for 115 Vac power leave blank
-230 for 230 Vac power
-DC10/32 for 10 to 32 Vdc power
-DC26/56 for 26 to 56 Vdc power

(3) Output Options select from:
for no options leave blank
-A for scaleable analogue output
-R for dual alarm relays
-AR for analogue and relay options
-AI-R for isolated analogue outputs and relay options
Note: All combinations may not be valid, check spec sheet for valid part numbers.

Product Manuals:

Download DP25-E and DP25B-E - 1/8 DIN Process Panel Meter
Download DP25-E and DP25B-E - Quick Start Manual for DP25-E Process Meter
Download DP25-S and DP25B-S - Strain Gage Panel Meter Full Manual
Download DP25-S and DP25B-S - Strain Gage Meter Quick Start Manual
