Heating Tapes with Adjustable Thermostat

HTWAT Series

Heating Tapes with Adjustable Thermostat | HTWAT Series

Heating Tapes with Adjustable Thermostat

185,48 HTWAT051-002

1 year warranty CE
  • Heating Tapes with Adjustable Thermostat Control Set Up to 218°C (425°F)
  • No Additional Control Needed
  • Moisture and Chemical Resistant
  • Suitable for Electrically Conductive Surfaces
  • Rapid Heat Up

Description

Click on this link if you need more information about Silicone heater elements or general information about industrial heater elements.

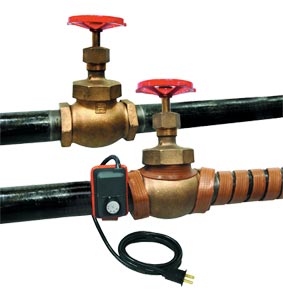

HTWAT Series silicone rubber heating tapes with adjustable thermostat control are designed for process temperature control, freeze protection, and supplemental heat. Applications include valves, pipe lines, bearings, filter housings, actuators and more. Wrap the flexible heating tape around the desired object you want to heat, set the temperature, and it will maintain heat at the set temperature.

SPECIFICATIONS
Adjustable thermostat: 10 to 218°C (50 to 425°F)
Maximum Exposure Temperature: 232°C (450°F)
Nominal Watt Density: 6.0 watts/in V (0.009 watts/mm V)
Minimum Bend Radius: 13 mm (0.5")
Outer Sheath: Extruded silicone rubber
Construction: Fibreglass knitted and braided
Power Cable: 1.8 m (6') with stripped ends
Power: 120 or 240 Vac
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
120V Versions, with stripped leads
HTWAT051-002
185.48
Availability: 11 weeks

120 Volts, 72 Watts, ½" x 2'
HTWAT051-004
193.00
Availability: 1 week

120 Volts, 144 Watts, ½" x 4'
HTWAT051-006
204.04
Availability: 11 weeks

120 Volts, 216 Watts, ½" x 6'
HTWAT051-008
216.40
Availability: 11 weeks

120 Volts, 288 Watts, ½" x 8'
HTWAT051-010
244.93
Availability: 6 weeks

120 Volts, 360 Watts, ½" x 10'
HTWAT101-002
185.48
Availability: 11 weeks

120 Volts, 144 Watts, 1" x 2'
HTWAT101-004
193.06
Availability: 11 weeks

120 Volts, 288 Watts, 1" x 4'
HTWAT101-006
211.60
Availability: 11 weeks

120 Volts, 432 Watts, 1" x 6'
HTWAT101-008
220.11
Availability: 11 weeks

120 Volts, 576 Watts, 1" x 8'
HTWAT101-010
244.93
Availability: 11 weeks

120 Volts, 720 Watts, 1" x 10'
HTWAT201-002
274.17
Availability: 11 weeks

120 Volts, 288 Watts, 2" x 2'
HTWAT201-004
293.03
Availability: 11 weeks

120 Volts, 576 Watts, 2" x 4'
HTWAT201-006
313.15
Availability: 11 weeks

120 Volts, 864 Watts, 2" x 6'
HTWAT201-008
320.69
Availability: 11 weeks

120 Volts, 1152 Watts, 2" x 8'
HTWAT201-010
339.57
Availability: 11 weeks

120 Volts, 1440 Watts, 2" x 10'
HTWAT301-002
306.87
Availability: 11 weeks

120 Volts, 432 Watts, 3" x 2'
HTWAT301-004
326.99
Availability: 11 weeks

120 Volts, 864 Watts, 3" x 4'
HTWAT301-006
345.84
Availability: 11 weeks

120 Volts, 1296 Watts, 3" x 6'
HTWAT301-008
358.42
Availability: 11 weeks

120 Volts, 1440 Watts, 3" x 8'
HTWAT301-010
377.13
Availability: 11 weeks

120 Volts, 1440* Watts, 3" x 10'
240V Versions, with stripped leads
HTWAT052-002
182.13
Availability: 11 weeks

240 Volts, 72 Watts, ½" x 2'
HTWAT052-004
194.27
Availability: 11 weeks

240 Volts, 144 Watts, ½" x 4'
HTWAT052-006
210.03
Availability: 11 weeks

240 Volts, 216 Watts, ½" x 6'
HTWAT052-008
220.98
Availability: 11 weeks

240 Volts, 288 Watts, ½" x 8'
HTWAT052-010
237.42
Availability: 11 weeks

240 Volts, 360 Watts, ½" x 10'
HTWAT102-002
188.66
Availability: 11 weeks

240 Volts, 144 Watts, 1" x 2'
HTWAT102-004
201.24
Availability: 11 weeks

240 Volts, 288 Watts, 1" x 4'
HTWAT102-006
210.03
Availability: 11 weeks

240 Volts, 432 Watts, 1" x 6'
HTWAT102-008
220.98
Availability: 11 weeks

240 Volts, 576 Watts, 1" x 8'
HTWAT102-010
233.13
Availability: 11 weeks

240 Volts, 720 Watts, 1" x 10'
HTWAT202-002
Consult Sales
Availability:


240 Volts, 288 Watts, 2" x 2'
HTWAT202-004
Consult Sales
Availability:


240 Volts, 576 Watts, 2" x 4'
HTWAT202-006
Consult Sales
Availability:


240 Volts, 864 Watts, 2" x 6'
HTWAT202-008
320.69
Availability: 11 weeks

240 Volts, 1152 Watts, 2" x 8'
HTWAT202-010
333.85
Availability: 11 weeks

240 Volts, 1440 Watts, 2" x 10'
HTWAT302-002
Consult Sales
Availability:


240 Volts, 432 Watts, 3" x 2'
HTWAT302-004
326.99
Availability: 11 weeks

240 Volts, 864 Watts, 3" x 4'
HTWAT302-006
345.84
Availability: 11 weeks

240 Volts, 1296 Watts, 3" x 6'
HTWAT302-008
Consult Sales
Availability:


240 Volts, 1440 Watts, 3" x 8'
HTWAT302-010
370.31
Availability: 11 weeks

240 Volts, 1440* Watts, 3" x 10'
All amounts shown in EUR
