Wireless Temperature Transmitter
Part of the NOMAD®Family
These products are not CE marked and use a frequency band which is not approved for use in Europe

OM-CP-RFTEMP101A

See All Models Below

PLACE ORDER

Multiple Transmitter Configurations
Automatically Converts Your PC into a Strip Chart Recorder
Real-Time Operation
Memory Wrap Around
Calibration Date Stored in Memory
Programmable Alarm

Description

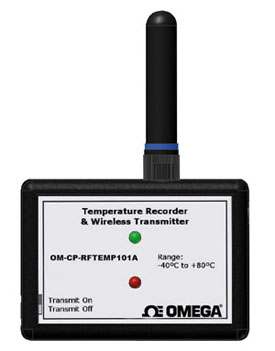

The OM-CP-RFTEMP101A is a miniature, wireless, battery powered, stand-alone, temperature transmitter. This all-in-one compact, portable, easy to use device that will measure and transmit temperature measurements. When enabled, the wireless transmitter will transmit readings back to the host computer where the data can be analyzed in real time. These readings are also logged to the device’s memory for added data security. The convenient slide switch allows the transmitter to be turned On or Off without affecting the operation of the device. The device can be started, stopped and configured directly from your computer. Its small size allows it to fit almost anywhere. In addition to the wireless communications, the OM-CP-RFTEMP101A makes data retrieval quick and easy. Simply plug the device into an available COM port and our user-friendly software will handle the rest. The OM-CP-RFTEMP101A is a major leap forward in both size and performance.

The Windows software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can also be exported to a text or Microsoft Excel file.

Specifications
Temperature Sensor: Semiconductor
Temperature Range: -30 to 70°C (-22 to 158°F)
Temperature Accuracy: 0.5°C (0 to 50°C)
Temperature Resolution: 0.1°C
Calibration: Digital calibration through software
Memory: 8191 readings
Reading Interval: 1 reading every 30
seconds to 1 every 12 hours
Data Format: Date and time stamped, °C, °F, °K, °R
Time Accuracy: ±1 minute/month (at 20 to 30°C)
Computer Interface: PC serial or RS-232C COM for receiver
(interface cable required) 57600 baud
Range: 36 m (120') feet line of sight
RF Baud Rate: 4800 baud
RF Carrier Frequency: 418 MHz
Power: 3.6 V lithium battery included
Battery Life: 1 year typical (1 minute reading rate @ 25°C)
Software: Windows 95/98/ME/NT/2000/XP
Operating Environment:
-30 to 70°C (-22 to 158°F)
5 to 95% RH non-condensing
Communication Frequency: 418 MHz Dimensions:
20 H x 42 W x 59 mm D
(0.8 x 1.7 x 2.3")
Weight: 60 g (2 oz)
Enclosure:
ABS plastic
These products are not CE marked and use a frequency band which is not approved for use in Europe

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

OM-CP-RFTEMP101A

Consult Sales

Availability:

Qty

Wireless temperature transmitter

OM-CP-RFC101A

Consult Sales

Availability:

Qty

Windows software and 4ft RS-232 cable with DB9F termination and receiving antenna

OM-CP-BAT105

€24.16

Availability: 2 weeks

Qty

Replacement 3.6 V lithium battery

† All amounts shown in EUR
Note: Operator's manual, RS-232 cable and receiving antenna are included with the OM-CP-RFC101 Windows software (software is required to operate datalogger and is sold separately).
These products are not CE marked and use a frequency band which is not approved for use in Europe

Product Manuals:

Download OM-CP Series - Data Logger and Software User Guide

Download OM-CP Series - Data Logger Quickstart Guide
