Accelerometer Power Supplies. AC Powered Single Channel and Triaxial - Not CE Certified

ACC-PS3A and ACC-PS4A

Accelerometer power supply

See All Models Below

PLACE ORDER

Low Cost
High Performance
For Single Channel and Triaxial Accelerometers

Dynamic Measurement - View related products

Description

The ACC Series Power supplies do not meet the CE regulations. They cannot be supplied in Europe.

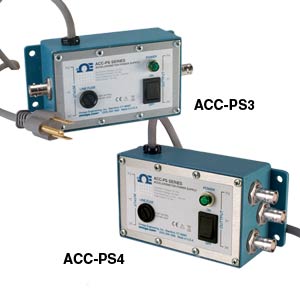

OMEGA’s ACC-PS3A is an AC-powered, single-channel, high-performance accelerometer power supply. This low-cost unit features low noise and a rugged aluminium housing with 4 easily accessible mounting holes on 121 x 44 mm centres.

The ACC-PS4A is an AC-powered, triaxial, high-performance power supply for use with the ACC301A 3-axis accelerometers. It outputs the signal from all 3 axis. Along with low noise, this mains powered supply features a rugged aluminium housing with 4 easily accessible mounting holes on 121 x 44 mm centres.

These models are updated versions of the former ACC-PS3 and ACC-PS4 units.

Model No.	ACC-PS3A	ACC-PS4A
Channels	1	3
Excitation Voltage	24 Vdc
Excitation Current	2 mA
Voltage Gain (±2%)	1x
Output Signal, FS Peak	10 Vdc
Noise, 0 to 10 Hz	0.2 mV rms
Input Power	115 or 230 Vac (specifiy)
Input Connector	BNC	4-pin female
Output Connector	BNC
Dimensions	135 x 43 x 66 mm
Weight	624 g

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

ACC-PS3A

Consult Sales

Availability:

single channel power supply, 115 Vac powered

ACC-PS3A-230VAC

Consult Sales

Availability:

single channel power supply, 230 Vac powered

ACC-PS4A

Consult Sales

Availability:

triaxial power supply for triaxial accelerometers, 115 Vac powered

Interface Cables

ACC-CB4-6

Consult Sales

Availability:

1.8 metre long coaxial cable, BNC-M to BNC-M

ACC-CB4-15

€95.28

Availability: 1 week

4.5 metre long coaxial cable, BNC-M to BNC-M

ACC-CB5-2

€85.04

Availability: 8 weeks

0.6 metre long coaxial cable, BNC-M to banana plug

ACC-CB6

€36.86

Availability: 1 week

180 mm long coaxial cable, BNC-M to pigtail leads

† All amounts shown in EUR
Note: To order without mounting feet, add suffix "-NMF" to model number, no additional charge.

Each unit comes complete with operator's manual.
