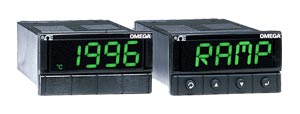

i-Series 1/32 DIN Programmable Strain/ Process Controllers and Meters with RS-232 & RS-485 Communications Featuring a Totally Programmable Color Display

CNiS32 & DPiS32 Series

1/32 DIN Programmable Strain/ Process Controllers and Meters | CNiS32 & DPiS32 Series

210,00 DPiS32

5 year warranty CE RoHS
  • High Quality
  • FREE 5-Year Warranty
  • High Accuracy 0.03% Rdg
  • User Friendly, Simple to Configure
  • Free Software, Active X Controls
  • Electronic Indicator and Controller Models Available
  • Peak and Gross Value Functions Accessable From the Front Panel
Instrumentation for Pressure and Strain Measurements - View related products

Description

*For our newest range of controllers with Modbus connectivity, expanded ramp and soak programs, universal inputs, and simple PC set-up, visit our Platinum Series.*

The iS32 series of meter/controllers can measure a wide variety of DC voltage and current outputs for all common load cells, pressure transducers, and most any strain gauge type of transducer. It is the first instrument of its kind, offering a wealth of powerful features and performance in an amazingly compact 1/32 DIN package. The iS32 handles input ranges of 0-100 mV, 0-1 V, 0-10 V, 0-20 mA (4-20 mA). The iS32 is easy to configure and scale to virtually any engineering units using the push buttons on the front panel, or using personal computer with the optional serial communications and free configuration software. The serial communications option includes both RS-232 and RS-485 on one instrument, and the straightforward OMEGA ASCII communications protocol. If Modbus is required, we recommend our latest Platinum controllers - CNPT Series.The iS32 includes built-in excitation for transducers, selectable as 10 V at 100 mA or 5 V at 60 mA. The iS32 features a choice of two optional outputs: Form C SPDT (single pole double throw) mechanical relays, solid state relays, DC pulse, and programmable analog output selectable for either a control function or retransmission of the process value. The iS32 features the iSeries totally programmable color display that can change colors between Green, Amber, and Red at any setpoint or alarm point.

SPECIFICATIONS
Input Ranges: 0-100 mV, 0-1 V, 0-10 V, 0-20 mA
Isolation: 354 V peak per IEC spacing
NMR: 60 dB
CMR: 120 dB
Input Impedance: 10 MOhms for 100 mV input, 1 MOhm for 1 or 10 V input, 5 Ohms for 20 mA current input
Display: 4 digits, 9 segments 10.2 mm (.4")
Analog-to-Digital technique: Dual slope
Internal A/D Resolution: 15 bits
Read rate: 3 / sec
Polarity: Automatic
Max Error Strain/Process: ±0.03% rdg.
Span tempco.: ± 50 ppm / C
Step response: 1-2 sec.
Warmup to rated accuracy: 30 min.
Analog Output (optional): 0-10 V, 4-20 mA, can be used as Retransmission or PID Control.
Excitation Voltage: 10 V @ 100 mA, 5 V @ 60 mA
(no excitation on models with "C24" or "DC" options)
Power: 90-240 Vac 50-400 Hz or 90-375 Vdc, 4 W (optional) 24 Vac 50-400 Hz or 12-36 Vdc, 5 W
Dimensions: 25.4 H x 48 W x 127 D mm (1.0 x 1.89 x 5.0")
Weight: 127 g (0.28 lb)
Approvals: CE per EN50081-1, EN50082-2, EN61010-1

For full product specifications view Specs pdf

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Digital panel indicators
Quick Ship
DPiS32
210.00
Availability: In Stock
RoHS compliancy undetermined
1/32 DIN i Series strain gauge meter with 90 - 240 Vac/dc power
Quick Ship
DPiS32-DC
234.00
Availability: 2 weeks
RoHS compliancy undetermined
1/32 DIN i Series strain gauge meter with 24 Vac or 12-36 Vdc power
Quick Ship
DPiS32-C24
273.00
Availability: 2 weeks
RoHS compliancy undetermined
1/32 DIN i Series strain gauge meter with RS-232 & RS-485 communications and 90 - 240 Vac/dc power
Quick Ship
DPiS32-C24-DC
Consult Sales
Availability:

RoHS compliancy undetermined
1/32 DIN i Series strain gauge meter with RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power
Indicators with Alarm and/or control outputs
Quick Ship
CNIS3253
259.00
Availability: 2 weeks
RoHS compliant
1/32 DIN i Series strain gauge controller with one analogue output and one Form "C" mechanical relay. 90 - 240 Vac/dc power
Quick Ship
CNiS3233
259.00
Availability: 2 weeks
RoHS compliant
1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays and 90 - 240 Vac/dc power
Quick Ship
CNiS3222
254.00
Availability: 2 weeks
RoHS compliant
1/32 DIN i Series strain gauge controller with two solid state relays and 90 - 240 Vac/dc power
Quick Ship
CNiS3222-C24
Consult Sales
Availability:

RoHS compliant
1/32 DIN i Series strain gauge controller with two solid state relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power
Quick Ship
CNiS3222-C24-DC
Consult Sales
Availability:

RoHS compliant
1/32 DIN i Series strain gauge controller with two solid state relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power
Quick Ship
CNiS3233-C24
324.00
Availability: 2 weeks
RoHS compliant
1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 90 - 240 Vac/dc power
Quick Ship
CNiS3233-C24-DC
Consult Sales
Availability:

RoHS compliant
1/32 DIN i Series strain gauge controller with two Form "C" mechanical relays, RS-232 & RS-485 communications and 24 Vac or 12-36 Vdc power
All amounts shown in EUR
Note: Transducer excitation not available on models with serial communications ("-C24") option.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Control Outputs #1 select from:
2 for Solid State Relay/1 A at 120/240 Vac continuous
3 for SPDT Relay
4 for Pulsed 10 Vdc at 20 mA
5 for Analogue Output 0 to 10 Vdc or 4-20 mA

(2) Control Outputs #2 select from:
2 for Solid State Relay/1 A at 120/240 Vac continuous
3 for Relay SPDT 3A at 120/3 A at 240 Vac
4 for Pulsed Driver 10 Vdc at 20 mA /for use with external SSR

(3) Serial Communications select from:
Nothing(leave field blank) for Standard Unit
-C24 for Isolated RS-232 and RS-485 300 to 19.2 k baud

(4) Power Supply select from:
Nothing(leave field blank) for Standard Power (90 to 240 Vac/dc @ 50 to 400 Hz)
-DC for Low Voltage Power (24 Vac or 12 to 36 Vdc)
Note: All combinations may not be valid, check spec sheet for valid part numbers.
