Advanced Digital Force Gauges

DFG55 Series

Advanced Digital Force Gauges | DFG55 Series

Advanced Digital Force Gauges

1.742,09 DFG55-10

3 year warranty CE
  • Digital Force Gauges with high Speed 7000 Hz Sample Rate
  • 5 Selectable Units of Measurement
  • USB, RS232, Mitutoyo, and Analogue Outputs Standard
  • Large Backlit Graphic Display with Bar Graph
  • 1000 Point Data Memory
  • Programmable Setpoints with Audible Alarms and Outputs
  • Peak Readings and Setpoints Always Displayed
  • Averaging Mode Calculates Average Reading Over Time
Load Cells, Force Sensors and Torque Transducers - View related products

Description

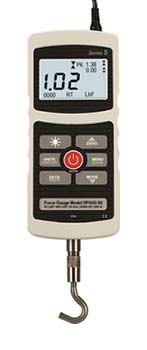

OMEGA’s DFG55 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry. With capacities from 0.12 to 100 lb (0.5 to 445 N) the gauges feature an industry-leading sampling rate of 7000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000.

A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The DFG55’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate.

SPECIFICATIONS
Accuracy: ±0.1% of full scale ±1 digit
Power: AC or NiMH rechargeable battery (included)
Battery Life: Up to 7 hours continuous with back-light on; up to 24 hours with back-light off
Low Battery: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Measurement Units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Safe Overload: 150% of full scale (display shows “OVLD” at 110% and above)
Full Scale Deflection: 0.25 mm (0.01") except DFG55-0.12, 0.13 mm (0.05")
Analog Output: ±1 Vdc, ±0.25% FS
USB/RS232 Output: Configurable up to 115,200 baud; includes Gauge Control Language 2 for full computer control
Setpoint Outputs: Three open drain lines
Dimensions: 149.4 H x 64.3 W x 33.6 mm D
Weight: 0.45 kg

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Models with AC adapter for UK
DFG55-0.12-U
1,980.74
Availability: 5 weeks

Digital force gauge with 0.5 N range
DFG55-0.25-U
1,821.64
Availability: 5 weeks

Digital force gauge with 1 N range
DFG55-0.5-U
1,752.00
Availability: 5 weeks

Digital force gauge with 2.2 N range
DFG55-2-U
1,523.00
Availability: 5 weeks

Digital force gauge with 9 N range
DFG55-5-U
1,742.09
Availability: 5 weeks

Digital force gauge with 22 N range
DFG55-10-U
1,742.09
Availability: 5 weeks

Digital force gauge with 44 N range
DFG55-20-U
1,676.00
Availability: 5 weeks

Digital force gauge with 89 N range
DFG55-50-U
1,523.00
Availability: 5 weeks

Digital force gauge with 222 N range
DFG55-100-U
1,676.00
Availability: 5 weeks

Digital force gauge with 445 N range
DFG55-500-U
€1,752.00
Availability: 5 weeks

Digital force gauge with 2500 N range, 500lbf
Models with AC adapter for Europe
DFG55-0.12-E
1,671.17
Availability: 5 weeks

Digital force gauge with 0.5 N range
DFG55-0.25-E
1,752.00
Availability: 5 weeks

Digital force gauge with 1 N range
DFG55-0.5-E
1,752.00
Availability: 5 weeks

Digital force gauge with 2.2 N range
DFG55-2-E
1,452.23
Availability: 5 weeks

Digital force gauge with 9 N range
DFG55-5-E
1,523.00
Availability: 5 weeks

Digital force gauge with 22 N range
DFG55-10-E
1,523.00
Availability: 5 weeks

Digital force gauge with 44 N range
DFG55-20-E
1,583.00
Availability: 5 weeks

Digital force gauge with 89 N range
DFG55-50-E
1,649.39
Availability: 5 weeks

Digital force gauge with 222 N range
DFG55-100-E
1,742.09
Availability: 5 weeks

Digital force gauge with 445 N range
All amounts shown in EUR
Note: Comes complete with carrying case, AC adaptor, extension rod, cone, chisel, V-groove, flat, hook, coupling, certificate of calibration, USB cable and CD with USB drivers and operator’s manual.
Ordering Example: (1) DFG55-20-U 90 Newtons digital force gauge with UK style AC adapter, €1,676.00
