Ratemeters, Totalizers and Batch Controllers for Frequency Inputs

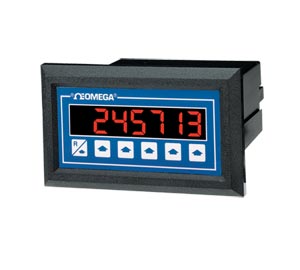

DPF75

^€366,05 DPF75

PLACE ORDER

Front Panel Programming and Scaling
Rate and Total in One Unit
Remote or Front Panel Reset
Optional Analog Output for Rate or Total
NEMA-4X Front Panel

Instrumentation for Pressure and Strain Measurements - View related products

Description

The DPF75 is a combination 6-digit totalizer/batch controller and 5½ digit ratemeter with 2 relays. The user can set one relay for batch and the other for rate alarm. The totalizer and ratemeter display in the same engineering units: units per second, minute, or hour. The DPF75 can accept 2 inputs and separately scale them for "A - B" or "A + B". Either input A rate or net total can be displayed.

The DPF76 is a 6-digit scalable totalizer/batch controller with 2 relays for 2-stage batch control. The DPF78 is a 4½ digit scalable ratemeter with 2 alarm relays.

SPECIFICATIONS
Input Power: 110 Vac ±15%, 220 Vac ±15%, 6.5 VA at rated AC voltage
Output Power (AC-Powered Units Only): +12 Vdc @ 50 mA unregulated— 10 + 50%
Rate Accuracy: ±0.1% of rdg + 1 LSD
K Factor: Up to 5-digits
Temperature:
Operating: 0 to 54°C (32 to 129°F)
Storage: -40 to 93°C (-40 to 199°F)
Memory: EEPROM stores data for 10 years if power lost
Pulse Input: Low = 0 to 1 Vdc; high = 4 to 30 Vdc; 10 kΩ impedance, up to 10 kHz; min 0.05 Hz for rate indication
Option "-LL": 30 mV min to 50V max p-p input, 10 kΩ impedance, 5 kHz max
Relays: Rated 5 A @ 240 Vac or 28 Vdc; SPST, selectable for NO or NC; relays latch or auto-recycle after 0.1 to 99.9 s
Panel Cutout: 4.5 H x 9.2 cm W (1.772 x 3.622"); DIN standard, 10.3 cm (4.06") depth
Shipping Weight: 907 g (2 lb)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

DPF75

€366,05

Availability: 7 weeks

Ratemeter and batch controller with 2 separate 10 A SPST relays for rate alarm or batching

DPF75-A

€531,89

Availability: 7 weeks

Ratemeter and batch controller with 2 separate 10 A SPST relays for rate alarm or batching and 4-20 mA analog output

DPF75-RS232

€545,68

Availability: 1 week

Ratemeter and batch controller with 2 separate 10 A SPST relays for rate alarm or batching and RS232 communications

DPF75-RS422

€545,68

Availability: 7 weeks

Ratemeter and batch controller with 2 separate 10 A SPST relays for rate alarm or batching and RS422 communications

DPF76

€320,31

Availability: 7 weeks

Scalable totalizer/batch controller with relays

DPF78

€338,10

Availability: 7 weeks

Scalable ratemeter with 2 separate 10 A SPST alarms

DPF78-A

€516,04

Availability: 7 weeks

Scalable ratemeter with 2 separate 10 A SPST alarms and 4-20 mA analog output

FLSC-AMP

€106,98

Availability: 6 weeks

Amplifier for amplifying low-level turbine and paddlewheel sensor inputs

† All amounts shown in EUR
Note: For 220 Vac power, add suffix “-220 Vac” to part number No charge. For RS-232 or RS-422 output, add suffix “-RS232” or “RS-422” and add $128 to price. Example: DPF75-RS232 is a ratemeter/batch controller with RS-232 output. Price: $406. For field-selectable 4-20 or 0-20 mA output, add suffix “-A” to part number, and add $131 to price. -A option is not available on models with RS232 or RS422 option.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
