Deadweight Tester, 0.1% Accuracy, 15 to 10,000 psi Range

DWT1305

^€7.408,00 DWT1305D-10

PLACE ORDER

Easy-to-Use Two-Stage Hydraulic Pump
Two Interchangeable Piston/Cylinder Assemblies
Vernier Screw Adjustment for Pressure Settings
Portable, Rugged Carrying Case Provided

Instrumentation for Pressure and Strain Measurements - View related products

Description

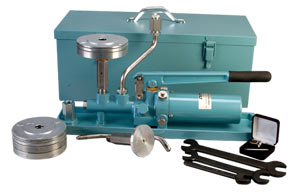

Model DWT1305 Deadweight Testers are dual range, precision built hydraulic instruments for testing, setting, calibrating or repairing pressure measuring devices. Each instrument is self-contained and comes complete with tools and metal carrying case.

With the "-CAL-3" calibration option, the DWT1305 can by a primary standard with 0.1% accuracy of the pressure produced. Each unit is adjusted for standard gravity conditions, all weights are labeled and a NIST traceable certificate with no data points is supplied.

Specifications
Accuracy: 0.1% of produced pressure
Operating Pressure: 15 psi to 10,000 psi max. (100 kPa to 70,000 kPa)
Body Material: Aluminium Alloy
Piston and Cylinder Material: Stainless Steel
Weights: Nonmagnetic die-cast zinc alloy, NBS traceable
Operating Fluid: SAE 20 Automotive or Machine Oil
O-Rings: Standard Buna-N
Reservoir Volume: Approximately 1.5 pints (0.7 litre)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

DWT1305D-10

€7.408,00

Availability: 9 weeks

Deadweight tester with range from 15 to 1,000 psig

DWT1305D-20

€7.757,00

Availability: 9 weeks

Deadweight tester with range from 15 to 2,000 psig

DWT1305D-30

€7.948,00

Availability: 9 weeks

Deadweight tester with range from 15 to 3,000 psig

DWT1305D-50

€8.263,00

Availability: 9 weeks

Deadweight tester with range from 15 to 5,000 psig

DWT1305D-100

€10.472,12

Availability: 9 weeks

Deadweight tester with range from 15 to 10,000 psig

DWT1305D-10-CAL-3

€7.640,00

Availability: 9 weeks

Deadweight tester with range from 15 to 1,000 psig with NIST traceable calibration certificate with no data points

DWT1305D-20-CAL-3

€7.980,00

Availability: 9 weeks

Deadweight tester with range from 15 to 2,000 psig with NIST traceable calibration certificate with no data points

DWT1305D-30-CAL-3

€8.179,00

Availability: 9 weeks

Deadweight tester with range from 15 to 3,000 psig with NIST traceable calibration certificate with no data points

DWT1305D-50-CAL-3

€8.447,00

Availability: 9 weeks

Deadweight tester with range from 15 to 5,000 psig with NIST traceable calibration certificate with no data points

DWT1305D-100-CAL-3

€10.709,93

Availability: 9 weeks

Deadweight tester with range from 15 to 10,000 psig with NIST traceable calibration certificate with no data points

† All amounts shown in EUR
Note: Each unit Includes: hydraulic pump, weight set, two piston/cylinder assemblies, three wrenches, spare O-rings, piping and fittings, rugged carrying case and complete operator’s manual.
Ordering Example: (1) DWT1305D-100-CAL-3 Deadweight tester with range from 15 to 10,000 psig with NIST traceable calibration certificate with no data points., €10.709,93
