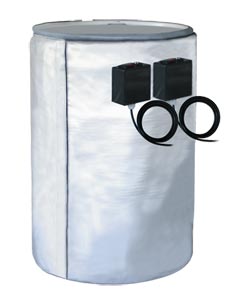

Dual Zone Drum Heater

FCDDH-3200-240

^€1.801,00 FCDDH-3200-240

PLACE ORDER

Easy-to-Use Digital Temperature Controller with Audible/Visual Alarm
Large Heater Coverage and High Wattages for Fast Heat-Up
High Wattage 3200W (1600W Per Zone)
25 mm Fibreglass Insulation
Designed for Metal Drums

Description

Omegalux® full-coverage drum heaters are designed to wrap around a drum and heat the contents while insulating to keep the heat exactly where it needs to be. Full-coverage drum heaters combine the convenience of quick heat-up time and the precision of a digital controller to provide the most practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. The dual zone drum heater provides a fully heated area with independent temperature control for each zone. It is designed to quickly melt heavy solids like molasses, syrups, etc.

SPECIFICATIONS
Digital On/Off Temperature Controller: 10 to 232°C (50 to 450°F) for metal drums
Heated Area: Fully heated
Wattage: 3200W (1600W per zone)
Max Exposure Temperature: 260°C (500°F)
Outer Sheath: Silicone-coated fibreglass facing
Inner Sheath: Silicone-coated fibreglass liner
Insulation: 25 mm fibreglass
Dielectric Strength: Over 2000V
Power Cable: 1.8 m with stripped lead ends
Power: 240 Vac (earthed heating element meets NEC 427.23)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

FCDDH-3200-240

€1.801,00

Availability: 10 weeks

Dual zone drum heater

Accessories

FCDG-TOP

€123.41

Availability: 10 weeks

Drum top cover

FCDH-STRIP

€91.90

Availability: 8 weeks

6" wide strip that expands heater to fit up to a 24.2" diameter drum. Strip is necessary for heater to fit around drums with removable lids.

† All amounts shown in EUR
Note: All drum heaters are for 55 US gallon size and come with two digital temperature controllers. For "Rolling Drums" with removable tops the standard full coverage drum heater may not completely wrap around the drum. For these drums with diameters larger than the standard 22.6" an expander strip may be purchased.
