High Temperature Modular Hopper Heaters

FSRM Series

High Temperature Modular Hopper Heaters | FSRM Series

High Temperature Modular Hopper Heaters

See All Models Below

RoHS
  • INCOLOY® Sheath
  • 225 to 2600 Watts
  • 240 and 480 Volt
  • 3 to 15 W/in2
  • Up to 400°C (750°F) and Above Hopper Temperatures
  • Custom Built to Fit Requirements

Description

Find how Industrial Heaters work on this link.

ADVANTAGES
Made-to-order to your hopper specifications. Low watt density design ensures long life while providing operating temperatures of 121 to 177°C (250 to 350°F) or higher. Heaters can withstand upset conditions where temperatures in the hopper may be as high as 649°C (1200°F).

FEATURES
Manufactured from formed 9.5 mm (0.375") diameter INCOLOY® sheathed tubular low watt density elements for long life. Equipped with 15 cm (6"), 16 gauge nickel plated copper lead wire with mica type high tem per a ture insulation rated 450°C (842°F) for easy connection. Shock and vibration resistant design. Modules are fire resistant and not affected by internal hopper fires.

CONSTRUCTION

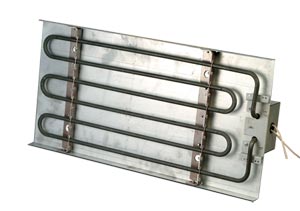

9.5 mm (0.375") Tubular Heating Elements are ser pen tine bent and mounted on a steel angle frame support with a backup aluminized steel sheet metal reflective encasement.
When installed on the sides of the hopper and insulated, they provide a blanket heat coverage effect.

OPTIONS
  • Special Voltages
  • Wattage
  • Sizes
  • Shapes
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Quick Ship
FSRM-0612/225W/240V
Consult Sales
Availability:

RoHS compliant
225W 240V
Quick Ship
FSRM-0612/450W/240V
Consult Sales
Availability:

RoHS compliant
450W 240V
Quick Ship
FSRM-1212/550W/480V
Consult Sales
Availability:

RoHS compliant
550W 480V
Quick Ship
FSRM-1212/450W/240V
Consult Sales
Availability:

RoHS compliant
450W 240V
Quick Ship
FSRM-1212/900W/480V
Consult Sales
Availability:

RoHS compliant
900W 480V
Quick Ship
FSRM-1218/650W/480V
Consult Sales
Availability:

RoHS compliant
650W 480V
Quick Ship
FSRM-1218/1300W/480V
Consult Sales
Availability:

RoHS compliant
1300W 480V
Quick Ship
FSRM-1818/1000W/480V
Consult Sales
Availability:

RoHS compliant
1000W 480V
Quick Ship
FSRM-1818/2000W/480V
Consult Sales
Availability:

RoHS compliant
2000W 480V
Quick Ship
FSRM-1224/875W/480V
Consult Sales
Availability:

RoHS compliant
875W 480V
Quick Ship
FSRM-1224/1750W/480V
Consult Sales
Availability:

RoHS compliant
1750W 480V
Quick Ship
FSRM-1248/2600W/480V
Consult Sales
Availability:

RoHS compliant
2600W 480V
All amounts shown in EUR
