Expandable multichannel Data Acquisition System

iNET-400

multi-channel Data Acquisition

^€2.232,89 iNET-555

PLACE ORDER

Multichannel data acquisition system expandable to over 1000 Channels
Directly Connects to Thermocouple, RTD, Thermistor, Strain Gage, Load Cell, Voltage, Current, Resistance and Accelerometer Inputs
Analogue and Digital Input and Outputs
Free instruNet World Software
USB 2.0 High Speed Data Acquisition Hardware and Software, Compatible with Windows ≥ XP SP3 computers, 32-bit or 64-bit
Reduce Noise by Placing Boxes Near Sensors and up to 300 metres From Noisy Computer
Digitize Any Combination of Channels at 166,000 Samples Per Second Aggregate
Each Channel has Independently Programmable Analog Filters, Integration Time, Voltage Range, and Sample Rate; Programmable Digital Filters on All Channels (LP, HP, BP, BS)

USB, RS232, RS485 and Ethernet Data Acquisition Systems - View related products

Description

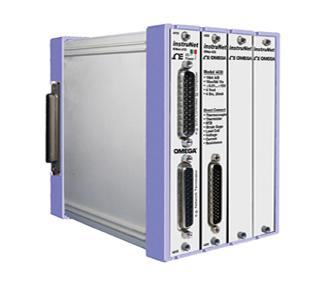

The iNET-400 system is a low cost card cage that attaches to Windows computers via USB 2.0.
The advantage of a card cage is that you can select which I/O modules to install as needed to build a customized system. The instruNet card cage typically has one A/D measurement module and additional modules provide signal conditioning. The conditioned analog signal is routed to the A/D module via the backplane. This is dramatically different from comparable systems which place A/D measurement electronics on each module.

The advantage of the iNET-400 topology is cost. After the 1st module is installed, additional iNET-400 channels are conditioned at a very low cost per channel. iNET-400 measurement modules have universal inputs that enable one to directly connect each channel to one of: thermocouple, thermistor, strain gage, load cell, counter/timer, RTD, voltage, current, resistance and accelerometer. Absolute accuracy for all of these sensor types is specified. In some cases, the end user adds an external shunt resistor. The advantage of universal inputs is cost.

Low Cost 4/8/12/16-Slot Card Cages
The iNET-400 card cage provides 4 slots, and multiple iNET-400’s can be bolted together by the end user, side-by-side, to create an 8, 12, or 16 slot system. In many applications, one iNET-400 with 4 slots is sufficient.

The iNET-400 card cage is 15 D x 11 W x 14 cm H (6 x 4.5 x 5.6") in size. The slots are numbered such that #1 is the left-most slot, #2 is to the right of #1, and so forth and so on. Cards are held into position with jackscrews that are tightened with a slotted screwdriver. Slot #1 is a special slot and is used to interface to a computer.

The iNET-410 card slides into slot #1 and then cables to the computer via a DB25 cable that connects to an instruNet controller. Also, an iNET-300 Power Adaptor cable is used to route power from an
iNET-312-8 desktop power supply to the iNET-410 interface card in slot #1, which in turn routes that power to the card cage backplane (i.e. pcb at back of card cage that attaches to all cards). See PDF attached for illustrated diagram.

The iNET-400 Card Cage needs at least one iNET-430 A/D card if analog voltages are to be measured. The iNET-430 cards includes an A/D converter and serves this purpose. The iNET-420 and iNET-423 cards contain various signal conditioning circuits and route signals along the backplane to the iNET-430 for measurement. This happens automatically and does not require programmer intervention, other than insertion of cards and attaching end user signals to the card’s front panel connectors.

iNET-240 instruNet DSP Card
Each instruNet Network is controlled by an instruNet DSP controller card that attaches to a Microsoft Windows computer. The iNET-240 attaches to a free USB 2.0 high speed port (requires Windows ≥ XP Sp2). Each Controller is an independent computer in itself that utilizes a powerful 32-bit DSP processor and onboard RAM to control all aspects of data acquisition along its network. All real-time tasks are off-loaded to this processor, therefore the host computer is not burdened with real-time issues. Between 1 and 4 controllers can be installed, space permitting, since each controller operates independently.

Connect up to 8 iNET-400 Card Cages
Each instruNet network supports up to 8 instruNet iNET-400 card cages.

instruNet Network
These devices are connected in a daisy-chain configuration to form a chain of Devices. Each network can be up to 300 meters long. All networks are anchored with an instruNet Terminator at the far end, and an instruNet Controller at the near end. This makes instruNet a cost effective method for designing large scale, high speed, multi-channel data acquisition systems.

InstruNet Version ≥ 3.0 software is compatible with Windows ≥ XP SP3, 32-bit or 64-bit.

iNET-410 Communications Card
The iNET-410 communications card connects an iNET-400 card cage to a Windows computer via an instruNET iNET-240 USB controller. The iNET-410 plugs into the left-most slot (slot #1) of an iNET-400 card cage. One and only one iNET-410 is required per iNET-400 card cage when working with instruNet controllers. The iNET-410 provides the following features:
• Two DB25 connectors allow daisy-chaining multiple iNET-400 card cage devices to one instruNet controller card.
• Front panel red power light shows presence of 5V, 12V and -12V power.
• Front panel green I/O light blinks when computer communicates with card cage.
• Includes one DB25 male to female 3 m (10') cable.

iNET-420 Analog I/O Module
The iNET-420 provides 20 single-ended (SE)/10 differential (DI) voltage input channels and 4 universal digital I/O (20 mA sink, -10V to 30V) and requires the iNET-430 A/D module to measure voltages. The iNET- 420 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs.

iNET-423 Analog I/O Module
The iNET-423 provides 6 differential (DI) voltage input channels, 4 universal digital I/O (20 mA sink,
-10 to 30V) and requires the iNET-430 A/D module to measure voltages. The iNET-423 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs. Each input channel passes through it’s own amplifier with a software selectable gain of 1 or 64 and optional low pass filter. The 8-pole iNET-500 analog low pass Butterworth filter daughter board is ideal for anti-aliasing. Between one and six filter daughter boards can be installed onto each iNET-423 card (one per channel). There are four different analog low pass filters, each with a different cut off frequency: iNET-500-380HZ, iNET-500-1KHZ, iNET-500-3300HZ and iNET-500-10KHZ.

iNET-430 A/D Module
The iNET-430 provides 16 single-ended (SE)/8 differential (DI) voltage input channels with a 16-bit A/D converter, 2 precision analog voltage outputs (±10V, 14-bit D/A), 2 analog voltage outputs (0 to 10 V output, 8-bit D/A) and 4 universal digital I/O (20 mA sink, -10 to 30 V). The iNET-430 connects directly to voltage, thermocouple, thermistor, RTD, load cell, strain gage, potentiometer, current and resistance inputs.

iNET-460 Digital I/O Module
The iNET-460 provides 12 universal digital I/O (20 mA sink, -10 to 30 V)
and 16 digital I/O (200 mA sink, -10 to 30 V).

NET-400 cards are installed by the end user into an instruNET card cage that is 4, 8, 12 or 16 slots wide. Each card is 13 x 2.5 x 13 cm (5.1 x 1.0 x 5.1") in size. Below is a list of available cards.

Model No.	Voltage Input			Voltage Outputs		Digital I/O
Model No.	Number of Channels	Range	Low Pass (KHz)	Number of Channels	Range	Number of Channels	mA Sink
iNET-420	20SE/10DI	±10V.. ±20mV				4	20
iNET-423	6DI	±5V.. ±5mV	0.006,4			4	20
iNET-430	16SE/8DI	±10V.. ±10mV		2 2	±10V.. 0-10V	4	20
iNET-460						12 16	20 200
iNET-410	The iNET-410 connects card cage to windows computer via an instruNet controller.

The following table shows maximum aggregate sample rates for an iNET-240 USB controller attached to an iNET-400 card cage. To calculate the sample rate for each channel, divide by the number of channels attached to the iNET-240 controller. For example, if the maximum aggregate sample rate is 166K samples/sec/controller, and you digitize 4 channels, then you could digitize each channel at 41Ks/sec/channel. Up to four iNET-240 controllers can be attached to a computer to increase total system throughput.

Max Aggregate Sample Rate per Controller (K samples/sec/controller)
Model No.	±10V Range	±5V Range	±1.2V Range	±10mV.. ±80mV Range
iNET-430	166	166	129	1.4
iNET-420	94	90	83	1.4
iNET-423		113	98	68

Sensor Connection Table
The table below shows which sensors directly connect to each hardware product. The numbers in the table refer to number of channels. The following sensors require an external shunt resistor: RTD, thermistor, resistance measurement, current measurement, 1/4 bridge strain gage, and 1/2 bridge strain gage. Thermocouple sensors require an iNET-510 Wiring Box attached to the iNET-400 card.

Model No.	Voltage	Current	Resistance	Thermistor	RTD	T/C	Load Cell	Accelerometer	Strain Gage
iNET-420	20SE/10DI	10	10	10	10	10	10	–	10
iNET-423	6DI	6	6	6	6	6	6	6	6
iNET-430	16SE/8DI	8	8	8	8	8	8	–	8

SPECIFICATIONS
iNET-400
No. of Slots: Each iNET-400 supports up to four cards. Multiple iNET-400's
can be bolted together side-by-side to create an 8, 12, or 16 slot system
Material: Solid aluminum construction
Dimensions: 15 D x 11 W x 14 cm H (6 x 4.5 x 5.6")
Mounting: Place on desktop, affix to DIN rail, 19" rack, or wall mount

ANALOG INPUTS
No. of Channels:
iNET-420: 20 single-ended (SE)/10 differential (DI)
iNET-423: 6 differential (DI)
iNET-430: 16 single-ended (SE)/8 differential (DI)
A/D Converter: 16-bit (iNET-430 only)
Voltage: See voltage accuracy/range charts (on PDF)
Thermocouple: J/K/T/E/R/S/B/N/C/G/D
Thermistor: 2252 Ω (OMEGA 44000 Series)
RTD: 100 Ω , 500 Ω , 1 kΩ platinum
Load Cell: 10 kg, 25 kg, 100 kg, 250 kg, 1000 kg, 5000 kg
Strain: 350 Ω (1/4 bridge, half bridge or full bridge), 1 kΩ (1/4 bridge)
Potentiometer: 10 kΩ , 50 kΩ
Current: ±80 uA, ±120 uA, ±500 uA, ±600 uA, ±800 uA, ±1.2 mA, ±2.5 mA,
±12 mA, ±24 mA, 0 to 24 mA
Resistance: 0 to 33 Ω, 0 to 100 Ω, 0 to 330 Ω, 0 to 1 kΩ, 0 to 3300 Ω, 0 to 10 kΩ
Common Mode Voltage: ±10 Vdc (iNET-420 and iNET-430), ±5 Vdc (iNET-423)
Crosstalk: <-80 dB typical
Input Impedance: 100 MΩ

iNET-430 PRECISION ANALOG
VOLTAGE OUTPUTS
No. of Channels: 2
Resolution: 14-bit
Range: ±10.1V
Output Current Drive: ±4 mA

iNET-430 ANALOG
VOLTAGE OUTPUTS
No. of Channels: 2
Resolution: 8-bit
Range: 0 to 10.1V
Output Current Drive: ±4 mA

DIGITAL I/O
(iNET-420/423/430)
No. of Channels: 4 universal digital I/O (20 mA sink, -10 to 30V)
Working Voltage: -10 to 30 Vdc
"0" Input Voltage: -10 to 0.65V
"0" Input Current: Amps = (4.5V - Vin)/3900
"1" Input Voltage: 2.1 to 30 Vdc
"1" Input Current: <1.4 mA
"0" Output Voltage: <0.8V @ < 5 mA; < 2V @ <20 mA
"1" Output Voltage: 3.9 to 4.5V
"1" Output Current: See "1" input current
Pull-Up Resistor: 3.9 kΩ ±10%
Schmitt Trigger Input: Yes

ENVIRONMENTAL
Operating Environment: 1 to 45°C (34 to 113°F), <90% RH
Storage Temperature: -20 to 70°C (-4 to 158°F)

POWER
Required: +5 Vdc, ±12 Vdc required (supplied by iNET-312-8)
User Available: 3.3 Vdc, 5 Vdc, ±12 Vdc

For user manuals and application notes visit the instrunet web site.

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.

Qty

Description

Starter System, Includes the Following Products: iNET-240, iNET-430, iNET-510, iNET-400, iNET-410, iNET-312-8

iNET-555-EU

€2,153.00

Availability: In Stock

Starter system, UK/European plug

iNET-555

€2,232.89

Availability: 1 week

Starter system, USA plug

iNET-400 Cards

iNET-410

€455.51

Availability: 1 week

Interface between iNET-240 contoller and iNET-400 card cage

iNET-420

€649.65

Availability: In Stock

20SE/10DI voltage input, multiplexer, 4 digital I/O

iNET-423

€952.54

Availability: 1 week

6DI voltage input, amplifier, filter, 4 digital I/O

iNET-430

€918.47

Availability: 1 week

16-bit A/D, 16SE/8DI voltage input, multiplexer, 4 voltage out, 4 DIO

iNET-460

€627.29

Availability: 6 weeks

28 digital I/O channels

iNET-400 Card Cage

iNET-400

€761.66

Availability: 1 week

Card cage for iNET-410/420/423/430/460 cards, 4 slots, expandable

Accessories

iNET-380

€287.18

Availability: 1 week

LabVIEW drivers (LabVIEW versions ≥4 currently supported on Windows ≥XP)

iNET-510

€139.67

Availability: 1 week

Wiring box with screw terminals

iNET-511

€267.88

Availability: 1 week

Wiring box with BNC connectors

iNET-512

€233.01

Availability: In Stock

Strain gage/sensor wiring box with screw terminals (not for thermocouples - use iNET-510 for thermocouple measurement)

iNET-HD44MF-3M

€104.80

Availability: 6 weeks

Cable, Hd44m to Hd44f, 26 Awg, 3 m (10')

iNET-330

€638.90

Availability: 6 weeks

Optical isolator between iNET-240 controller and device

iNET-530

€179.68

Availability: 1 week

Wall and DIN rail mounting kit for one iNET-400 card cage

InstruNet Controller

iNET-240

€604.86

Availability: 6 weeks

instruNet network terminator and intruNet World software on CD (requires iNET-312-8 power supply).

Power Supplies

iNET-312-8

€270.97

Availability: 1 week

Power supply, USA Plug, 110/220 Vac, (includes iNET-300 power adaptor)

iNET-312-8EU

€262.89

Availability: 1 week

Power supply, UK/European plug, 110/230 Vac, (includes iNET-300 power adaptor)

iNET-300

€114.43

Availability: 1 week

Power adaptor

Software

iNET-iWPLUS

€423.11

Availability: 1 week

InstruNet World Plus software (iW+)

Shunt Resistors

iNET-R-33

€136.01

Availability: 1 week

iNET-R-33 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-120

€128.58

Availability: 1 week

120 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-350

€128.58

Availability: 1 week

350 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-1K

€128.58

Availability: 1 week

1000 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-3300

€128.58

Availability: 6 weeks

3300 Ω, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-10K

€128.58

Availability: 1 week

10 kΩ, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-10K

€128.58

Availability: 1 week

10 kΩ, 8-pack, 0.05%, 5 ppm/°C drift

iNET-R-33K

€128.58

Availability: 6 weeks

33 kΩ, 8-pack, 0.05%, 5 ppm/°C drift

† All amounts shown in EUR
Note: Comes complete with CD, including instruNet World Software and user manual.
Ordering Example: (1) INET-555-EU Starter system, with 230Vac Power supply (including iNET-240, iNET-430, iNET-510, iNET-400, iNET-410 and iNET-312-8), €2,153.00
