High Accuracy I/P Transducer Electronic Air Pressure Control

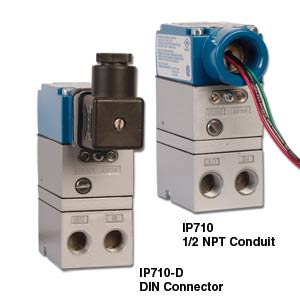

IP710 Series

 | IP710 Series

681,56 IP710-X15

CE
  • CE Compliant

  • High Accuracy 0.1% of Span
  • NEMA-4X (IP-65) Enclosure
  • 4 to 20 mA Loop Powered
  • Conduit or DIN Connector Wiring
  • Wall, Panel or Pipe Mounting Standard
  • Optional DIN Rail Mounting Kit
  • Input/Output Ports on Front and Back
  • External Zero and Span Adjustments
Valves, Regulators and I/P Converters - View related products

Description

The IP710 series l/P transducers are a series of compact high accuracy electronic pressure regulators that convert a 4 to 20 mA signal to a proportional pneumatic output. Utilizing internal solid-state feedback circuitry, the IP710 provides precise, stable pressure outputs to final control elements. Immunity to the effects of vibration or mounting position, high tolerance to impure air, and low air consumption make this unit ideal for use in demanding applications.

Typically these units are used for applications that require electronic pressure control of valve actuators, pneumatic valve positioners, air cylinders, clutches, brakes, dampers, louvres, and pumps. Original equipment applications include manufacturers of machinery for grinding or polishing, welding, dispensing, web tensioning, semiconductor manufacturers, automated assembly, conveying, leak testing, food processing and painting to name a few.

Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, an optional DIN rail mounting kit is available.

SPECIFICATIONS
Agency Approvals: FM and CSA Intrinsically Safe
IP710-*: Class I,II,III, Div. 1, Groups C, D, E, F & G
IP710-*D: Class I, Div. 1,Groups C & D
* = output pressure, does not affect rating
Input Signal: 4 to 20 mA loop powered
Accuracy:+/- 0.1% of span
Deadband: 0.02% of span
Min. Supply Pressure: 5 psi above max output
Max. Supply Pressure:
Range Code: X17 Max.Pressure: 60 psig
Range Code: X15, X27, X30 Max.Pressure: 100 psig
Range Code: X60, X100 Max.Pressure:130 psig
Supply Pressure Sensitivity: No measurable effect
Air Consumption: 1.5 SCFH typical (4.5 SCFH for X60 and X100)
Temperature Limits: -40 to 71°C (-40 to 160 °F)
Temperature Effect:+/- 0.07% FS/°C (±0.045% FS/°F)
Flow Capacity @ Mid_range: 4.5 SCFM @ 25 psig (X60 and X100 20 SCFM @150 psig)
Voltage Drop: 9.5 Vdc @ 20 mA
Media: Clean, dry, oil-free, instrument air, filtered to 40 micron
Pressure Ports: 1/4" NPT female
Electrical Connections: 1/2" NPT female conduit or DIN 43560 connector
Mounting: Direct wall, panel, 11/2" pipe, or optional DIN rail
Housing: Chromate treated aluminum with epoxy paint, NEMA-4X rated (IP65)
Elastomers: Buna-N
Trim: Stainless steel and Zinc plated brass
Dimensions: 93.7 mm H x 38.1 mm W x 74.7 mm D (3.69" x 1.50" x 2.94")

Weight: 400 g (13 oz)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
IP710 series with Conduit Termination, 4-20mA Input, 1/4NPT female ports
IP710-X15
681.56
Availability: 1 week

3 to 15 psi I/P converter
IP710-X17
704.74
Availability: 1 week

1 to 17 psi I/P converter
IP710-X27
677.81
Availability: 6 weeks

3 to 27 psi I/P converter
IP710-X30
681.56
Availability: 5 weeks

6 to 30 psi I/P converter
IP710-X60
731.12
Availability: 6 weeks

2 to 60 psi I/P converter
IP710-X100
669.45
Availability: 1 week

2 to 100 psi I/P converter
IP710 series with DIN Connector, 4-20mA Input, 1/4NPT female ports
IP710-X15-D
731.12
Availability: 1 week

3 to 15 psi I/P converter
IP710-X17-D
703.19
Availability: 6 weeks

1 to 17 psi I/P converter
IP710-X27-D
731.12
Availability: 5 weeks

3 to 27 psi I/P converter
IP710-X30-D
703.19
Availability: 6 weeks

6 to 30 psi I/P converter
IP710-X60-D
764.05
Availability: 6 weeks

2 to 60 psi I/P converter
IP710-X100-D
764.05
Availability: 1 week

2 to 100 psi I/P converter
ACCESSORIES
IP610-DM
€14.25
Availability: 1 week

DIN rail mounting adapter
All amounts shown in EUR
Note: All IP710s come with mounting bracket and operator’s manual.
