Over-the-side Immersion Heaters for Drum Heating

KBLC & KBLS Series

Over-the-side Immersion Heaters for Drum Heating | KBLC & KBLS Series

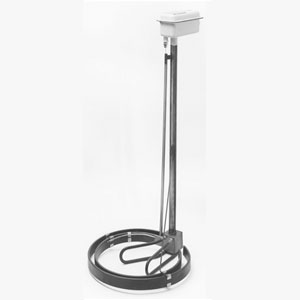

Over-the-side Immersion Heaters for Drum Heating

See All Models Below

  • Low Watt Density: 11 W/in2
  • Moisture Resistant Terminal Enclosure
  • Rugged Steel or Stainless Steel Sheathed Elements
  • 2. 2 and 4.4 kW, 240 V, 1 Phase
  • Built-in Thermostat on Most Models
  • APPLICATIONS
    • Melting Wax
    • Melting Lard
    • Melting Grease
    • Melting Coconut Oil and Other Heat Sensitive Materials.

Description

Find how a Immersion Heater works on this link or general information about industrial heater elements.

FEATURES
Light weight and easy to use. Heater is set atop the mass and then melts its way to the bottom. Steel terminal housing protected by acid and heat resistant paint. Standard with built-in controls on most models.

Three temperature ranges:
• T1 — 0 to 100°F
• T2 — 60 to 250°F
• T3 — 200 to 550°F



kW Volts W/in2 Dimension In. AR Thermostat
Range °F
Model No. Wt.
lb.
Riser
In. (A)
Min. Tank
Clearance (B)
KBLC Series — Steel Sheath and Riser
2.2240113612 3/4KBLC-2414
2.2240113612 3/460 to 250°FKBLC-24T214
2.2240113612 3/4200 to 550°FKBLC-24T314
4.4240113617 3/4KBLC-2818
4.4240113617 3/460 to 250°FKBLC-28T218
4.4240113617 3/4200 to 550°FKBLC-28T318
KBLS Series — Stainless Steel Sheath and Riser
2.2240113612 3/4KBLS-24414
2.2240113612 3/40-100°FKBLS-244T114
2.2240113612 3/460 to 250°FKBLS-244T214
2.2240113612 3/4200 to 550°FKBLS-244T314
4.4240113617 3/4KBLS-28818
4.4240113617 3/40-100°FKBLS-288T118
4.4240113617 3/460 to 250°FKBLS-288T218
4.4240113617 3/4200 to 550°FKBLS-288T318
