LCEC

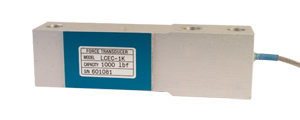

Minibeam Load Cell Beam Load Cell | LCEC

Minibeam Load Cell Beam Load Cell

330,00 LCEC-1K

2 year warranty
  • Premium Temperature Compensation
    0.0008%/°F
  • Low Profile
  • Waterproof, Corrosion Resistant
  • Environmentally Sealed
  • Calibrated in Compression
Load Cells, Force Sensors and Torque Transducers - View related products

Description

Model LCEC load cells are designed to operate in all weather or wet industrial environments. Their low profile and high side load capability simplify mechanical installation considerations. Their weather sealing, high precision and repeatability make them ideally suited for rugged industrial applications such as testing, batching, weigh pits and other applications exposed to the elements. Supplied with 10 ft (3m) Integral Cable.

SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output: 3 mV/V nominal
Calibration: NIST-traceable
Linearity: ±0.03% FS
Hysteresis: ±0.02% FS
Repeatability: ±0.01% FS
Creep (after 20 min): ±0.03%
Zero Balance: ±1% FS
Operating Temp Range: -55 to 90°C (-65 to 200°F)
Compensated Temp Range: -15 to 65°C (0 to 150°F)
Thermal Effects:
   Zero: ±0.0015% rdg/°F max
   Span: ±0.0008% FS/°F max
Safe Overload: ±150% of capacity
Ultimate Overload: ±300% of capacity
Input Resistance: 350 Ω +50/-3.5 Ω
Allowable Side Load at Rated Load: 50% rated capacity
Protection Class: IP67
Output Resistance: 350 ±3.5 Ω
Construction: Aluminum
Electrical: 3 m (10') insulated 4-conductor shielded color-coded cable
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
LCEC-50
Consult Sales
Availability:


Minibeam load cell with +/- 50 lb capacity
Quick Ship
LCEC-100
Consult Sales
Availability:


Minibeam load cell with +/- 100 lb capacity
Quick Ship
LCEC-250
Consult Sales
Availability:


Minibeam load cell with +/- 250 lb capacity
Quick Ship
LCEC-500
316,00
Availability: 5 weeks

Minibeam load cell with +/- 500 lb capacity
Quick Ship
LCEC-1K
Consult Sales
Availability:


Minibeam load cell with +/- 1,000 lb capacity
All amounts shown in EUR
Note: NIST Traceable Calibration Included
Ordering Example: (1) LCEC-250 is a 250 lb capacity load cell, €307,00
