High Accuracy AC Displacement LVDT Sensors

LD320

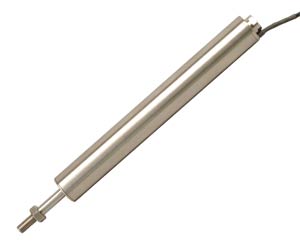

High Accuracy AC Displacement LVDT Sensor

^€405,35 LD320-2.5

PLACE ORDER

LVDT sensor. 2.5 to 150 mm travel
<0.2% Linearity
Rugged 19 mm Dia. Stainless Steel Body
Rigid Stainless Steel Carrier
IP67 Protection
Guided Core for Easy Installation

Displacement and Proximity Transducers - View related products

Description

The LD320 Series displacement LVDT sensors have a stainless steel body with improved IP67-rated sealing, coupled with new polymer guides with rigid carriers. These transducers are accurate and reliable, especially in wet and corrosive conditions. An unusually large bore-to-core clearance is maintained throughout the range, even on transducers fitted with on-board signal conditioning. This makes installation easier and helps prevent misalignment.

SPECIFICATIONS
Linearity: <0.2% FSO
Residual Voltage at Null Position: <0.5% FSO
Storage Temp: -40 to 120ºC (-40 to 248ºF)
Operating Temp: -40 to 120ºC (-40 to 248ºF)
Protection Rating: IP67
Vibration (Sinusoidal Frequency):
    10 to 50 Hz: 1 to 10 g rms linear
    50 Hz to 1 kHz: 10 g rms linear
Shock:
    Drop Testing: 1 m (3') onto hard surface
    Topple Testing: 10 times each end onto hard surface
Case Material: 300 SS
Cable: PFA, 2 m (6') long
Core Material: Nickel-iron

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LD320-2.5

€405,35

Availability: 11 weeks

±2.5 mm LVDT sensor

LD320-5

€424,05

Availability: 11 weeks

±5 mm LVDT sensor

LD320-7.5

€487,80

Availability: 11 weeks

±7.5 mm LVDT sensor

LD320-10

€538,47

Availability: 11 weeks

±10 mm LVDT sensor

LD320-15

€535,09

Availability: 11 weeks

±15 mm LVDT sensor

LD320-25

€567,49

Availability: 5 weeks

±25 mm LVDT sensor

LD320-50

€617,36

Availability: 11 weeks

±50 mm LVDT sensor

LD320-75

€722,19

Availability: 1 week

±75 mm LVDT sensor

LD320-100

€748,33

Availability: 1 week

±100 mm LVDT sensor

LD320-150

€981,91

Availability: 1 week

±150 mm LVDT sensor

Accessories sensor

LD-TIP

€57.03

Availability: 4 weeks

Tip Adapter / Ball Tip

LD-UJOINT-KIT

€242.73

Availability: 2 weeks

U-Joint retro fit kit

† All amounts shown in EUR
Note: For compatable instrumentation see "Related Links" below.
Ordering Example: (1) LD320-5 +/- 5 mm LVDT, €424.05
