Load Buttons and Rod Ends for Load Cells

MLBC, MREC

rod ends and load buttons | MLBC, MREC

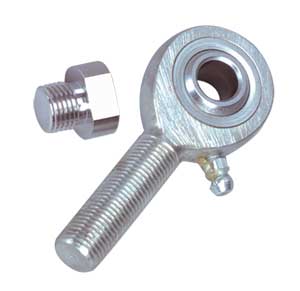

rod ends and load buttons

45,00 MLBC-M6

  • Ensures Proper Loading and Helps Prevent Damage
  • Load Buttons for Compression Applications
  • Rod Ends for Tension Applications
Load Cells, Force Sensors and Torque Transducers - View related products

Description


Rod End Dimensions and Specifications
Rod end dimensions
Male Threaded Rod Ends, Dimensions: mm
Model No.  Thread Size  B W H A D C K J  Static Load (kg)
 MREC-M5M  M5 x 0.8 5 8 6.25  33  16 20 14 - - 5720
 MREC-M6M  M6 x 1.0 6 9 7 36 19 22 13 - - 8035
 MREC-M8M  M8 x 1.25 8 12 8.75 42  22.25  25 18 - - 15030
 MREC-M10M  M10 x 1.5 10 14 10.5 48 27 29 17 - - 22780
 MREC-M12M  M12 x 1.75 12 16 12 54 30 33 17 - - 20180
 MREC-M16M  M16 x 2.0 16 21  14.25  66 38 40 23 - - 34605
 MREC-M20M  M20 x 1.5 20 25 18 78 46 47 20 - - 54525
 MREC-M24M  M24 x 2.0 25 31 22 95 60 57 19 - - 114205
Female Threaded Rod Ends, Dimensions: mm
 MREC-M5F  M5 x 0.8 5 8 6.25 27 16 14 14 11 9 7435
 MREC-M6F  M6 x 1.0 6 9 7 30 19 14 13 13 11 11690
 MREC-M10F  M10 x 1.5 10 14 10.5 43 27 21 17 19 17 22780
 MREC-M12F  M12 x 1.75 12 16 12 50 30 24 17 22 19 20180
 MREC-M20F  M20 x 1.5  20   25  18 77 46  40   20   34   30  54525

Load button dimensions
Load Buttons Dimensions: mm
 Model No.  Thread H T D F R
MLBC-M6 M6 x 1.0 12.7 5.1 15.2 12.7 50.8
MLBC-M8 M8 x 1.25 12.7 5.1 15.2 12.7 50.8
MLBC-M10 M10 x 1.5 15.2 7.6 19.1 15.9 50.8
MLBC-M12  M12 x 1.75  17.8 7.6 19.1 15.9 102
MLBC-M16 M16 x 2.0 22.9 7.6 38.1 31.8 127
MLBC-M20 M20 x 1.5 22.9 7.6 38.1 31.8 127
MLBC-M24 M24 x 2.0 27.9 7.6 38.1 31.8 203
MLBC-M36 M36 x 2.0  57.2   25.4   63.5   57.2   356


Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Load Buttons
Quick Ship
MLBC-M6
45.00
Availability: 1 week

Load button with M6 x 1.0 thread
Quick Ship
MLBC-M8
€45.00
Availability: 9 weeks

Load button with M8 x 1.25 thread
Quick Ship
MLBC-M10
45.00
Availability: 1 week

Load button with M10 x 1.5 thread
Quick Ship
MLBC-M12
45.00
Availability: 1 week

Load button with M12 x 1.75 thread
Quick Ship
MLBC-M16
59.00
Availability: 1 week

Load button with M16 x 2.0 thread
Quick Ship
MLBC-M20
59.00
Availability: 1 week

Load button with M20 x 1.5 thread
Quick Ship
MLBC-M24
68.00
Availability: 1 week

Load button with M24 x 2.0 thread
Quick Ship
MLBC-M36
118.00
Availability: 9 weeks

Load button with M36 x 2.0 thread
Male Rod Ends
Quick Ship
MREC-M5M
45.00
Availability: 5 weeks

Rod end with M5 x 0.8 male thread
Quick Ship
MREC-M6M
45.00
Availability: In Stock

Rod end with M6 x 1.0 male thread
Quick Ship
MREC-M8M
45.00
Availability: 1 week

Rod end with M8 x 1.25 male thread
Quick Ship
MREC-M10M
45.00
Availability: 1 week

Rod end with M10 x 1.5 male thread
Quick Ship
MREC-M12M
45.00
Availability: 1 week

Rod end with M12 x 1.75 male thread
Quick Ship
MREC-M16M
68.00
Availability: 2 weeks

Rod end with M16 x 2.0 male thread
Quick Ship
MREC-M20M
181.00
Availability: 5 weeks

Rod end with M20 x 1.5 male thread
Quick Ship
MREC-M24M
555.00
Availability: 5 weeks

Rod end with M24 x 2.0 male thread
Female Rod Ends
Quick Ship
MREC-M5F
45.00
Availability: 1 week

Rod end with M5 x 0.8 female thread
Quick Ship
MREC-M6F
45.00
Availability: 1 week

Rod end with M6 x 1.0 female thread
Quick Ship
MREC-M10F
45.00
Availability: 5 weeks

Rod end with M10 x 1.5 female thread
Quick Ship
MREC-M12F
45.00
Availability: 1 week

Rod end with M12 x 1.75 female thread
Quick Ship
MREC-M20F
158.00
Availability: 5 weeks

Rod end with M20 x 1.5 female thread
All amounts shown in EUR
Ordering Example: (1) MLBC-M20 load button with M20 x 1.5 thread, €59.00
