Precision Temperature Data Loggers
Part of the NOMAD® Family

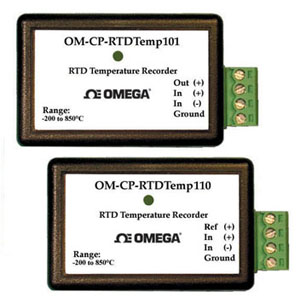

OM-CP-RTDTEMP101 and OM-CP-RTDTEMP110

See All Models Below

0.01°C Resolution
Programmable Start Time
Miniature Size
User Calibration through
Real Time Operation

Description

This product is no longer available please see OM-CP-RTDTEMP101A as a direct substitute

The OM-CP-RTDTEMP101 and OM-CP-RTDTEMP110 are precision, battery powered, stand-alone, temperature data loggers. These all-in-one compact, portable, easy-to-use devices will measure and record up to 21,845 temperature measurements with a resolution of 0.01°C. These data loggers are a major leap forward in accurate temperature measurement performance. The real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an available COM port and our easy to use software does the rest. The Windows software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can also be exported to a text or Microsoft Excel file.

Specifications
Input Type: 100Ω Pt RTD, α = 0.00385
Temperature Measurement Range: -200 to 850°C (-328 to 1562°F)
Specified Accuracy Range: -125 to 600°C (-193 to 1112°F)
Calibrated Temperature Accuracy: +0.05°C (0.015.) (does not include RTD error)
Temperature Resolution: 0.01°C
Temperature Calibration: Digital calibration is available in software
Memory: 21,845 readings
Input Connection: 2, 3 or 4 wire screw terminal connector
Calibration Date: Automatically recorded within device to alert user when calibration is required
Recording Interval: 2 seconds to 12 hours, selectable through software
Start Time: Start time and date are programmable through software
Real Time Recording: Device may be used with PC to monitor and record data in real time
Visual Indicator: LED flashes at selected reading rate
Time Accuracy: ±1 minute per month at 20°C
Power: 3.6 V lithium battery included
Battery Life: OM-CP-RTDTEMP101: 1 year at 1 min reading rate
OM-CP-RTDTEMP110: 10 years at 15 min reading rate
Data Format: Date and time stamped, °C, °F, °K, °R, Ω
Computer Interface: PC serial, USB or RS-232C COM
Communications: OM-CP-RTDTEMP101: 2400 baud
OM-CP-RTDTEMP110: 57600 baud
Software: XP SP3/Vista and 7 (32-bit and 64-bit)
Operating Environment: -40 to 80°C (-40 to176°F) 5 to 95% RH non-condensing
Dimensions: OM-CP-RTDTEMP101: 36 H x 56 W x 16 mm D (1.4 x 2.2 x 0.6")
OM-CP-RTDTEMP110: 43 H x 69 W x 20 mm D (1.7 x 2.7 x 0.8")
Weight: OM-CP-RTDTEMP101: 30 g (1 oz)
OM-CP-RTDTEMP110: 60 g (2 oz)
Material: ABS plastic

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.

Qty

Description

OM-CP-RTDTEMP101

Consult Sales

Availability:

Precision temperature data logger with 1 year battery life

OM-CP-RTDTEMP101-CERT

Consult Sales

Availability:

Precision temperature data logger with 1 year battery life with NIST calibration certificate

OM-CP-RTDTEMP110

Consult Sales

Availability:

Precision temperature data logger with 10 year battery life

OM-CP-RTDTEMP110-CERT

Consult Sales

Availability:

Precision temperature data logger with 10 year battery life with NIST calibration certidicate

OM-CP-IFC200

€195.76

Availability: In Stock

Windows software and 1.8 m (6') USB interface cable

OM-CP-BAT105

€24.16

Availability: In Stock

Replacement 3.6 V lithium battery

OM-CP-CONNECTOR-4

€16.25

Availability: 4 weeks

Replacement 4 position terminal block connector

† All amounts shown in EUR
Note: Operator's manual, battery and USB interface cable are included with the OM-CP-IFC200 Windows software. (software is required to operate the data logger and is sold separately).
Ordering Example: (1) OM-CP-IFC200 Windows software and 3.7 m (12') USB interface cable, €195.76
