 - Discontinued Tri-Axial Shock accelerometer data logger

OM-CP-SHOCK101 series

3 axis accelerometer data logger - Order online | OM-CP-SHOCK101 series

3 axis accelerometer data logger - Order online

See All Models Below

5 year warranty CE
  • Data logger with Built-In Accelerometers
  • Measures Dynamic and Static Acceleration
  • Real-Time Operation
  • Programmable Start Time
  • Compact
  • Reuseable

Description

The OM-CP-SHOCK101 series has been discontinued. Please see the OM-CP-SHOCK-SERIES as a possible alternative or contact our Sales department.

Click here if you want to know more about accelerometers.

More information about how an accelerometer works in this link.

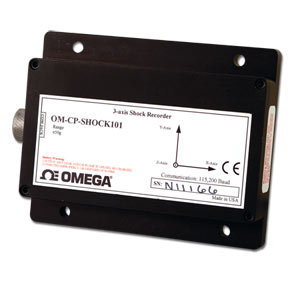

The 3-axis shock accelerometer data logger of the series OM-CP-SHOCK101 is a battery powered, stand-alone device that measures and records shock levels. These compact, economical units have built-in accelerometers to measure dynamic and static acceleration, and may be used in a wide variety of applications, including assembly line monitoring, fragility testing, drop testing and other machinery monitoring.

The OM-CP-SHOCK101 records the peak acceleration levels over user defined intervals, with a software selectable reading rate from 64 per sec to every 5 minutes. The sample rate is 1.953 ms/512 Hz.

The OM-CP-SHOCK101 can store up to 349,000 measurements per axis, and hold them in non-volatile solid-state memory, even when the battery is discharged. Data retrieval is quick and easy-simply plug into a USB port. The OM-CP-IFC200 software displays your data in an easy to use graph, so you can analyze your data quickly. A variety of powerful tools allow you to examine, export and print professional looking data with just a click of the mouse.

SPECIFICATIONS
Accelerometer Type: MEMS semiconductor
Sampling Rate: 1.953 ms/512 Hz
Frequency Response: 0 to approx. 400 Hz
Recording Interval: 64 Hz to 5 minutes for shock, software selectable
Memory: 349,525 readings per axis (1,398,100 total readings)
Real Time Recording: May be used with PC to monitor and record instantaneous acceleration in real time (1 sec or slower reading rate, not possible during logging)
Start Modes: Software programmable immediate start or delay start up to 180 days in advance
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 9 V lithium or alkaline battery (included), user replaceable
Battery Life: 7 days typical with lithium battery
Data Format: Date and time stamped gravities (3-axis)
Time Accuracy: ±1 minute per month at 20 to 30°C
Computer Interface: USB (cable required); 115,200 baud
Software: WIN98/NT/2000/XP/VISTA (VISTA 32-bit version only; 64-bit not supported)
Operating Environment: -20 to 60°C, 0 to 95% RH, non-condensing
Dimensions: 89 H x 112 W x 26 mm D
Weight: 340 g
Material: Anodised aluminium

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Software and Accessories
OM-CP-IFC200
€168.91
Availability: In Stock

Windows software and 3.5 m USB interface cable
OM-CP-BAT103
€42.51
Availability: 1 week

Replacement 9 V lithium battery
All amounts shown in EUR
Note: Comes with Operator's manual.
A USB cable is included with the OM-CP-IFC200 Windows software (this is required to operate the data logger and is sold separately).
