DescriptionClick on this link if you need more information about an accelerometer.

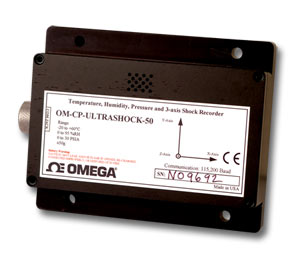

is a battery powered, stand alone
temperature, pressure, humidity
and 3-axis shock recorder.
The OM-CP-ULTRASHOCK measures and records temperature, pressure and humidity at the selected reading rates, while shock is recorded as the peak acceleration levels over the same interval.
The OM-CP-ULTRASHOCK is specifically designed for documenting dynamic environments such as moving vehicles, trucks, containers, ships, etc. The device is also valuable in characterising environments such as production and assembly lines of delicate electronics, IC fabrication, communications and computer components.
This compact, portable, easy to use device will measure and record up to 174,762 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and it’s small size allows it to fit almost anywhere. The OM-CP-ULTRASHOCK makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly software does the rest.
|Accelerometer Type: MEMS semiconductor
Range: -20 to 60°C (-4 to 140°F)
Accuracy: ±0.5°C (0 to 50°C)
Sensor: Capacitive Polymer
Range: 5 to 95% RH
Accuracy: ±3% RH (±2% RH typical at 25°C)
Resolution: 0.1% RH
Specified Accuracy Range: 10 to 40°C (10 to 80% RH)
Sensor: Semiconductor strain gage
Accuracy: +1.0% FSR 25°C; +0.2% typical
Resolution: 0.002 psia
Range: 0 to 30 psia
Sampling Rate: 1.953 ms/512 Hz
Frequency Response: 0 to approx. 400 Hz
|Recording Interval: 64 Hz to 5 minutes for shock, software selectable; temperature, pressure & RH sampled approx every 2 sec at intervals <2 sec, otherwise sampled at reading rate
Memory: 174,762 readings per channel (1,572,858 total readings)
Data Format: Date and time stamped gravities (3-axis), temperature (°C, °F, K, °R); %RH, mg/ml water vapour concentration; pressure (psia, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa, altitude
Real Time Recording: May be used with PC to monitor and record instantaneous acceleration in real time (1 sec or slower reading rate, not possible during logging)
Start Modes: Software programmable immediate start or delay start up to 180 days in advance
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 9 V lithium or alkaline battery (included), user replaceable
Battery Life: 7 days typical with lithium battery
Data Format: Date and time stamped gravities (3-axis)
Time Accuracy: ± 1 minute per month at 20 to 30°C
Computer Interface: USB or serial interface (cable required); 115,200 baud
Software: WIN98/NT/2000/XP/VISTA (VISTA 32-bit version only; 64-bit not supported)
Operating Environment: -20 to 60°C, 0 to 95% RH, non-condensing
Dimensions: 89 H x 112 W x 26 mm D
Weight: 340 g (12 oz)
Material: Anodised aluminium
