USB Digital I/O module

OMG-USB-DIO48 and OMG-USB-DIO96

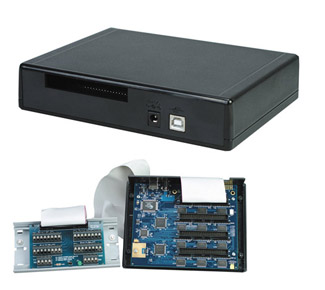

USB Digital input module | OMG-USB-DIO48 and OMG-USB-DIO96

USB Digital input module

See All Models Below

Lifetime waranty
  • USB Digital input module with 48 and 96 Channels
    of Buffered Digital I/O
  • 8255 Compatible
  • 10K Pull Up Resistors
    on Each Port Bit
  • True Hot
    Swapping/Auto Configuration
  • Includes Drivers and Utility software for 98/ME/ NT/2000/XP
USB, RS232, RS485 and Ethernet Data Acquisition Systems - View related products

Description

The OMG-USB-DIO Series USB Digital input module contains 48 or 96 channels of buffered digital I/O emulating 8255s for industrial control applications. 10K pull up resistors are included on each port bit. The OMG-USB-DIO series contains 8 bit I/O ports configurable as inputs or outputs. This gives the user the ability to customize the combination of inputs or outputs as needed. In addition, the low order bit of the first port can be set to generate an interrupt for status monitoring applications. A special factory configurable interrupt feature allows the user to request conditional I/O combinations for interrupt generation. When the I/O combinations occurs, a hardware interrupt is triggered.

Software
The OMG-USB-DIO Series includes drivers, utilities, and programming samples for Windows 98/ME/NT/2000/XP/VISTA/7 to aid in the development of reliable applications for the OMG-USB-DIO family of USB to digital I/O interfaces.

Connectors and Terminal Panels
All of the I/O signals are accessed through standard 50-pin connectors. The OMG-USB-DIO48 contains two connectors and the OMG-USB-DIO96 contains four connectors. OMEGA provides an optional OMG-TB07 terminal panel for wiring to the I/O connector. One terminal panel is required for each I/O connector. An OMG-CA167 cable is also needed for each terminal panel. The I/O connector is also compatible with industry standard relay racks. An OMGCA135 cable can be used to connect each I/O connector to a relay rack.

Specifications
Channels: 48,96
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity Range: 10 to 90% RH
Output: 64mA(sink), 32mA (source), TTL Level Logic
Power: from AC adapter
Connectors: (2 or 4) 50 Pin IDC
Physical Dimensions: 17.78 cm L x 13.34 cm W x 3.81 cm H (7.0 x 5.25 x 1.5")
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
OMG-USB-DIO48
Consult Sales
Availability:


48 channel digital I/O interface
OMG-USB-DIO96
Consult Sales
Availability:


96 channel digital I/O interface
OMG-TB07
77.60
Availability: 1 week

50 pin terminal block(requires OMG-CA167)
Accessories
OMG-CA135
€77.51
Availability: 7 weeks

40 inch 50 pin edge cable, connects the OMG-USB-DIO to industry standard solid state relay racks
OMG-CA167
€19.40
Availability: 7 weeks

40 inch 50 pin IDC cable, connects the OMG-USB-DIO to OMB-TB07
OMG-DR102
€19.40
Availability: 7 weeks

DIN rail mounting kit
All amounts shown in EUR
Note: All OMG-USB-DIO interfaces include utility software and a complete user’s manual on CD-ROM, USB A to B Cable and 5V Power Supply.
