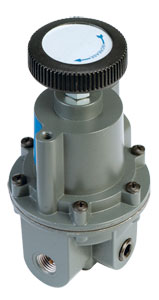

Air Pressure Regulators for High Flow Applications

PRG700 Series

PRG700 Air Pressure Regulators | PRG700 Series

PRG700 Air Pressure Regulators

148,58 PRG700-2

1 year warranty
  • High Flow Capacity, up to 80 scfm
  • Output Pressure Insensitive to Flow Changes
  • Can Be Serviced Without Removing from Air Line
  • Insensitive to Changes in Flow
Valves, Regulators and I/P Converters - View related products

Description

The OMEGA PRG700 Series regulators are designed for applications that require high flow capacity and accurate process control. A poppet valve balanced by a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube, which adjusts the air supply in accordance with the flow velocity.

SPECIFICATIONS
Flow Capacity: See performance curves on spec sheet
Exhaust Capacity: 4 scfm [outlet pressure 5 psi > set pressure]
Sensitivity: 1/8 in (3.2 mm) H2O
Supply Pressure Effect: < 0.1 psi for 100 psi change
Air Consumption (Steady State): From 1.0 to 12.5 scfh
Supply Pressure: 250 psig (17.5 bar) maximum
Operating Temperature: -40 to 71°C (-40 to 160°F)
Weight: 0.74 kg (1.625 lb)
Mounting: Pipe, panel, or optional bracket
Port Sizes: 1/4 NPT female
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PRG700-2
148,58
Availability: 1 week

0 to 2 psi (0 to 0.15 bar) output pressure
PRG700-15
132,77
Availability: 6 weeks

0 to 15 psi (0 to 1.0 bar) output pressure
PRG700-30
132,77
Availability: 6 weeks

0 to 30 psi (0 to 2.0 bar) output pressure
PRG700-60
132,77
Availability: 6 weeks

0 to 60 psi (0 to 4.0 bar) output pressure
PRG700-150
137,27
Availability: 1 week

0 to 150 psi (0 to 10 bar) output pressure
Accessories
PRG700-MB
€15.91
Availability: 1 week

Mounting Bracket
All amounts shown in EUR
Note: Each unit comes complete with operator's manual.
Ordering Example: (1) PRG700-30 high flow regulator with 0 to 30 psi range, and 1/4 NPT fittings, €132.77
