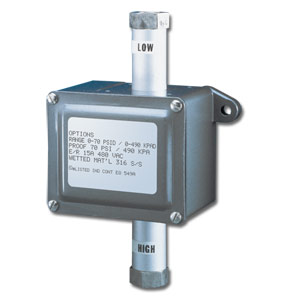

General Purpose Differential Pressure Switches

PSW-150

^€857,14 PSW-151

PLACE ORDER

UL Listed
15 Amp SPDT
Easy Adjustments
Vibration-Resistant Setpoints

Pressure Switches - View related products

Description

PSW-150 Series differential switches are ideally suited for laboratory and industrial applications where a rugged, repeatable, and dependable switch is required. For ease of installation, ports are tagged high and low, and the setpoint adjusts over the entire range.

SPECIFICATIONS
Approvals: UL listed
Repeatability: ±1% range
Ambient Switch Shift: 0.04% range/°C
Storage Temperature: -55 to 75 °C (-67 to 167°F)
Ambient Switch Temp: -40 to 70°C (-40 to 158°F)
Process Temp: Brass and phosphor bronze: 120°C (248°F); 316SS: 260°C (500°F)
Shock: Setpoint repeats after 15 g at 10 ms duration
Vibration: setpoint repeats after 2.5 g at 5 to 500 Hz
Output: (1) SPDT, 15 Amp 125/250/480 Vac
Enclosure: Cast aluminum, gray enamel finish
Electrical: 22 mm (7/8") dia. conduit port, screw terminals
Pressure Port: 1/4 NPT Female
Weight: 0.9 kg (2 lb)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

PSW-151

€857,14

Availability: 7 weeks

Differential pressure switch with 0-6 psi range, 30 psi operating pressure and Brass bellows

PSW-152

€565,59

Availability: 1 week

Differential pressure switch with 0-25 psi range, 110 psi operating pressure and Phosphor Bronze bellows

PSW-153

Consult Sales

Availability:

Differential pressure switch with 0-40 psi range, 180 psi operating pressure and Brass bellows

PSW-154

€804.56

Availability: 3 weeks

Differential pressure switch with 0-70 psi range, 350 psi operating pressure and 316SS bellows

PSW-155

€554.72

Availability: 7 weeks

Differential pressure switch with 10-90 psi range, 200 psi operating pressure and Phosphor Bronze bellows

† All amounts shown in EUR
Ordering Example: (1) PSW-155 has phosphor bronze bellows and a range of 10 to 90 psid, €554.72
