Economical Pressure and Vacuum Switches

PSW-620/PSW-630 Series

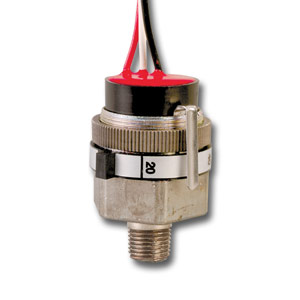

Economical Pressure and Vacuum Switches | PSW-620/PSW-630 Series

Economical Pressure and Vacuum Switches

93,00 PSW-631

3 year warranty
  • External Pressure Scale and Pointer for Easy Setpoint Adjustment
  • Silver Switch Contacts Rated for 5 Amps @ 250 Vac or 3 Amps @ 28 Vdc
  • 1 Amp Gold-Plated Contacts for TTL or Dry Contacts
Pressure Switches - View related products

Description

SPECIFICATIONS
Process Temp: -55 to 105°C (-65 to 221°F) 2% setpoint shift can occur below -23°C (-10°F) or above 52°C (125°F)
Repeatability: ± 2% of max system pressure
Cycling: Not to exceed 20 cycles/min
Warranty: 3 year/1 million cycles
Proof Pressure: 150% Max Pressure
Wetted Parts: 17-7 PH stainless steel, Loctite sealing compound #271, ZA8 alloy, chromate finish
Enclosure: Zinc alloy, chromate finish
Dimensions: 48 L x 28 mm Dia. (1.9 L x 1.1" Dia.)
Pressure Port: 1/8 -27 NPT Male
Electrical Connection: 300 mm (12") pigtail leads, 20 AWG, polyvinyl insulated
Wiring Code (pressure):
   Black = Common
   Red = N/C
   White = N/O
Wiring Code (vacuum):
   Black = Common
   Red = N/O
   White = N/C
Weight: 57 g (2 oz) (approx)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Gage Pressure Switches
Quick Ship
PSW-621
98.00
Availability: 1 week

1.6-30 psi pressure switch with 1 Amp Gold plated contacts
Quick Ship
PSW-622
98.00
Availability: 4 weeks

3.0-40 psi pressure switch with 1 Amp Gold plated contacts
Quick Ship
PSW-623
98.00
Availability: 1 week

4.5-100 psi pressure switch with 1 Amp Gold plated contacts
Quick Ship
PSW-624
98.00
Availability: 1 week

9.7-250 psi pressure switch with 1 Amp Gold plated contacts
Quick Ship
PSW-625
98.00
Availability: 5 weeks

20-500 psi pressure switch with 1 Amp Gold plated contacts
Quick Ship
PSW-631
93.00
Availability: 4 weeks

1.6-30 psi pressure switch with 5 Amp Silver contacts
Quick Ship
PSW-632
93.00
Availability: 5 weeks

3.0-40 psi pressure switch with 5 Amp Silver contacts
Quick Ship
PSW-633
93.00
Availability: 1 week

4.5-100 psi pressure switch with 5 Amp Silver contacts
Quick Ship
PSW-634
93.00
Availability: 1 week

9.7-250 psi pressure switch with 5 Amp Silver contacts
Quick Ship
PSW-635
93.00
Availability: 6 weeks

20-500 psi pressure switch with 5 Amp Silver contacts
Vacuum Switches
Quick Ship
PSW-626
98.00
Availability: 1 week

2.7-28.2 inHg vacuum switch with 1 Amp Gold plated contacts
Quick Ship
PSW-627
98.00
Availability: 5 weeks

5.1-28.2 inHg vacuum switch with 1 Amp Gold plated contacts
Quick Ship
PSW-628
98.00
Availability: 5 weeks

8.4-28.2 inHg vacuum switch with 1 Amp Gold plated contacts
Quick Ship
PSW-636
93.00
Availability: 5 weeks

2.7-28.2 inHg vacuum switch with 5 Amp Silver contacts
Quick Ship
PSW-637
93.00
Availability: 5 weeks

5.1-28.2 inHg vacuum switch with 5 Amp Silver contacts
Quick Ship
PSW-638
93.00
Availability: 5 weeks

8.4-28.2 inHg vacuum switch with 5 Amp Silver contacts
All amounts shown in EUR
Ordering Example: (1) PSW-621 is a 1.6-30 psi pressure switch with 1 Amp Gold plated contacts, €98.00
