Connectors, Twist Lock (MIl-C 26482G) series 1 Type

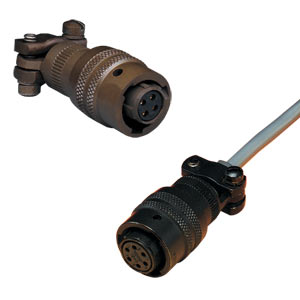

PT06F Connectors

Connectors, Twist Lock Type, MIL-C 26482G, 26482 | PT06F Connectors

Connectors, Twist Lock Type, MIL-C 26482G, 26482

17,75 PT01F8-4P

RoHS
  • RoHS compliant finishes available
  • Rugged Aluminum Shells
  • Rated to 257°F (125°C)
  • Strain Relief Cable Clamp
  • Secure Solder Contacts
  • #20 AWG Wire Size
  • High Conductivity Gold Plated Contacts
Accessories - View related products

Description

The OMEGA™ PT Connectors can now be purchased with either RoHS or MIL-C 26482G compliant finishes, and provide an efficient method of connecting pressure transducers to associated instrumentation with multi-conductor cable. The solder contacts are designed to provide positive connections for signal or power circuitry. The connectors come in a selection of operating temperature ranges to meet most industrial applications.

For complete product specifications see the Related Links section at the bottom of this page.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
ROHS
Quick Ship
PT01F8-4P-R
17.25
Availability: 1 week
RoHS compliant
Environmentally protected connector with 4 male contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT01F10-6P-R
23.50
Availability: 1 week
RoHS compliant
Environmentally protected connector with 6 male contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F10-6S-R
26.50
Availability: 1 week
RoHS compliant
Indoor use connector with 6 female contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F8-4S-R
23.50
Availability: 1 week
RoHS compliant
Indoor use connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F8-4SG-R
Consult Sales
Availability:

RoHS compliant
Internal sealing gland connector with 4 female (-67 to 257°F) temperature range
Non-ROHS
Quick Ship
PT01F8-4P
17.75
Availability: 1 week
Not RoHS compliant
Environmentally protected connector with 4 male contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT01F10-6P
Consult Sales
Availability:

Not RoHS compliant
Environmentally protected connector with 6 male contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F8-4S
23.50
Availability: In Stock
Not RoHS compliant
Indoor Connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F8-4SG
Consult Sales
Availability:

Not RoHS compliant
Environmentally protected connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
Quick Ship
PT06F10-6S
26.50
Availability: In Stock
Not RoHS compliant
Environmentally protected connector with 6 female contacts, -55 to 125°C (-67 to 257°F) temperature range
Screw-on High Temp Connector
Quick Ship
PCS06E10-6S
139.00
Availability: 11 weeks
RoHS compliancy undetermined
Temp range -55 to 204°C (-67 to 399°F)
All amounts shown in EUR
Note: “P” suffix denotes male pins; “S” suffix denotes female sockets
Ordering Example: (1) PT01F8-4P Connector with 4 male contacts, -55 to 125°C temperature range, €17.75
