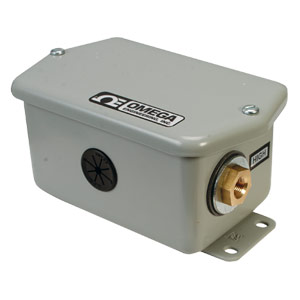

PX154
Wet/Wet Low Differential Pressure Transmitter
See All Models Below
-
Low Differential Pressure Measurements
-
Zero and Span Controls are Provided for Easy Field Adjustment
-
Weatherproof NEMA-4 enclosure
-
For Industrial Applications Requiring Wet/Wet Differential Pressure
Pressure Transducers - View related products
Description
This item is discontinued.
SPECIFICATIONS
Excitation: 24 Vdc (18 to 30 Vdc)
Output: 4 to 20 mA (2-wire)
Accuracy: ±1.0% FS
Linearity: 0.75% FS
Repeatability and Hysteresis: 0.05% FS
Zero Balance: 1%
Zero and Span Adjustment: 10%
Compensated Temp: 0 to 50°C (32 to 122°F)
Thermal Effects:
Zero: ±0.03% FS/°C (±0.05% FS/°F)
Span: ±0.03% rdg/°C (±0.05% rdg/°F)
Proof Pressure: 20 psi
Common Line Pressure: 20 psi
Burst Pressure: 60 psi
Pressure Port: 1/8 FNPT
Media Compatibility: Liquids or gases compatible with brass, vinyl, polyester, silica and fluorosilicone
Termination: Screw terminal block
Enclosure: Epoxy coated, steel enclosure, NEMA 4 (IP65) rating
Dimensions: 141 x 75 x 100 mm (5 9/16 x 2 15/16 x 3 15/16")
Weight: 454 g (1.0 lb)
