Economical Pressure Transmitter with 4-20mA Output

PX182B Series

PX182B Series Pressure Transmitter | PX182B Series

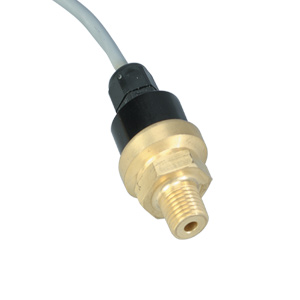

PX182B Series Pressure Transmitter

215,00 PX182B-100GI

  • Digitally Compensated for Low Total Accuracy and Interchangeability
  • Gage Pressure, Vacuum, and Compound Ranges Available
  • Rugged Compact Design
  • Two Wire 4 to 20 mA Current Loop Output
  • RFI/EMI Protection
  • Reverse Polarity Protection
Pressure Transducers - View related products

Description

Click on this link if you need more information about Pressure Transducer or how we can customize your Pressure Sensor.

OMEGA’s PX182B Series transducers, designed for general industrial and commercial requirements, offer excellent performance in a wide range of applications. They are based on proven micro-machined silicon technology, providing high reliability, long-term stability, and low cost.

The PX182B is fully digitally compensated for the effects of pressure and temperature change. It is extremely accurate, less than 0.3% FS reference accuracy, and less than 1% FS over its compensated temperature range.

SPECIFICATIONS
Excitation:
11 to 30 Vdc
Output: 4 to 20 mA (2 wire)
Accuracy: 0.3% BFSL maximum
(includes linearity, hysteresis, and repeatability)
Total Error Band: 1% FS
(includes temperature effects within compensated temperature range)
Operating Temperature: -40 to 80°C (-40 to 176°F)
Compensated Temperature: -25 to 75°C (-13 to 167°F)
Process Temperature: -40 to 100°C (-40 to 212°F)
1 Year Stability: <0.25% FS
Proof Pressure: 2x FS (750 psig for 500 psig range)
Burst Pressure: 3x FS or 750 psig, whichever is less
Wetted Parts: brass, borosilcate, silicon, RTV, and epoxy
Vibration: 10 g, 55 to 2000 Hz
Shock: 30 g
Process Connection: 1/8 NPT male
Electrical Connection: 0.4 m (18") 24 AWG cable
Weight: 142 g (5 oz.)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Gauge Pressure Ranges with 4-20mA Output
Quick Ship
PX182B-001GI
234.00
Availability: 1 week

0 to 1 psig (0 to 0.0689 bar)
Quick Ship
PX182B-006GI
215.00
Availability: 1 week

0 to 6 psig (0 to 0.414 bar)
Quick Ship
PX182B-015GI
215.00
Availability: 1 week

0 to 15 psig (0 to 1.0 bar)
Quick Ship
PX182B-030GI
215.00
Availability: 6 weeks

0 to 30 psig (0 to 2.1 bar)
Quick Ship
PX182B-060GI
215.00
Availability: 1 week

0 to 60 psig (0 to 4.1 bar)
Quick Ship
PX182B-100GI
215.00
Availability: 1 week

0 to 100 psig (0 to 6.9 bar)
Quick Ship
PX182B-150GI
215.00
Availability: 11 weeks

0 to 150 psig (0 to 10.3 bar)
Quick Ship
PX182B-200GI
215.00
Availability: 1 week

0 to 200 psig (0 to 13.8 bar)
Quick Ship
PX182B-300GI
215.00
Availability: 10 weeks

0 to 300 psig (0 to 20.7 bar)
Quick Ship
PX182B-500GI
215.00
Availability: 11 weeks

0 to 500 psig (0 to 34.5 bar)
Vacuum & Compound Ranges with 4-20mA Output
Quick Ship
PX182B-015VACI
215.00
Availability: 11 weeks

0 to -14.7 psig (0 to -1.0 bar) vacuum transmitter
Quick Ship
PX182B-015CI
215.00
Availability: 11 weeks

-14.7 to 15 psig (-1.0 to +1.0 bar)
Quick Ship
PX182B-030CI
215.00
Availability: 11 weeks

-14.7 to 30 psig (-1.0 to +2.1 bar)
Quick Ship
PX182B-060CI
215.00
Availability: 11 weeks

-14.7 to 60 psig (-1.0 to +4.1 bar)
Accessories
Quick Ship
PS-8G
€10.25
Availability: 1 week

Pressure snubber for steam and gases
Quick Ship
PS-8E
€10.25
Availability: 1 week

Pressure snubber for water and light oils
Quick Ship
PS-8D
€10.25
Availability: 1 week

Pressure snubber for oil
Quick Ship
DP25B-E-230
€284.00
Availability: In Stock

4 Digit Process Indicator with 24 VDC Excitation Voltage
