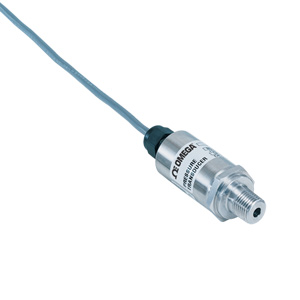

Discontinued  - General Purpose Pressure Transducer

PX300

 | PX300

See All Models Below

3 year warranty
  • Rugged Stainless Steel Construction
  • Integral Strain Relief for Cable
  • 0.25% Full Scale Accuracy
  • Long Cycle Life
Pressure Transducers - View related products

Description

The PX300 series has been discontinued. Please see the PX309 series as a possible alternative or contact our Technical Sales department.

Excitation: 10 Vdc (5 to 15 Vdc Limits)
Output: 3mV/V ratiometric 30mV ±1mV @ 10V
Accuracy: 0.25%FS (linearity, hysteresis, repeatability)
Zero Balance: ±2 mV
Long Term Stability: ±0.5% FS
Typical Life:100 million cycles
Operating Temperature: 0 to 160°F (-18 to 71°C)
Compensated Temperature: 30 to 160°F (-1 to 71°C)
Total Thermal Effects: 1% FS max
Proof Pressure: 200%, 13000 psi max
Input Resistance: 15000Ohm maximum
Response Time: 1 msec
Gage Type: Stainless steel diaphragm, silicone oil filled semiconductor sensor
Shock: 50 g @ 11msec
Vibration: 15 g 10-2000 Hz
Wetted Parts: 17-4 and 300 Series Stainless Steel
Pressure Port: 1 /4 NPT male
Electrical Conn: 4 cond, 22 AWG, PVC unshielded, 3 ft (1 m) cable
Weight: 4.6 oz (131) to 1000 psi
6.7 oz (190 g) from 1000 psi

VIEW PDF FILE (Link Below ) for FULL PRODUCT SPECIFICATIONS
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PX300-015GV
Consult Sales
Availability:


0-15 PSI Range
PX300-050GV
Consult Sales
Availability:


0-50 PSI Range
PX300-100GV
Consult Sales
Availability:


0-100 PSI Range
PX300-200GV
Consult Sales
Availability:


0-200 PSI Range
PX300-300GV
Consult Sales
Availability:


0-300 PSI Range
PX300-500GV
Consult Sales
Availability:


0-500 PSI Range
PX300-1KGV
Consult Sales
Availability:


0-1000 PSI Range
PX300-2KGV
Consult Sales
Availability:


0-2,000 PSI Range
PX300-3KGV
Consult Sales
Availability:


0-3,000 PSI Range
PX300-5KGV
Consult Sales
Availability:


0-5,000 PSI Range
PX300-7.5KGV
Consult Sales
Availability:


0-7,500 PSI Range
PX300-10KGV
Consult Sales
Availability:


0-10,000 PSI Range
All amounts shown in EUR
Note: Comes with complete operator’s manual.
