Micro-Machined Silicon Wet/Wet Differential Pressure Transducers

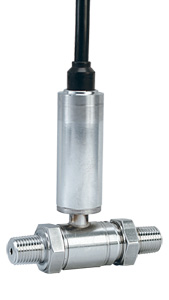

PX409 Series Wet/Wet Differential PressureTransducers

Wet/Wet Differential Pressure Transducer
 | PX409 Series Wet/Wet Differential PressureTransducers

Wet/Wet Differential Pressure Transducer

775,00 PX409-015DWUV

CE RoHS
  • Differential Pressure transducer with Precision Micro-Machined Silicon Core
  • 5-Point Traceable Calibration
  • High Stability, Low Drift
  • Welded Stainless Steel Construction
  • 316L SS Wetted Parts
  • Also Available with M12 Electrical Connector (PX459). See Part Number Builder at bottom of page
  • Premium Temperature Performance
  • Broad Compensated Temperature Range
  • Durable, 1 Million Cycle Life
  • Ruggedized with Secondary Containment
  • Customized Specifications Available
  • Click here to check the metric version of this model
Pressure Transducers - View related products

Description


Differential pressure transducer are rugged stainless steel sensors, ideal for tough industrial automotive, or aerospace applications requiring a wet/wet transducer. They can be used in test benches, fitler monitoring, hydraulic, flow, or water/wastewater applications, as well as factory or pneumatic air, pitot tubes, air speed and other industrial or aerospace applications. The solid state silicon core and all stainless steel wetted parts will provide long, reliable service life with excellent long term stability.

Specifications
Accuracy: 0.08% BSL linearity, hysteresis and repeatability combined
Minimum Resistance Between Transducer Body and Any Wire: 100 MΩ
Operating Temperature:
    mV/V and 5 to 10 Vdc Output: -45 to 121°C
    mA Output: -45 to 115°C
Compensated Temperature Range:
    10 inH2O to 5 psi: -17 to 85°C
    15 to 1000 psi: -29 to 85°C
Thermal Accuracy:       Zero     Span
% Span Shift over compensated temperature range
    10 inH2O to 5 psi:  ±1.00%    ±1.00%
    15 to 1000 psi:      ±0.50%    ±0.50%
Pressure Cycles: 1 million minimum
Long Term Stability (1-Year): ±0.1% FS typical
Bandwidth: DC to 1 kHz typical
Response Time: <1 ms
CE Complient: Meets EN61326-1: 2006 for industrial locations
Shock: 50 g, 11 ms, half-sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L Mil-Spec 810 figure 514-2-2, horizontal and vertical axis
Wetted Parts: 316L stainless steel
Line/Static Pressure: 500 psi max applied to both sides simultaneously
Proof Pressure (Differential):
    10 inH2O range = 10 times range
    1 psi range = 6 times range
    2.5 to 750 psi ranges = 4 times range
    1000 psi range = 3 times range
Hi Side Containment Pressure (Differential):
    Ranges 10 inH2O to 5 psi: to 1000 psi
    Ranges 15 to 1000 psi: to 3000 psi
Pressure Ports: ¼NPT male
Electrical Terminations:
    PX409: 2 m cable
    PX409C: 2 m cable with ½ NPT conduit thread
    PX419: Mini-DIN (mating connector included)
    PX429: Twist-lock, mating connector (sold separately)
    PX459: M12 Connector, mating connector (sold separately)
    Mating Connector for PX429: PT06F10-6S
Weight: 200 g max

UNI-DIRECTIONAL mV/V SPECIFICATIONS
Output: 10 mV/V ratiometric
Supply Voltage: 5 to 10 Vdc
Current Draw: 5 mA @ 10 Vdc
Input Impedance: 1000 to 5000 Ω
Output Impedance: 5000 Ω ±10% typical
Zero Balance:
    Ranges ≤ 1psi: ±1% typ (2% max)
    Ranges > 1psi: ±0.5% typ (1% max)
Span Setting:
    Ranges ≤ 1psi: ±1% typ (2% max)
    Ranges > 1psi: ±0.5% typ (1% max)
  PX409 Differential pressure transducer Output Connector Options
UNI-DIRECTIONAL VOLTAGE OUTPUT SPECIFICATIONS
Output Voltage/Supply Voltage: 0 to 5 Vdc/ 10 to 30 Vdc; 0 to 10 Vdc/15 to 30 Vdc (change "5V" to "10V" in model number)
Current Draw: 10 mA max
Maximum Current Output: 2 mA (= 2500 Ω min load resistance)
Output Impedance: 100 Ω
Zero Balance:
    Ranges > 1psi: ±0.5% typ (1% max)
    Ranges ≤ 1psi: ±1% typ (2% max)
Span Setting:
    Ranges > 1psi: ±0.5% typ (1% max)
    Ranges ≤ 1psi: ±1% typ (2% max)

UNI-DIRECTIONAL mA SPECIFICATIONS
Output: 4 to 20 mA
Supply Voltage: 9 to 30 Vdc; [9 to 20 Vdc above 105°C]
Max Loop Resistance: (Vs-9) x 50 Ω
Zero Balance:
    Ranges > 1psi: ±0.5% typ (1% max)
    Ranges ≤ 1psi: ±1% typ (2% max)
Span Setting:
    Ranges > 1psi: ±0.5% typ (1% max)
    Ranges ≤ 1psi: ±1% typ (2% max)
  PX409-WDDIF Differential pressure transducer Dimensions


Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Differential pressure transducer with 10 mV/V Output - 2 m Cable Electrical Termination
Quick Ship
PX409-10WDWUV
835.00
Availability: 5 weeks
RoHS compliant
Wet/Wet 10 inH2O differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-001DWUV
835.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 1 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-2.5DWUV
835.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 2.5 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-005DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 5 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-015DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 15 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-030DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 30 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-050DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 50 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-100DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 100 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-150DWUV
775.00
Availability: 1 week
RoHS compliant
Wet/Wet 150 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-250DWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 250 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-500DWUV
775.00
Availability: 1 week
RoHS compliant
Wet/Wet 500 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-750DWUV
775.00
Availability: 1 week
RoHS compliant
Wet/Wet 750 psi differential pressure range, 10 mV/V output, 2 m cable termination
Quick Ship
PX409-1.0KDWUV
775.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 1000 psi differential pressure range, 10 mV/V output, 2 m cable termination
Differential pressure transducer with 0 to 5 Vdc Output - 2 m Cable Electrical Termination
Quick Ship
PX409-10WDWU5V
895.00
Availability: 5 weeks
RoHS compliant
Wet/Wet 10 inH2O differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-001DWU5V
895.00
Availability: 1 week
RoHS compliant
Wet/Wet 1 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-2.5DWU5V
895.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 2.5 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-005DWU5V
850.00
Availability: 3 weeks
RoHS compliant
Wet/Wet 5 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-015DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 15 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-030DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 30 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-050DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 50 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-100DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 100 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-150DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 150 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-250DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 250 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-500DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 500 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-750DWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 750 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Quick Ship
PX409-1.0KDWU5V
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 1000 psi differential pressure range, 0 to 5 Vdc output, 2 m cable termination
Differential pressure transmitter with 4 to 20 mA Output - 2 m Cable Electrical Termination
Quick Ship
PX409-10WDWUI
895.00
Availability: In Stock
RoHS compliant
Wet/Wet 10 inH2O differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-001DWUI
895.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 1 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-2.5DWUI
895.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 2.5 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-005DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 5 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-015DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 15 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-030DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 30 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-050DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 50 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-100DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 100 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-150DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 150 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-250DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 250 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-500DWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 500 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-750DWUI
850.00
Availability: 1 week
RoHS compliant
Wet/Wet 750 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Quick Ship
PX409-1.0KDWUI
850.00
Availability: 2 weeks
RoHS compliant
Wet/Wet 1000 psi differential pressure range, 4 to 20 mA output, 2 m cable termination
Accessories
Quick Ship
PT06F10-6S
€26.50
Availability: In Stock
Not RoHS compliant
Mating connector for PX419 (sold separately)
Quick Ship
DP25B-S-230
€275.00
Availability: In Stock
RoHS compliant
4-Digit 1/8 DIN panel meter for mV/V input. 230Vac powered
Quick Ship
DP25B-E-230
€275.00
Availability: In Stock
RoHS compliant
4-Digit 1/8 DIN panel meter for mA or V input. 230Vac powered
Quick Ship
DP41-S-230
€590.00
Availability: 6 weeks
RoHS compliancy undetermined
6-Digit 1/8 DIN panel meter for mV/V input. 230Vac powered
Quick Ship
DP41-E-230
€590.00
Availability: 6 weeks
RoHS compliancy undetermined
6-Digit 1/8 DIN panel meter for mA or V input. 230Vac powered
All amounts shown in EUR
Note: To order models with different electrical terminations, change model number to one of the following:
PX409 = Cable Connection (featured in chart above)
PX419 = mini-DIN Connection (mating connector provided)
PX429 = Twist Lock Connector (mating connector sold separately)
PX459 = M12 Connector (mating connector sold separately)
Additional Ranges Available
See Part Number Builder (below) for the full selection of pressure ranges
Ordering Example: (1) PX429-005DWU5V Wet/Wet 5 psi diff. pres. range, 0 to 5 Vdc output, twist-lock termination, €850.00  plus (1) PT06F10-6S Mating twist-lock connector (sold separately), €26.50, €850.00 + 26.50 = €876.50

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Termination select from:
PX409 for 2 m cable
PX419 for mini-DIN
PX429 for Twist-Lock (mating connector sold separately)
PX459 for M12 Connector (mating connector sold separately)

(2) Pressure Range (PSI) select from:
10W for 0-10 inH2O
001 for 1 psi
2.5 for 2.5 psi
005 for 0-5 psi
015 for 0-15 psi
030 for 0-30 psi
050 for 0-50 psi
100 for 0-100 psi
150 for 0-150 psi
250 for 0-250 psi
500 for 0-500 psi
750 for 0-750 psi
1.0K for 0-1000 psi

(3) Units select from:
DWU for Wet/Wet Differential Pressure
DDU for Wet/Dry Differential Pressure

(4) Output select from:
V for 10 mV/V Output
5V for 0-5 Volt dc Output
10V for 0-10 Volt dc Output
I for 4-20 mA Output
Note: All combinations may not be valid, check spec sheet for valid part numbers.
