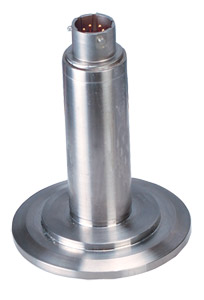

Hygienic Pressure Transmitters

PX409S-I Series

Pressure Transmitters with Hygienic Fittings | PX409S-I Series

Pressure Transmitters with Hygienic Fittings

690,00 PX429S20-001GI

CE RoHS
  • FAST DELIVERY! Stock to 1-Week!
  • High, 0.08%, Accuracy
  • Solid State Sensor for Durability
  • Excellent Long Term Stability
  • Ruggedised, with Secondary Containment
  • 316L SS Wetted Parts
  • Shock and Vibration Rated
  • High Overpressure Rating
  • Now Available with M12 Connector, Order Model PX459
  • Sanitary Pressure Transmitter with 4-20 mA Output
  • Gauge and Absolute Pressure to 600 psi
Pressure Transducers - View related products

Description

Click on this link if you need more information about Sanitary Sensors.

The PX409S Series hygienic pressure transmitters are made using our proven micromachined silicon process. They are available with 1½ or 2 in hygienic fittings (Tri-Grip™) and are designed for long reliable service in pressure or level CIP applications in food processing, beverage or bio/ pharmaceutical applications as well as industrial applications that require a rugged, high accuracy pressure transmitter. The micro-machined silicon sensor provides a very stable transducer with exceptional high accuracy of 0.08% and a broad compensated range of -6.7 to 85°C. The modular construction allows for fast delivery of most configurations and fittings.

SPECIFICATIONS
Accuracy: 0.08% Best Straight Line (Linearity, Hysteresis and Repeatability combined)
Operating Temperature Range: -15 to 115°C
Compensated Temperature Range: -6.7 to 85°C
Temperature Compensation: Zero and Span Combined
    ≥5psi: 1% over 55.6°C range
    ≤2.5 psi: 2% over 55.6°C range
Min Isolation Between Case and Output Terminations: 100 MΩ @ 50 Vdc
Pressure Cycles: 1 million, minimum
Long Term Stability (1-Year): ±0.1% FS typ.
Shock: 50 g, 11 ms half sine shock, (under test)
Vibration: ±20 g (under test)
Bandwidth: DC to 1 kHz typical
Response Time: <1 ms
Fill Fluid: NEOBEE M5 Food grade
CE Compliant: Meets industrial emissions and immunity standard IEC61326
Environmental Protection: IP65 or IP67 depending upon electrical termination
Pressure Rating: 1½ and 2 in Tri-Grip™ (Tri-Clamp® compatible) fitting: 600 psi using suitable clamp
Over Pressure: 4 x rated pressure to maximum rated flange pressure
Secondary Containment: 6 x rated pressure to a maximum of 2000 psi (not in clamp)
Wetted Parts: 316L SS
Weight: 285 gm (10 oz)
Zero Balance: ±0.5% FS typical, 1% max (For ranges ≤2.5 psi ±1% typ 2% max)
Span Setting: ±0.5% FS typical, 1% max (For ranges ≤2.5 psi, ±1% typ 2% max)
Calibrated in vertical position with fitting down
CURRENT OUTPUT
    Output: 4 to 20 mA
    Supply Voltage: 9 to 30 Vdc max loop res Ω = (Vs-9)x50 [9 to 20 Vdc above 105°C)]
ELECTRICAL CONNECTIONS
    2 m cable: PX409S
    2 m cable and conduit: PX409CS
    Mini-Din Connector: PX419S
    Twist Lock Connector: PX429S
    M12 Connector: PX459S
Please use the "Part Number Builder" below to select the model and options required to meet your requirements.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
MOST POPULAR MODELS
Use the part number builder below to order models not shown. Specify the fitting size, pressure range, output, and electrical termination desired.
Hygienic Pressure Transmitter with 1½ inch TRI-GRIP Fitting, 4-20 mA Output, Gauge Pressure, 2 Metre Cable Connection, IP67
Quick Ship
PX409S15-10WGI
690.00
Availability: 2 weeks
RoHS compliant
0-10 inH2O gauge pressure Range (0-25 mbar)
Quick Ship
PX409S15-001GI
690.00
Availability: 2 weeks
RoHS compliant
0-1 psig Range (0-69 mbar)
Quick Ship
PX409S15-2.5GI
690.00
Availability: 2 weeks
RoHS compliant
0-2.5 psig Range (0-172 mbar)
Quick Ship
PX409S15-005GI
690.00
Availability: 2 weeks
RoHS compliant
0-5 psig Range (0-345 mbar)
Quick Ship
PX409S15-015GI
635.00
Availability: 2 weeks
RoHS compliant
0-15 psig Range (0-1 bar)
Quick Ship
PX409S15-030GI
635.00
Availability: 2 weeks
RoHS compliant
0-30 psig Range (0-2.1 bar)
Quick Ship
PX409S15-050GI
635.00
Availability: 1 week
RoHS compliant
0-50 psig Range (0-3.4 bar)
Quick Ship
PX409S15-100GI
635.00
Availability: 2 weeks
RoHS compliant
0-100 psig Range (0-6.9 bar)
Quick Ship
PX409S15-150GI
635.00
Availability: 2 weeks
RoHS compliant
0-150 psig Range (0-10.3)
Quick Ship
PX409S15-250GI
635.00
Availability: 2 weeks
RoHS compliant
0-250 psig Range (0-17.2 bar)
Quick Ship
PX409S15-500GI
635.00
Availability: 2 weeks
RoHS compliant
0-500 psig Range (0-34.5 bar)
Quick Ship
PX409S15-600GI
635.00
Availability: 2 weeks
RoHS compliant
0-600 psig Range (0-41.4 bar)
Hygienic Pressure Transmitter with 1½ inch TRI-GRIP Fitting, 4-20 mA Output, Absolute Pressure, 2 Metre Cable Connection, IP67
Quick Ship
PX409S15-005AI
690.00
Availability: 1 week
RoHS compliant
0-5 psia Range (0-345 mbar)
Quick Ship
PX409S15-015AI
635.00
Availability: 2 weeks
RoHS compliant
0-15 psia Range (0-1 bar)
Quick Ship
PX409S15-030AI
635.00
Availability: 2 weeks
RoHS compliant
0-30 psia Range (0-2.1 bar)
Quick Ship
PX409S15-050AI
635.00
Availability: 2 weeks
RoHS compliant
0-50 psia Range (0-3.4 bar)
Quick Ship
PX409S15-100AI
635.00
Availability: 2 weeks
RoHS compliant
0-100 psia Range (0-6.9 bar)
Quick Ship
PX409S15-150AI
635.00
Availability: 2 weeks
RoHS compliant
0-150 psia Range (0-10.3 bar)
Quick Ship
PX409S15-250AI
635.00
Availability: 1 week
RoHS compliant
0-250 psia Range (0-17.2 bar)
Quick Ship
PX409S15-500AI
635.00
Availability: 1 week
RoHS compliant
0-500 psia Range (0-34.5 bar)
Quick Ship
PX409S15-600AI
635.00
Availability: 1 week
RoHS compliant
0-600 psia Range (0-41.4 bar)
Hygienic Pressure Transmitter with 2 inch TRI-GRIP Fitting, 4-20 mA Output, Gauge Pressure, 2 Metre Cable Connection, IP67
Quick Ship
PX409S20-10WGI
690.00
Availability: 1 week
RoHS compliant
0-10 inH2O gauge pressure Range (0-25 mbar)
Quick Ship
PX409S20-001GI
690.00
Availability: 2 weeks
RoHS compliant
0-1 psig Range (0-69 mbar)
Quick Ship
PX409S20-2.5GI
690.00
Availability: 2 weeks
RoHS compliant
0-2.5 psig Range (0-172 mbar)
Quick Ship
PX409S20-005GI
690.00
Availability: 2 weeks
RoHS compliant
0-5 psig Range (0-345 mbar)
Quick Ship
PX409S20-015GI
635.00
Availability: 2 weeks
RoHS compliant
0-15 psig Range (0-1 bar)
Quick Ship
PX409S20-030GI
635.00
Availability: 1 week
RoHS compliant
0-30 psig Range (0-2.1 bar)
Quick Ship
PX409S20-050GI
635.00
Availability: 1 week
RoHS compliant
0-50 psig Range (0-3.4 bar)
Quick Ship
PX409S20-100GI
635.00
Availability: 2 weeks
RoHS compliant
0-100 psig Range (0-6.9 bar)
Quick Ship
PX409S20-150GI
635.00
Availability: 2 weeks
RoHS compliant
0-150 psig Range (0-10.3 bar)
Quick Ship
PX409S20-250GI
635.00
Availability: 2 weeks
RoHS compliant
0-250 psig Range (0-17.2 bar)
Quick Ship
PX409S20-500GI
635.00
Availability: 2 weeks
RoHS compliant
0-500 psig Range (0-34.5 bar)
Hygienic Pressure Transmitter with 2 inch TRI-GRIP Fitting, 4-20 mA Output, Absolute Pressure, 2 Metre Cable Connection, IP67
Quick Ship
PX409S20-005AI
690.00
Availability: 1 week
RoHS compliant
0-5 psia Range (0-345 mbar)
Quick Ship
PX409S20-015AI
635.00
Availability: 2 weeks
RoHS compliant
0-15 psia Range (0-1 bar)
Quick Ship
PX409S20-030AI
635.00
Availability: 1 week
RoHS compliant
0-30 psia Range (0-2.1 bar)
Quick Ship
PX409S20-050AI
635.00
Availability: 1 week
RoHS compliant
0-50 psia Range (0-3.4 bar)
Quick Ship
PX409S20-100AI
635.00
Availability: 1 week
RoHS compliant
0-100 psia Range (0-6.9 bar)
Quick Ship
PX409S20-150AI
635.00
Availability: 1 week
RoHS compliant
0-150 psia Range (0-10.3 bar)
Quick Ship
PX409S20-250AI
635.00
Availability: 1 week
RoHS compliant
0-250 psia Range (0-17.2 bar)
Quick Ship
PX409S20-500AI
635.00
Availability: 1 week
RoHS compliant
0-500 psia Range (0-34.5 bar)
All amounts shown in EUR
Ordering Example: (1) PX409S15-001GI Hygienic pressure transmitter with 1½ Tri-Grip™ fitting, 0-1 psig pressure range, 4-20 mA output and 2 m cable termination,, €690.00

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Termination select from:
PX409S for 2 m (6 ft) cable
PX409CS for conduit/cable
PX419S for mini DIN
PX429S for Twist-Lock connector
PX459S for M12 Connector

(2) Process Fitting select from:
15 for 1.5 inch Tri-Grip
20 for 2 inch Tri-Grip (500 psi max)

(3) Range select from:
10W for 0 to 10 in H2O
001 for 0 to 1 psi
2.5 for 0 to 2.5 psi
005 for 0 to 5 psi
015 for 0 to 15 psi
030 for 0 to 30 psi
050 for 0 to 50 psi
100 for 0 to 100 psi
150 for 0 to 150 psi
250 for 0 to 250 psi
500 for 0 to 500 psi
600 for 0 to 600 psi (1-1/2 Clamp only)

(4) Pressure Type select from:
G for gauge pressure
A for absolute pressure (5 to 600 psia)

(5) Output Type select from:
V for 10 mV/V
5V for 0 to 5 Vdc
10V for 0 to 10 Vdc
I for 4 to 20 mA
Note: All combinations may not be valid, check spec sheet for valid part numbers.
