Barometric Pressure Transducers
High Accuracy

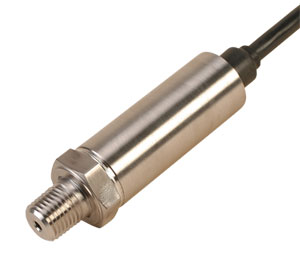

PX409 Series Barometric Pressure Transducers

barometer, Barometric Pressure Measurement | PX409 Series Barometric Pressure Transducers

barometer, Barometric Pressure Measurement

936,94 PX409-32BV

CE
  • High Standard Accuracy 0.08% BSL included Linearity, Repeatability and Hysteresis
  • NEW! High Accuracy Options
    0.05% Accuracy Option, add Suffix "-EH"
    0.03% Linearity Option, add Suffix "-XL"
  • 5-Point NIST Traceable Calibration Included with All Models
  • Available in Calibrated Units of inHg or hPa (mbar)
  • Now Available with M12 Connector, Order Model PX459
    (See Part Number Builder at bottom of page)
Pressure Transducers - View related products

Description

Click on this link if you need more information about Pressure Transducer or how we can customize your Pressure Sensor.

OMEGA’s PX409 series electronic barometers are high-accuracy barometers available in three ranges: 16 to 32 inHg, 26 to 32 inHg, or 0 to 32 inHg (absolute pressure) for laboratory or industrial test applications. Models with integral cables (PX409) are IP67, whilst connector styles (PX419, PX429 and PX459) are IP65 rated. They feature all stainless steel construction, which makes them ideal for harsh industrial environments. Their high operating temperature, broad compensated range, and excellent temperature compensation allow stable readings in applications with fluctuating temperatures commonly found where barometric pressure must be monitored. Models are available with millivolt, voltage or current outputs.

The PX409 Barometric Pressure series is also available in metric configurations, with ranges in mbar (hPa) and G 1/4 (1/4"BSPP) metric fitting. Please see the PXM409 series for complete details, or contact our Sales department for more information.


SPECIFICATIONS
Output:
    Millivolt: 10 mV/V (100 mV @ 10 Vdc)
    Amplified Voltage: 0 to 5 Vdc
    Current Loop: 4 to 20 mA
Power Requirements:
    Millivolt: 5 to 10 Vdc (5 mA @ 10 Vdc)
    Amplified Voltage: 10 to 30 Vdc @ 10 mA
    Current Loop: 9 to 30 Vdc [max loop res = (Vs-9) x 50]; [9 to 20 Vdc above 105°C (229°F)]
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL
Zero Balance: ±0.5% FS typical, 1% max
Span Setting: ±0.5% FS typical, 1% max; calibrated in vertical direction with fitting down
Operating Temperature Range: -45 to 121°C (-49 to 250°F) [-45 to 115°C (-49 to 240°F) for voltage or current outputs]
Compensated Temperature: -18 to 85°C (0 to 185°F)
Thermal Effects Zero (Over Compensated Range): ±0.5% span (±0.9% for 26 to 32 inHg range)
Thermal Effects Span (Over Compensated Range): ±0.5% span
Long Term Stability (1-Year): ±0.1% FS typical
Shock: 50 g 11 mS half sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis
Response Time: <1 ms
Bandwidth: DC to 1 kHz typical
Proof Pressure: 400% of span
Burst Pressure: 6000 psia
Electrical Termination:
    PX409: Integral 2 m (6') cable
    PX419: mini-DIN
    PX429: Twist lock
    PX459: M12 Connector
Mating Connectors:
    PX419: CX5302 (included)
    PX429: PT06F10-6S-R (sold separately)
    PX459: M12C-PVC-4-S-F-5 (M12 cable assembly sold separately)
Environmental Protection:
    PX409: IP67
    PX419: IP65
    PX429: IP65
    PX459: IP65
Wetted Parts: 316 SS
Pressure Port: ¼-18 NPT male
Weight: 115 to 200 g (4 to 7 oz) depending upon configuration

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
10 mV/V (0-100 mV)Output, Barometric Pressure Ranges
2 m (6') Cable Termination
PX409-32BV
936.94
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX409-16BV
936.94
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX409-26BV
936.94
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
min-DIN Termination
PX419-32BV
Consult Sales
Availability:


0 to 32 inHg (0-1100 mbar) absolute pressure range
PX419-16BV
Consult Sales
Availability:


16 to 32 inHg (550-1100 mbar) absolute pressure range
PX419-26BV
942.15
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
Twist-Lock Termination
PX429-32BV
936.94
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX429-16BV
936.94
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX429-26BV
936.94
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
0 to 5 Vdc Output, Barometric Pressure Ranges
2 m (6') Cable Termination
PX409-32B5V
1,045.00
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX409-16B5V
1,050.00
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX409-26B5V
1,050.00
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
min-DIN Termination
PX419-32B5V
1,050.44
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX419-16B5V
1,050.00
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX419-26B5V
1,050.44
Availability: 1 week

26 to 32 inHg (880-1100) absolute pressure range
Twist-Lock Termination
PX429-32B5V
1,045.00
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX429-16B5V
1,050.45
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX429-26B5V
1,045.00
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
4 to 20 mA Output, Barometric Pressure Ranges
2 m (6') Cable Termination
PX409-32BI
1,050.00
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX409-16BI
1,050.44
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX409-26BI
994.55
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
min-DIN Termination
PX419-32BI
1,044.67
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX419-16BI
1,045.00
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX419-26BI
994.29
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
Twist-Lock Termination
PX429-32BI
1,045.00
Availability: 3 weeks

0 to 32 inHg (0-1100 mbar) absolute pressure range
PX429-16BI
1,050.00
Availability: 3 weeks

16 to 32 inHg (550-1100 mbar) absolute pressure range
PX429-26BI
994.55
Availability: 3 weeks

26 to 32 inHg (880-1100) absolute pressure range
Accessories
PT06F10-6S-R
€38.61
Availability: 1 week

Mating connector for PX429 series, sold separately, RoHS Compliant
CX5302
€34.52
Availability: 1 week

Spare mating connector for PX419 series; one included with each unit
M12C-PVC-4-S-F-5
€23.54
Availability: 1 week

PVC cable, straight 4-pin M12 female connector one end, flying leads one end, 5 m long, for PX459 series
PS-4G
€20.00
Availability: 2 weeks

Pressure snubber for gases
PS-4E
€18.94
Availability: 2 weeks

Pressure snubber for water and light oils
PS-4D
€18.94
Availability: 2 weeks

Pressure snubber for viscous liquids
All amounts shown in EUR
Note: Comes complete with 5 point calibration certificate.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Termination select from:
PX409 for 3 m Cable
PX419 for mini-DIN
PX429 for Twist-lock (mating connector sold separately)
PX459 for M12 Connector (mating connector/cable assembly sold separately)

(2) hPa (mbar) Range Calibrations select from:
16B for 16 to 32 inHg
26B for 26 to 32 inHg
32B for 0 to 32 inHg
16HB for 550 to 1100 hPa (mbar)
26HB for 880 to 1100 hPa (mbar)
32HB for 0 to 1100 hPa (mbar)

(3) Electrical Output select from:
V for 10mV/V
5V for 0-5 Volt Output
10V for 0-10 Volt Output
I for 4-20 mA Output

(4) Accuracy Options select from:
for Standard 0.08% Accuracy
-EH for 0.05% Accuracy
-XL for 0.03% Linearity
Note: All combinations may not be valid, check spec sheet for valid part numbers.
