Vacuum Range High Accuracy Pressure Transducers

PX409 Series Vacuum Ranges

Vacuum Pressure Transducers
PX409 Series | PX409 Series Vacuum Ranges

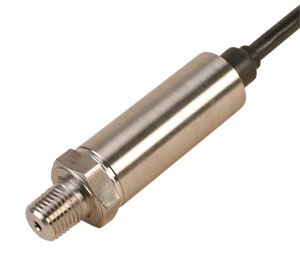

Vacuum Pressure Transducers PX409 Series

590,00 PX409-015VV

CE
  • High Accuracy ±0.08% BSL Includes Linearity, Hysteresis, and Repeatability
  • Broad Temperature Compensated Range -29 to 85°C
  • Premium Temperature Performance Span: ±0.5% Over Compensated Range
  • 5-Point Traceable Calibration Included
  • All Stainless Steel Wetted Parts
  • Fast Response Time
  • 400% Proof Pressure Minimum
Pressure Transducers - View related products

Description

Find how a Pressure Transducer works on this link or how we can customize your Pressure Sensor.

OMEGA’s PX409 Series high accuracy vacuum transducers have a uni-directional output that measures gauge vacuum, negative gauge pressure. Ambient pressure = 0 and output increases as pressure decreases below ambient. The transducers have all stainless steel wetted parts and welded construction and premium temperature compensation which makes them suitable for use in tough industrial environments.
Vacuum models measure negative gauge pressure with increasing output for increasing negative pressure. Ranges are from 0 to -10 inH2O to 0 to -15 psi with uni-directional outputs of 10 mV/V, 0 to 5 Vdc and 4 to 20 mA (ambient set at 4 mA).

Specifications
Output:
    Millivolt: 0 to 10 mV/V for vacuum, ±10 mV/V for compound
    Amplified Voltage: 0 to 5 Vdc for vacuum, ±5 Vdc for compound
    Current Loop: 4 to 20 mA (12 mA at 0 psig on compound ranges)
Power Requirements:
    Millivolt: 5 to 10 Vdc (2 mA @ 10 Vdc)
    Amplified Voltage: 10 to 30 Vdc @ 10 mA
    Current Loop: 9 to 30 Vdc [max loop res = [(Vs-9) x 50] [9 to 20 Vdc above 105°C] Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% FS typical 1% max (1% typical, 2% max for ranges 1 psi and below)
Span Setting: ±0.5% FS typical 1% max (1% typical, 2% max for ranges 1 psi and below) calibrated in vertical direction with fitting down
Operating Temperature Range: -45 to 121°C [-45 to 115°C for voltage or current outputs]
Compensated Temperature:
    Ranges >5 psi: -29 to 85°C (-20 to 185°F)
    Ranges ≤5 psi: -17 to 85°C (0 to 185°F)
Thermal Effects Zero (@ 0 psig Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Thermal Effects Span (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Long Term Stability (1-Year): ±0.1% FS typical
Shock: 50 g 11 mS half sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis
Response Time: <1 ms
Bandwidth: DC to 1 kHz typical
Proof Pressure (positive direction):
    10 inH2O: 10 times full scale
    1 psi: 6 times full scale
    2.5 psi and Higher: 4 times full scale (Negative direction 4 times or 1 atmosphere whichever is greater)
Burst Pressure:
    10 inH2O to 5 psi: 1000 psi
    15 and Higher: 3000 psi
Electrical Termination:
    PX409: Integral 2 m cable
    PX419: mini-DIN
    PX429: Twist lock
Mating Connectors:
    PX419: CX5302 (included)
    PX429: PT06F10-6S-R (sold separately)
Environmental Protection:
    PX409: IP67
    PX419 and PX429: IP65
Wetted Parts: 316 SS
Pressure Port: ¼-18 NPT male
Calibration: Comes with 5 point calibration certificate (positive readings only for compound ranges)
Weight: 115 to 200 g depending upon configuration


Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Vacuum Ranges with 10 mV/V Output
2 m (6 ft) Cable Termination
Quick Ship
PX409-10WVV
635.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with mV/V output
Quick Ship
PX409-001VV
635.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with mV/V output
Quick Ship
PX409-2.5VV
635.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with mV/V output
Quick Ship
PX409-005VV
590.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with mV/V output
Quick Ship
PX409-015VV
590.00
Availability: 1 week

0 to -15 psi Vacuum Range with mV/V output
mini-DIN Termination
Quick Ship
PX419-10WVV
635.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with mV/V output
Quick Ship
PX419-001VV
635.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with mV/V output
Quick Ship
PX419-2.5VV
635.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with mV/V output
Quick Ship
PX419-005VV
590.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with mV/V output
Quick Ship
PX419-015VV
590.00
Availability: 2 weeks

0 to 15 psi Vacuum Range with mV/V output
Twist-Lock Termination
Quick Ship
PX429-10WVV
635.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with mV/V output
Quick Ship
PX429-001VV
635.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with mV/V output
Quick Ship
PX429-2.5VV
635.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with mV/V output
Quick Ship
PX429-005VV
590.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with mV/V output
Quick Ship
PX429-015VV
590.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with mV/V output
Vacuum Ranges with 0 to 5 Vdc Output
2 m (6 ft) Cable Termination
Quick Ship
PX409-10WV5V
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX409-001V5V
710.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX409-2.5V5V
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX409-005V5V
650.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX409-015V5V
650.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 0 to 5 Vdc Output
mini-DIN Termination
Quick Ship
PX419-10WV5V
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX419-001V5V
710.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX419-2.5V5V
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX419-005V5V
650.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX419-015V5V
650.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX419-015VV
590.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 10 mV/V Output
Twist-Lock Termination
Quick Ship
PX429-10WV5V
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX429-001V5V
710.00
Availability: 1 week

0 to -1 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX429-2.5V5V
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX429-005V5V
650.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with 0 to 5 Vdc Output
Quick Ship
PX429-015V5V
650.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 0 to 5 Vdc Output
Vacuum Ranges with 4 to 20 mA Output
2 m (6 ft) Cable Termination
Quick Ship
PX409-10WVI
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 4 to 20 mA output
Quick Ship
PX409-001VI
710.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX409-2.5VI
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX409-005VI
650.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX409-015VI
650.00
Availability: 1 week

0 to -15 psi Vacuum Range with 4 to 20 mA output
mini-DIN Termination
Quick Ship
PX419-10WVI
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 4 to 20 mA output
Quick Ship
PX419-001VI
710.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX419-2.5VI
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX419-005VI
650.00
Availability: 2 weeks

0 to -5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX419-015VI
650.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 4 to 20 mA output
Twist-Lock Termination
Quick Ship
PX429-10WVI
710.00
Availability: 2 weeks

0 to -10 inH2O Vacuum Range with 4 to 20 mA output
Quick Ship
PX429-001VI
710.00
Availability: 2 weeks

0 to -1 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX429-2.5VI
710.00
Availability: 2 weeks

0 to -2.5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX429-005VI
650.00
Availability: 1 week

0 to -5 psi Vacuum Range with 4 to 20 mA output
Quick Ship
PX429-015VI
650.00
Availability: 2 weeks

0 to -15 psi Vacuum Range with 4 to 20 mA output
ACCESSORIES
Quick Ship
PT06F10-6S-R
€27.00
Availability: 7 weeks

Mating Connector for PX429 (RoHS compliant)
Quick Ship
DP25B-S
€289.00
Availability: 1 week

4-Digit Meter with excitation for mV/V Output Models
Quick Ship
DP25B-E
€289.00
Availability: 2 weeks

4-Digit Meter with excitation for Process Output Models
All amounts shown in EUR
Note: Comes complete with 5 point calibration certificate, (zero is ambient pressure).
Ordering Example: (1) PT06F10-6S-R Mating twist-lock connector, €27.00  plus (1) PX429-015VI 4 to 20 mA output, 0 to -15 psi vacuum, twist-lock termination, €650.00, €27.00 + 650.00 = €677.00

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Termination select from:
PX409 for 3 m Cable
PX419 for mini-DIN
PX429 for Twist-lock (mating connector sold separately)
PX459 for M12 Connector (mating connector sold separately)

(2) Ranges Vacuum (Negative Gage) select from:
10W for 0 to -10 INH2O
001 for 0 to - 1 psi
2.5 for 0 to - 2.5 for psi
005 for 0 to -5 psi
015 for 0 to - 15 psi

(3) Electrical Output select from:
V for 10mV/V
5V for 0-5 Volt Output
10V for 0-10 Volt Output
I for 4-20 mA Output
Note: All combinations may not be valid, check spec sheet for valid part numbers.
