PX41-5V Series
Heavy DutyPressure Transducer
See All Models Below
-
As an alternative see the Pressure Transducer Builder
-
Heavy DutyPressure Transducer with All Stainless Steel Body
-
Heavy Duty Construction Harsh Environments
-
Available in Gauge, Sealed Gauge and Absolute Pressure
-
U.S FM Approved Intrinsically Safe Standard
-
Special U.S MSHA Mining Approved Model Available
Pressure Transducers - View related products
Description
Find how a Pressure Transducer works on this link or how we can customize your Pressure Sensor.

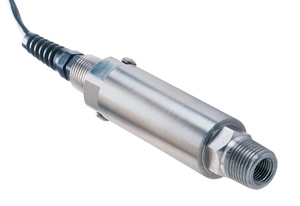

OMEGA’s PX41 is a high-accuracy,
rugged, low-cost, 5 V output
industrial pressure transducer. Its all
stainless steel construction makes it
suitable for the harshest
environments. The PX41 is
available in gauge, absolute, or
sealed models. Three metres of
4-core screened cable
is standard. A twist-lock-style
connector is also available. A wide
selection of amplified voltage and
current output models makes this a
truly versatile family of industrial
transducers.
Consult sales for units available with Inconel construction.
SPECIFICATIONS
Excitation: 10 to 40 Vdc
Output: 0.5 to 5.5 Vdc
Zero Balance: 0.5 V adj ±10% FSO
AGENCY APPROVAL
FM Intrinsically Safe: IS/I.II.III/1/CDEFG standard on all models
MSHA (Optional): Mine Safety and Health Administration (must be specified at time of order)
Accuracy: 0.25% FS linearity and hysteresis combined
Operational Temp Range: -47 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% of rdg/°F
Zero: 0.0045% of FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: ½-14 NPT external, ¼-18 NPT internal
≤10,000 psi: 9⁄16-18, ¼" HP tube
Electrical Connection: 3 m (10') 4-core PVC insulated screened cable
