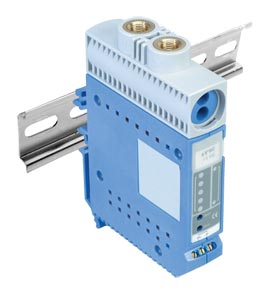

DIN Rail Low Differential Pressure Transmitters with 4-20 mA Output

PX665 Series

DIN Rail Low Differential  Pressure Transmitters with 4-20 mA Output | PX665 Series

1.022,00 PX665-5BDI

1 year warranty CE
  • Compact Space-Saving DIN Rail Mount Design
  • Low Differential Pressure Ranges
  • On-Board Voltage Regulation Allows Use of Low-Cost, Unregulated Power Supply
Pressure Transducers - View related products

Description

SPECIFICATIONS
Excitation:
12 to 36 Vdc
Output: 4 to 20 mA
Accuracy: ±0.5% FS
Non-Linearity: ±0.4% FS
Hysteresis: ±0.02% FS
Non-Repeatability: ±0.05%
Warm-Up Time: 5 sec max to meet standard specifications from initial power-up
Stability: ±0.5% FS / year
Response Time: 250 ms
Storage Temp.: -40 to 82°C (-40 to 180°F)
Operating temp.: -28 to 82°C (-20 to 180°F) (10 to 95% RH non-condensing)
Compensated Temp.: 2 to 57°C (35 to 135°F)
Zero Temp. Effect: ±0.036% FS/°C (±0.02% FS/°F)
Span Temp. Effect: ±0.036% FS/°C (±0.02% FS/°F)
EMC: CE compliant to EN61326, 1997 ANNEX A harmonized heavy industrial transmitter specification
Proof Pressure: 15 psid
Burst Pressure: 25 psid Max Static Pressure: 25 psi
Mounting Position Effect: 0.1% FS(<0.5" WC: 0.25% FS)
Note: Mounting position effect easily corrected with zero potentiometer
Zero and Span Potentiometers: Front accessible, non-interactive
Zero: ±5% FS
Span: ±3% FS
Pressure Connections: 1/8 NPT female
Weight: 127 grams (4.5 oz)
Enclosure: Glass-filled polycarbonate (UL94 -V-1)
Pressure Media: Clean, dry and non-corrosive gas
NOT FOR USE WITH LIQUIDS
Mounting: DIN rail types EN50022, 35 and 45


Models are also available with 1 to 5 Vdc output. Please see the PX663 for complete details, or contact our Pressure department for more information.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Uni-Directional Ranges
PX665-0.25DI
1,130.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 0.25 inch of water range and 4 to 20 mA output
PX665-1DI
1,022.00
Availability: 1 week

DIN rail mountable differential pressure transducer with 0 to 1 inch of water range and 4 to 20 mA output
PX665-2DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 2 inch of water range and 4 to 20 mA output
PX665-5DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 5 inch of water range and 4 to 20 mA output
PX665-10DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 10 inch of water range and 4 to 20 mA output
PX665-15DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 15 inch of water range and 4 to 20 mA output
PX665-20DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 20 inch of water range and 4 to 20 mA output
PX665-25DI
1,028.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 25 inch of water range and 4 to 20 mA output
PX665-50DI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with 0 to 50 inch of water range and 4 to 20 mA output
Bi-Directional Ranges
PX665-0.05BDI
1,212.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -0.05 to +0.05 inch of water range and 4 to 20 mA output
PX665-0.1BDI
1,136.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -0.1 to +0.1 inch of water range and 4 to 20 mA output
PX665-0.25BDI
1,079.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -0.25 to +0.25 inch of water range and 4 to 20 mA output
PX665-0.5BDI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -0.5 to +0.5 inch of water range and 4 to 20 mA output
PX665-1BDI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -1 to +1 inch of water range and 4 to 20 mA output
PX665-2.5BDI
972.92
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -2.5 to +2.5 inch of water range and 4 to 20 mA output
PX665-5BDI
1,022.00
Availability: 1 week

DIN rail mountable differential pressure transducer with -5 to +5 inch of water range and 4 to 20 mA output
PX665-10BDI
1,022.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -10 to +10 inch of water range and 4 to 20 mA output
PX665-25BDI
1,028.00
Availability: 7 weeks

DIN rail mountable differential pressure transducer with -25 to +25 inch of water range and 4 to 20 mA output
All amounts shown in EUR
Ordering Example: (1) PX665-10DI DIN rail mountable differential pressure transducer with 0 to 10 inch of water range and 4 to 20 mA output, €1,022.00
