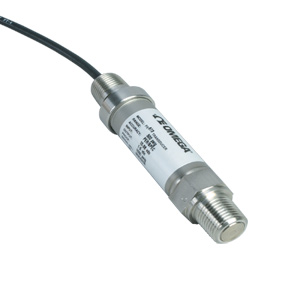

Flush Diaphragm, all Stainless Steel Pressure Voltage Transmitter

PX673

Flush Diaphragm, all Stainless Steel, Industrial Thin Film Transducer Transmitter | PX673

835,00 PX673-100S5V

  • All Stainless Steel Construction
  • Non-clogging Flush Diaphragm Design
  • NEMA 4X Environmental Integrity
  • Thin Film Reliability
  • 100% Production Calibrated
  • NIST
Pressure Transducers - View related products

Description

The PX673 Series transducers utilize reliable thin film technology combined with a flush stainless steel diaphragm to deliver a rugged industrial transducer for applications where an orifice type transducer would not be suitable.

SPECIFICATIONS
Excitation: 10 to 36 Vdc unregulated
Output: 1 to 5 Vdc
Linearity: ±0.4% BFSL
Zero Balance: ±1% FS
Hysteresis: ±0.2%
Repeatability: ±0.15%
Operating Temperature: -29 to 82°C (-20 to 180°F)
Compensated Temperature: -29 to 71°C (-20 to 160°F)
Thermal Effects:
    Span: ±0.04% FS/°F
    Zero: ±0.04% FS/°F
Proof Pressure:
    100 to 2K psi: 200%
    3K to 5K psi: 150% full scale
Burst Pressure:
    100 to 2K psi: 800% full scale
    3K to 5K psi: 300% full scale
Vibration: <±0.1% FS effect for 20 g, 0 to 400 Hz in any axis
Shock: <0.1% effect for 20 g, 20 ms in any axis

WETTED PARTS
Fitting:
316 SS
Diaphragm: 316Ti stainless steel
Pressure Connection: ½ NPT male
Electrical Connection: ½ NPT conduit thread
Cable: No. 24 AWG, 36" PVC shielded, vented UL approved
Weight: 284 g (10 oz) max
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PX673-100S5V
835,00
Availability: 13 weeks

0-100 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-150S5V
835,00
Availability: 13 weeks

0-150 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-200S5V
835,00
Availability: 13 weeks

0-200 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-300S5V
835,00
Availability: 13 weeks

0-300 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-500S5V
835,00
Availability: 13 weeks

0-500 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-750S5V
Consult Sales
Availability:


0-750 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-1KS5V
835.00
Availability: 13 weeks

0-1,000 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-2KS5V
Consult Sales
Availability:


0-2,000 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-3KS5V
835.00
Availability: 13 weeks

0-3,000 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
Quick Ship
PX673-5KS5V
835.00
Availability: 13 weeks

0-5,000 psi sealed gage pressure flush diaphragm transducer with 1-5 Vdc output
All amounts shown in EUR
Note: Comes with complete operator’s manual.
Ordering Example: (1) PX673-3KS5V has a 3000 psi sealed gage full scale rating and a 1 to 5 V dc output at the full scale level, €835.00
