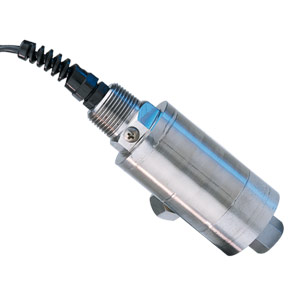

Discontinued -  High Accuracy Wet/Wet Differential Pressure Transducer with Amplified Voltage Output

PX81-5V

High Accuracy Wet/Wet Differential Pressure Transducer with Amplified Voltage Output | PX81-5V

See All Models Below

CE
  • The PX409 and PXM 409 series may be suitable Wet/Wet differential pressure transducers replacements
  • High Accuracy Wet/Wet Differential Pressure
  • All Stainless Steel Construction for Harsh Industrial Environments
  • High Operating Temperature
  • 5 Point NIST Calibration Provided 0%, 50%, 100%, 50%, 0%
Pressure Transducers - View related products

Description

OMEGA’s PX81 Series wet/wet, differential pressure transducer is a compact, high accuracy transducer designed for industrial applications where low drift and long term reliability are important. Its low temperature compensation error minimizes errors due to changing process temperatures and the rugged all stainless steel construction allows the PX81 to withstand typical harsh industrial environments found in chemical and industrial plants.

The PX81 is also available in metric configurations, with G1/4 ports, and models from 0-350 mbar to 0-35 bar pressure ranges. Please see the PXM81 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
mV/V Output
Excitation: 10 Vdc (15 V max)
Output: 3 mV/V nominal
Bridge Resistance: 350 Ω minimum
Zero Balance: ±1% FSO
Shunt: 80% FSO v
5 Vdc Output
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj
4 to 20mA Output
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±10%
Zero Balance: 4 mA +10% -2% adj
Shunt: 80% FSO

COMMON SPECIFICATIONS
Accuracy: ±0.25% linearity, hysteresis and repeatability combined
Environmental:
Operating Temp Range:
mV/V: -73 to 163°C (-100 to 325°F)
5T and I: -46 to 121°C (-50 to 250°C)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
mV/V and 5 V:
Zero: ±0.0054% FSO/°C
Span: ±0.0054% rdg/°C
4 to 20 mA:
Zero: ±0.009% FSO/°C
Span: ±0.009% rdg/°C
Pressure:
Safe Overpressure: 150% rated pressure
Line Pressure: 150% rated pressure (applied simultaneously to both sides)
Burst Pressure: 300% rated pressure
Mechanical:
Wetted Parts: 17-4 PH stainless steel
Pressure Port: 1/4-18 NPFT
Electrical Connection:
Style 0: 3 m (10') cable
Style 1: PTIH-10-6P (or equal)
Style 6: Micro DIN
Mating Connector:
Style 1: PT06F-10-6S (not included)
Style 6: Mating connector included

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
All amounts shown in EUR
Note: Metric Ranges Available - Consult Engineering
