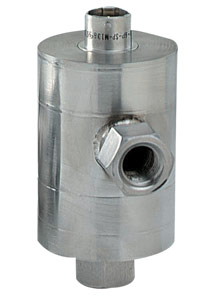

High Accuracy Wet/Wet Differential Pressure Transducer

PX81-MV

High Accuracy Wet/Wet Differential Pressure Transducer | PX81-MV

High Accuracy Wet/Wet Differential Pressure Transducer

545,00 PX81D1-200DV

RoHS
  • High Accuracy Wet/Wet Differential Pressure
  • All Stainless Steel Construction for Harsh Industrial Environments
  • High Operating Temperature
  • 5 Point Calibration Provided 0%, 50%, 100%, 50%, 0%
Pressure Transducers - View related products

Description

OMEGA’s PX81 Series wet/wet, differential pressure transducers are compact and highly accurate, designed for industrial applications in which low drift and long-term reliability are important. Their small temperature-compensation error minimizes errors due to changing process temperatures, and the rugged all stainless steel construction allows the PX81 to withstand typical harsh environments found in chemical and industrial plants. Available with either mV/V, 0 to 5 Vdc, or 4 to 20 mA outputs, PX81 Series transducers will interface with most control systems.

SPECIFICATIONS

mV/V Output Excitation:
10 Vdc (15 V max)
Output: 3 mV/V nominal
Bridge Resistance: 350 Ω minimum
Zero Balance: ±1% FSO
Shunt: 80% FSO

5 Vdc Output
Excitation:
24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj

4 to 20mA Output
Excitation:
10 to 40 Vdc
Output: 4 to 20 mA ±10%
Zero Balance: 4 mA +10% -2% adj
Shunt: 80% FSO

COMMON SPECIFICATIONS
Accuracy:
±0.25% linearity, hysteresis and repeatability combined
Environmental:
    Operating Temp Range:
        mV/V: -73 to 163°C (-100 to 325°F)
        5T and I: -46 to 121°C (-50 to 250°C)
    Compensated Temp Range: 17 to 71°C (60 to 160°F)
    Thermal Effects:
        mV/V and 5 V:
            Zero: ±0.0054% FSO/°C
            Span: ±0.0054% rdg/°C
        4 to 20 mA:
            Zero: ±0.009% FSO/°C
            Span: ±0.009% rdg/°C
Pressure:
    Safe Overpressure: 150% rated pressure
    Line Pressure: 150% rated pressure (applied simultaneously to both sides)
    Burst Pressure: 300% rated pressure
Mechanical:
    Wetted Parts: 17-4 PH stainless steel
    Pressure Port: ¼-18 NPFT
Electrical Connection:
    Style 0: 3 m (10') cable
    Style 1: PTIH-10-6P (or equal)
    Style 6: Micro DIN
Mating Connector:
    Style 1: PT06F-10-6S (not included)
    Style 6: Mating connector included
Place Order(Specify Model Number)
