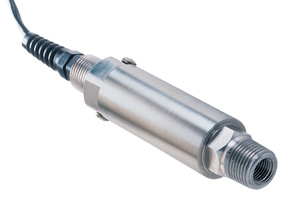

Heavy Duty Industrial Transmitter, G 1/8 OR G 1/4 Fitting, Metric, 0-1 to 0-400 bar, 4-20 mA Output

PXM41 Series, Metric, 4-20 mA Output

Heavy Duty Industrial Transmitter, G 1/8 OR G 1/4 Fitting, Metric, 0-1 to 0-400 bar, 4-20 mA Output | PXM41 Series, Metric, 4-20 mA Output

See All Models Below

  • All Stainless Steel Construction
  • Sealed SS Case for Harsh Environments
  • U.S FM Intrinsically Safe Standard
  • Optional U.S FM Approved for Hazardous Locations
  • U.S MSHA Approved Version Available
Pressure Transducers - View related products


OMEGA’s PXM41 Series are high accuracy, low cost pressure transmitters. Their all stainless steel construction makes them suitable for the harshest environments. They are available in Gauge, Absolute or Sealed Gauge models. Three metres of insulated shielded cable is standard. Twist lock style or micro DIN connectors are also available. A wide selection of amplified voltage and current outputs in the PXM41 family makes this a truly versatile family of industrial transducers.

10 -40 Vdc
Output: 4-20 mA (±10% adj)
Zero Balance: 4 mA +10% -2% adj
Agency Approvals: FM Intrinsically Safe, IS/I.II.III/1/CDEFG - Standard
FM Hazardous Location, S/I/1/ABCD Optional
MSHA, Mine Safety and Health Administration, Optional
(FM and MSHA approvals must be specified at time of order)
Accuracy: 0.25% Linearity, Hysteresis and Repeatability combined
Sensing Element: 4 active arm bridge with hermetically sealed thick film strain gauges.
Operating Temperature Range: -47 to +121°C (-50 to +250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Span: 0.005% Rdg/°C
Zero: 0.009% FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH and 316 SS
Pressure Port: G 1/4 Male or Female, G 1/8 Male or Female
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F-10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)

For special options consult Sales or Pressure Engineering.

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
All amounts shown in EUR
Note: Contact sales for pricing and to order FM or MHSA approved transducers.
For other options see the part number builder below.

Part Number Builder

Build Your Part Number Below
Option Descriptions:

(1) Pressure Fitting select from:
MA for G 1/8 male
MB for G 1/8 female
MC for G 1/4 male
MD for G 1/4 female

(2) Electrical Termination select from:
0 for 3 metre cable
1 for PT1H-10-6P connector (mating connector sold separately)
6 for micro DIN connector (no shunt cal)

(3) Pressure Range select from:
001 for 0-1 Bar
1.60 for 0-1.6 Bar
2.50 for 0-2.5 Bar
004 for 0-4 Bar
006 for 0-6 Bar
010 for 0-10 Bar
016 for 0-16 Bar
025 for 0-25 Bar
040 for 0-40 Bar
060 for 0-60 Bar
100 for 0-100 Bar
160 for 0-160 Bar
250 for 0-250 Bar
400 for 0-400 Bar

(4) Units select from:
A for Absolute Pressure
G for Gauge Pressure
S for Sealed Gauge Pressure

(5) Output select from:
5T for 0 to 5 Volt Output
5V for 0.5 to 5.5 Volt Output
10T for 0 to 10 Volt Output
I for 4 to 20 mA Output
Note: All combinations may not be valid, check spec sheet for valid part numbers.
