Sensor and Transducer Wire and Cable

Sensor Wire

Sensor and Transducer Wire and Cable | Sensor Wire

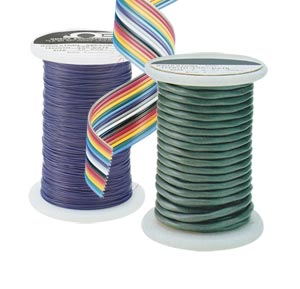

Sensor and Transducer Wire and Cable

€16,25 TFCP-003-50

PLACE ORDER
RoHS
  • Instrument Cable with 2, 4, 8 or 15 Tinned Copper, 7/0.2 Conductors with Aluminium Screen and Drain Wire
  • Ribbon Cables with 4 to 50 Conductors, 0.3mm dia.
  • Single Strand Copper with PFA Insulation for Strain Gauge Wiring
Instrumentation and Accessories - View related products

Description

Single Strand
Single strand copper wire features a thin PFA insulation which is excellent for vacuum and has a temperature rating from -267 to 260 °C . OMEGA’s thin-wall covering process guarantees continuous lengths up to 300m. This wire is ideal for connecting strain gauges to solder terminal strips and pads.

Ribbon Cable
OMEGA’s ribbon cables are PVC pre-insulated conductors laminated to a clear PVC film to allow easy termination. The colour coding allows quick identification and circuit tracing. The multi-conductor ribbon cable can easily be trimmed to any desired conductor width for different uses. The PVC insulation is rated for temperatures from -40 to 105 °C.

Multi Core Instrument Cable
Screened cable provides the high conductivity and noise immunity required for connecting instrumentation to transducers. It is suitable for low and high level voltage signals and mA loops in high EMI/RFI environments. The PVC insulation is rated for temperatures from -40 to 105 °C.
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
RoHS
Description
Multi-Core Screened Instrument Cable with Drain Wire
Quick Ship
Click to expand/minimize a list of what others bought with theTX2-100
TX2-100
€29.50
Availability: 1 week
RoHS compliant
2 core 7/0.2 + drain screened cable with PVC insulation, 30 m reel
Quick Ship
Click to expand/minimize a list of what others bought with theTX4-100
TX4-100
€33.00
Availability: In Stock
RoHS compliant
4-Core 7/0.2 mm PVC screened cable white, red, green & black with drain wire, 30 metres
Quick Ship
Click to expand/minimize a list of what others bought with theTX4-200
TX4-200
€57.00
Availability: 6 weeks
RoHS compliant
4-Core 7/0.2 mm PVC screened cable white, red, green & black with drain wire, 30 metres 60 m reel
Quick Ship
Click to expand/minimize a list of what others bought with theTX4-500
TX4-500
€95.00
Availability: 1 week
RoHS compliant
4-Core 7/0.2 mm PVC screened cable white, red, green & black with drain wire, 30 metres 150 m reel
Quick Ship
Click to expand/minimize a list of what others bought with theTX4-1000
TX4-1000
€192.00
Availability: 6 weeks
RoHS compliant
4-Core 7/0.2 mm PVC screened cable white, red, green & black with drain wire, 30 metres 300 m reel
Quick Ship
Click to expand/minimize a list of what others bought with theTX8-100
TX8-100
€93.00
Availability: 1 week
RoHS compliancy undetermined
8 core 7/0.2 + drain screened cable with PVC insulation, 30 m reel
Quick Ship
Click to expand/minimize a list of what others bought with theTX15-100
TX15-100
€134.00
Availability: 7 weeks
RoHS compliant
15 core 7/0.2 + drain screened cable with PVC insulation, 30 m reel
Single Strand PFA Insulated Copper Wire
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-003-50
TFCP-003-50
€16.25
Availability: In Stock
RoHS compliant
0.08 mm dia single strand PFA insulated copper wire, 15 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-003-100
TFCP-003-100
€29.50
Availability: In Stock
RoHS compliant
0.08 mm dia single strand PFA insulated copper wire, 30 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-003-500
TFCP-003-500
€120.00
Availability: 7 weeks
RoHS compliant
0.08 mm dia single strand PFA insulated copper wire, 150 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-005-50
TFCP-005-50
€16.25
Availability: 7 weeks
RoHS compliant
0.13 mm dia. single strand PFA insulated copper wire, 15 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-005-100
TFCP-005-100
€29.50
Availability: In Stock
RoHS compliant
0.13 mm dia. single strand PFA insulated copper wire, 30 m
Quick Ship

TFCP-005-500
€120.00
Availability: 7 weeks
RoHS compliant
0.13 mm dia. single strand PFA insulated copper wire, 150 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-010-50
TFCP-010-50
€16.25
Availability: 6 weeks
RoHS compliant
0.25 mm dia single strand PFA insulated copper wire, 15 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-010-100
TFCP-010-100
€29.50
Availability: 6 weeks
RoHS compliant
0.25 mm dia single strand PFA insulated copper wire, 30 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-010-500
TFCP-010-500
€120.00
Availability: 6 weeks
RoHS compliant
0.25 mm dia single strand PFA insulated copper wire, 150 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-015-50
TFCP-015-50
€16.25
Availability: 7 weeks
RoHS compliant
0.4 mm dia single strand PFA insulated copper wire, 15 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-015-100
TFCP-015-100
€29.50
Availability: 7 weeks
RoHS compliant
0.4 mm dia single strand PFA insulated copper wire, 30 m
Quick Ship

TFCP-015-500
€120.00
Availability: 1 week
RoHS compliant
0.4 mm dia single strand PFA insulated copper wire, 150 m
Quick Ship

TFCP-020-50
€16.25
Availability: 7 weeks
RoHS compliant
0.5 mm dia single strand PFA insulated copper wire, 15 m
Quick Ship
Click to expand/minimize a list of what others bought with theTFCP-020-100
TFCP-020-100
€29.50
Availability: 7 weeks
RoHS compliant
0.5 mm dia single strand PFA insulated copper wire, 30 m
Quick Ship

TFCP-020-500
€120.00
Availability: 7 weeks
RoHS compliant
0.5 mm dia single strand PFA insulated copper wire, 150 m
Quick Ship

TFCP-032-50
€43.00
Availability: 7 weeks
RoHS compliant
0.8 mm dia single strand PFA insulated copper wire, 15 m
Quick Ship

TFCP-032-100
€74.00
Availability: 7 weeks
RoHS compliant
0.8 mm dia single strand PFA insulated copper wire, 30 m
Quick Ship

TFCP-032-500
€211.00
Availability: 7 weeks
RoHS compliant
0.8 mm dia single strand PFA insulated copper wire, 150 m
Ribbon Cable
Quick Ship
Click to expand/minimize a list of what others bought with theRC4-100
RC4-100
€162.00
Availability: 1 week
RoHS compliancy undetermined
4 conductor colour coded ribbon cable with PVC insulation, 15 m reel
Quick Ship

RC10-100
€215.00
Availability: 5 weeks
RoHS compliant
10 conductor colour coded ribbon cable with PVC insulation, 15 m reel
Quick Ship

RC14-100
Consult Sales
Availability:

RoHS compliant
14 conductor colour coded ribbon cable with PVC insulation, 15 m reel
Quick Ship

RC16-100
€315.00
Availability: 5 weeks
RoHS compliant
16 conductor colour coded ribbon cable with PVC insulation, 15 m reel
Quick Ship

RC26-100
€520.00
Availability: 5 weeks
RoHS compliant
26 conductor colour coded ribbon cable with PVC insulation, 15 m reel
Quick Ship

RC50-100
€955.00
Availability: 5 weeks
RoHS compliant
50 conductor colour coded ribbon cable with PVC insulation, 15 m reel
† All amounts shown in EUR
 Ordering Example: (1) TX4-100 4 core + drain screened cable with PVC insulation, 30 m reel, €33.00
