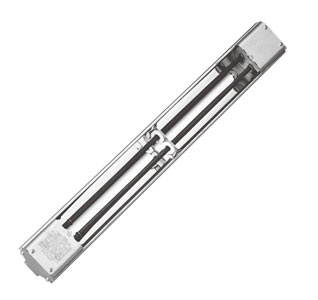

Single and Double Fixed Element Radiant Process Heaters

RAD/RADD Series

Single and Double Fixed Element Radiant Process Heaters | RAD/RADD Series

Single and Double Fixed Element Radiant Process Heaters

355,00 RAD2083B/120

RoHS
  • 0.40 to 13.0 kW
  • 120, 208, 240, 480V
  • 1500°F max. Sheath Temperature
  • 3/8" Diameter Incoloy Sheath
  • RAD Series (Single Fixed Elements) 1.83 kW/Sq. Ft.
  • RADD Series (Two Fixed Elements) 3.66 kW/Sq. Ft.
  • APPLICATIONS (RAD SERIES)
    • Finish curing
    • Latex and resin curing
    • Ink drying
    • Textile and non-woven fabric applications
    • Paper and paper board applications
    • Food processing
    • Ceramic drying
  • APPLICATIONS (RADD SERIES)
    • Shrink fitting
    • Preheating glass for polishing, drying, sterilizing
    • Fast-moving webs

Description

FEATURES
Construction (RAD): Complete, ready-to connect assembly as illustrated. Power connections are made at each end unless single-end wiring is specified. To specify 18" leads at one end, add “SE” to model number and $25 to price.

Caution: Hazard of fire. These radiant heaters must not be operated in the presence of flammable vapors, gases, or combustible materials without proper ventilation and/or other safety precautions either in compliance with the National Fire Protection Bulletin 86A entitled “Ovens and Furnaces” or the authority having jurisdiction.

Length-Inches
Over-Heated
Volts RAD
Single element (1.83 kw/ft2)
Wt.
Ibs.
(kg)
RADD
2 element (3.66 kw/ft2)
Wt.
Ibs.
(kg)
Grille*
(Optional)
Model No.
all (A) (B) (cm) kW Model No. kW Model No.
24 3/8 (62)16 1/2 (42)1200.8RAD2083B/1204(2)1.6RADD2164/1207(3)GR-2 $
24 3/8 (62)16 1/2 (42)2080.8RAD2083BV/2084(2)1.6RADD2164V/208-7(3)GR-2
24 3/8 (62)16 1/2 (42)2400.8RAD2083B/2404(2)1.6RADD2164/2407(3)GR-2
30 5/8 (78)22 3/4 (58)1201.1RAD3113B/1205(2)2.2RADD3224/1209(4)GR-3
30 5/8 (78)22 3/4 (58)2081.1RAD3113BV/2085(2)2.2RADD3224V/2089(4)GR-3
30 5/8 (78)22 3/4 (58)2401.1RAD3113B/2405(2)2.2RADD3224/2409(4)GR-3
30 5/8 (78)22 3/4 (58)2751.1RAD3113BV/2755(2)2.2RADD3224V/2759(4)GR-3
46 5/8 (118)38 1/2 (98)2081.8RAD4183B/2088(4)3.6RADD4364V/20811(5)GR-4
46 5/8 (118)38 1/2 (98)2401.8RAD4183B/2408(4)3.6RADD4364/24011(5)GR-4
46 5/8 (118)38 1/2 (98)4801.8RAD4183BV/4808(4)3.6RADD4364/48011(5)GR-4
61 3/8 (156)53 3/8 (136)2082.5RAD5253BV/20810(5)5RADD5504V/20814(6)GR-5
61 3/8 (156)53 3/8 (136)2402.5RAD5253B/24010(5)5RADD5504/24014(6)GR-5
61 3/8 (156)53 3/8 (136)2752.5RAD5253BV/27510(5)5RADD5504V/27514(6)GR-5
61 3/8 (156)53 3/8 (136)4802.5RAD5253B/48010(5)5RADD5504/48014(6)GR-5
73 3/4 (187)65 3/4 (167)2083RAD6303BV/20812(5)6RADD6604V/20816(7)GR-6
73 3/4 (187)65 3/4 (167)2403RAD6303B/24012(5)6RADD6604/24016(7)GR-6
73 3/4 (187)65 3/4 (167)2753RAD6303BV/27512(5)6RADD6604V/27516(7)GR-6
73 3/4 (187)65 3/4 (167)4803RAD6303B/48012(5)6RADD6604/48016(7)GR-6
85 3/4 (218)78 (198)2083.6RAD7363BV/20814(6)7.2RADD7724V/20818(8)(2)GR-4
85 3/4 (218)78 (198)2403.6RAD7363B/24014(6)7.2RADD7724/24018(8)(2)GR-4
85 3/4 (218)78 (198)4803.6RAD7363B/48014(6)7.2RADD7724/48018(8)(2)GR-4
*Snap-in grille sections protect personnel or work from contact with hot elements. Grille sections are optional and are ordered separately.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
RAD Series
Quick Ship
RADD2164/240
540.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 1.6 kW, 120 V, 2 element
Quick Ship
RAD2083B/120
355.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 0.8 kW, 120 V, single element
Quick Ship
RAD3113B/120
373.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 1.1 kW, 120 V, single element
Quick Ship
RAD5253B/240
580.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 2.5 kW, 240 V, single element
Quick Ship
RAD5253B/480
580.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 2.5 kW, 480 V, single element
Quick Ship
RAD6303BV/208
715.00
Availability: 7 weeks
RoHS compliant
Radiant process heater, 3 kW, 208 V, single element
Quick Ship
RAD7363BV/208
720.00
Availability: 7 weeks
RoHS compliant
Radiant process heater, 3.6 kW, 208 V, single element
RADD Series
Quick Ship
RADD2164/240
540.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 1.6 kW, 240 V, 2 element
Quick Ship
RADD4364/240
660.00
Availability: 7 weeks
RoHS compliant
Radiant process heater, 3.6 kW, 240 V, 2 element
Quick Ship
RADD6604/240
940.00
Availability: 7 weeks
RoHS compliant
Radiant process heater, 6 kW, 240 V, 2 element
Quick Ship
RADD7724/480
1,045.00
Availability: 5 weeks
RoHS compliant
Radiant process heater, 7.2 kW, 480 V, 2 element
All amounts shown in EUR
Note: Other sizes and ratings available. Replacement RAD/RADD heater elements are also available. Contact OMEGALUX™.
