Discontinued

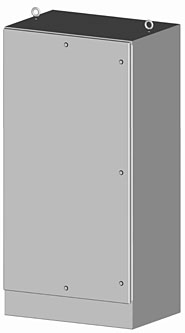

SCE-ELFS Series

SCE_ELFS Series - Discontinued

^€2.705,00 SCE-72EL2418FS

PLACE ORDER

These enclosures are currently only available on special quotation, please review our range here for a possible alternative, or contact our sales department for a quotation.
Provides IP66 (NEMA 4) Water and Dust Protection
Seams Continuously Welded and Ground Smooth
Oil-Resistant Gasket
Flange Trough Collar Around All Sides of Door Opening
Concealed Hinge
Removable and Interchangeable Doors
Black Quarter Turn Latches
Removable Print Pocket
Lifting Eyes for Easy Handling
Earthing Studs on Door and Body
Mounting Channels Welded Horizontally on Sides of Interior Body at Top, Bottom and Middle for Mounting Optional Panels or Rack Mounting Angles
No Door Stiffeners
Padlocking or Keylocking Handle with 3-Point Operating Mechanism and Tamper-Resistant Hardware is Available
Interchangeable Latches and Handles Available

Description

Application
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.

Finish
ANSI-61 grey coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12, & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66
