NEMA Type 12 Large Continuous Hinge Enclosures Discontinued

SCE Series ALP/BLP

NEMA Type 12 Large Continuous Hinge Enclosures | SCE Series ALP/BLP

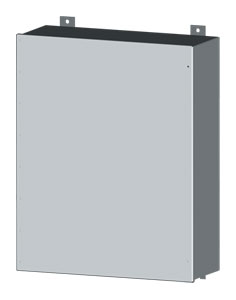

NEMA Type 12 Large Continuous Hinge Enclosures

See All Models Below

PLACE ORDER
1 year warranty
  • 0.075" Carbon Steel
  • Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
  • Continuous Hinge
  • Rivnut/Screw Fastened Cover
  • Oil Resistant Gasket
  • Studs for Mounting Optional Panels
  • Ground Stud on Door
  • Removable Print Pocket Furnished if Height and Width of Enclosure is 24" or More

Description

This enclosure series has been discontinued. Please see the SCE-LP as a possible alternative or contact our Automation Engineering department.

Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

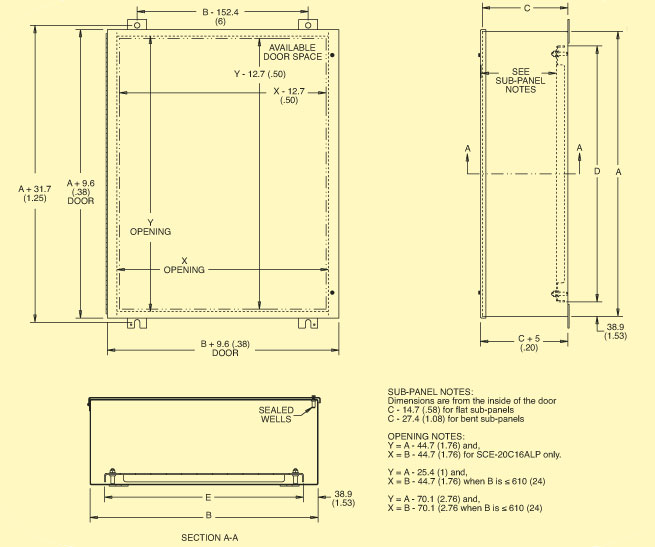

SCE_LgContHinge Series Dimensional Diagram
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
ENCLOSURES
SCE-20C16ALP
Consult Sales
Availability:


Enclosures, Height=20.00 Width=16.00 Depth=7.00
SCE-20C16BLP
Consult Sales
Availability:


Enclosures, Height=20.00 Width=16.00 Depth=9.00
SCE-20C20ALP
Consult Sales
Availability:


Enclosures, Height=20.00 Width=20.00 Depth=7.00
SCE-20C20BLP
Consult Sales
Availability:


Enclosures, Height=20.00 Width=20.00 Depth=9.00
SCE-24C20ALP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=20.00 Depth=7.00
SCE-24C20BLP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=20.00 Depth=9.00
SCE-24C24ALP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=24.00 Depth=7.00
SCE-24C24BLP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=24.00 Depth=9.00
SCE-24C24CLP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=24.00 Depth=11.00
SCE-30C20ALP
Consult Sales
Availability:


Enclosures, Height=30.00 Width=20.00 Depth=7.00
SCE-30C20BLP
Consult Sales
Availability:


Enclosures, Height=30.00 Width=20.00 Depth=9.00
SCE-30C24ALP
Consult Sales
Availability:


Enclosures, Height=24.00 Width=20.00 Depth=7.00
SCE-30C24BLP
Consult Sales
Availability:


Enclosures, Height=30.00 Width=24.00 Depth=9.00
SCE-30C24DLP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=24.00 Depth=13.00
SCE-36C24ALP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=24.00 Depth=7.00
SCE-36C24BLP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=24.00 Depth=9.00
SCE-36C24CLP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=24.00 Depth=11.00
SCE-36C30BLP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=30.00 Depth=9.00
SCE-36C30DLP
Consult Sales
Availability:


Enclosures, Height=36.00 Width=30.00 Depth=13.00
SCE-48C36CLP
Consult Sales
Availability:


Enclosures, Height=48.00 Width=36.00 Depth=11.00
SUB-PANEL
SCE-20P16
€82.94
Availability: 5 weeks

Sub-Panel, Height=17.00 Width=13.00
SCE-20P20
€114.94
Availability: 1 week

Sub-Panel, Height=17.00 Width=17.0
SCE-24P20
€131.10
Availability: 5 weeks

Sub-Panel, Height=21.00 Width=17.00
SCE-24P24
€143.97
Availability: 1 week

Sub-Panel, Height=21.00 Width=21.00
SCE-30P20
€166.33
Availability: 5 weeks

Sub-Panel, Height=27.00 Width=17.00
SCE-30P24
€167.03
Availability: 1 week

Sub-Panel, Height=27.00 Width=21.00
SCE-36P24
€210.25
Availability: 5 weeks

Sub-Panel, Height=33.00 Width=21.00
SCE-36P30
€281.13
Availability: 5 weeks

Sub-Panel, Height=33.00 Width=27.00
SCE-48P36
€400.78
Availability: 3 weeks

Sub-Panel, Height=45.00 Width=33.00
ACCESSORIES
Swing Out Panel Kits for NEMA Type 12 Enclosures - allows installation of sub-panels in front of enclosure with swing out access. more info

SCE-NADFK
€126.11
Availability: 3 weeks

Swing Out Panel Kits for enclosure sub-panels 30' or less.
SCE-NADFK-3
€164.28
Availability: 3 weeks

Swing Out Panel Kits for enclosure sub-panels larger than 30'.
