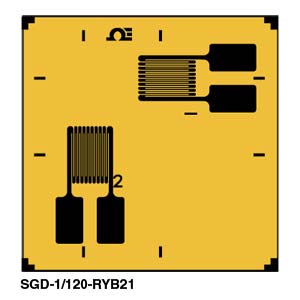

Dual Element, 90º Biaxial Rosette Strain Gauges

SGD-3/120-RYB21

Dual Element, 90º Biaxial Rosette Strain Gauges | SGD-3/120-RYB21

Dual Element, 90º Biaxial Rosette Strain Gauges

94,00 SGD-1/120-RYB21

  • Conveniently Priced per Pack of 5
  • General Purpose Strain Gauges
  • Very Flexible, Mechanically Strong
  • Small Bending Radius
  • Ribbon Leads or Solder Pad Termination
  • Clear Alignment Marks
  • Apply with Cold or Hot Curing Adhesiver
Strain Gages, Accessories and Instrumentation - View related products

Description

Find how a Strain Gauge works on this link.

OMEGA strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurements.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
SGD-1/120-RYB21
94.00
Availability: 1 week

1.6 mm Grid, 120 ohms
SGD-1/350-RYB21
94.00
Availability: 5 weeks

1.6 mm Grid, 350 ohms
SGD-3/120-RYB21
94.00
Availability: 1 week

3 mm Grid, 120 ohms
SGD-3/350-RYB21
94.00
Availability: 6 weeks

3 mm Grid, 350 ohms
SGD-6/120-RYB21
108.00
Availability: 2 weeks

6 mm Grid, 120 ohms
SGD-6/350-RYB21
108.00
Availability: 4 weeks

6 mm Grid, 350 ohms
Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
SGD-1/120-RYB23
94.00
Availability: 4 weeks

1.6 mm Grid, 120 ohms
SGD-1/350-RYB23
94.00
Availability: 1 week

1.6 mm Grid, 350 ohms
SGD-3/120-RYB23
94.00
Availability: 4 weeks

3 mm Grid, 120 ohms
SGD-3/350-RYB23
94.00
Availability: 5 weeks

3 mm Grid, 350 ohms
SGD-6/120-RYB23
108.00
Availability: 1 week

6 mm Grid, 120 ohms
SGD-6/350-RYB23
108.00
Availability: 4 weeks

6 mm Grid, 350 ohms
Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
SGD-1/120-RYB81
72.00
Availability: 4 weeks

1.6 mm Grid, 120 ohms
SGD-1/350-RYB81
72.00
Availability: 4 weeks

1.6 mm Grid, 350 ohms
SGD-3/120-RYB81
72.00
Availability: 1 week

3 mm Grid, 120 ohms
SGD-3/350-RYB83
103.00
Availability: 2 weeks

3 mm Grid, 350 ohms
SGD-6/120-RYB81
94.00
Availability: 4 weeks

6 mm Grid, 120 ohms
SGD-6/350-RYB81
94.00
Availability: 4 weeks

6 mm Grid, 350 ohms
Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
SGD-1/120-RYB83
72.00
Availability: 4 weeks

1.6 mm Grid, 120 ohms
SGD-1/350-RYB83
103.00
Availability: 2 weeks

1.6 mm Grid, 350 ohms
SGD-3/120-RYB83
72.00
Availability: 4 weeks

3 mm Grid, 120 ohms
SGD-3/350-RYB83
103.00
Availability: 2 weeks

3 mm Grid, 350 ohms
SGD-6/120-RYB83
94.00
Availability: 4 weeks

6 mm Grid, 120 ohms
SGD-6/350-RYB83
114.00
Availability: 4 weeks

6 mm Grid, 350 ohms
All amounts shown in EUR
Note: Sold in packages of 5 strain gauges.
