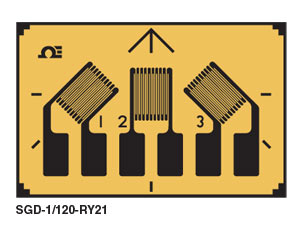

Rectangular 3 Element Strain Gauge

SGD-3/350-RY21

Rectangular 3 Element Strain Gauge | SGD-3/350-RY21

Rectangular 3 Element Strain Gauge

213,35 SGD-1/120-RY21

  • Conveniently Priced per Pack of 5
  • Very Flexible, Mechanically Strong
  • Small Bending Radius
  • Broad Temperature Range
  • Clear alignment Marks
  • Affix with Cold or Hot Curing Adhesives
Strain Gages, Accessories and Instrumentation - View related products

Description

Click on this link if you need more information about Strain Gauge.

OMEGA™ strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Encapsulated, Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
SGD-1/120-RY21
213.35
Availability: 5 weeks

1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-1/350-RY21
256.51
Availability: 1 week

1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-2/350-RY11
205.20
Availability: 5 weeks

2 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-3/120-RY21
213.35
Availability: 5 weeks

3 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-3/350-RY21
205.20
Availability: 5 weeks

3 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-6/120-RY21
218.88
Availability: 5 weeks

6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-6/350-RY21
218.88
Availability: 5 weeks

6 mm Grid, 350 ohms 3-Element, 45° Rosette
Encapsulated, Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
SGD-1/120-RY23
213.35
Availability: 5 weeks

1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-1/350-RY23
246.71
Availability: 5 weeks

1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-2/350-RY13
205.20
Availability: 5 weeks

2 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-3/120-RY23
205.20
Availability: 5 weeks

3 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-3/350-RY23
205.20
Availability: 5 weeks

3 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-6/120-RY23
218.88
Availability: 5 weeks

6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-6/350-RY23
215.46
Availability: 5 weeks

6 mm Grid, 350 ohms 3-Element, 45° Rosette
Encapsulated, Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
SGD-1/120-RY81
192.03
Availability: 5 weeks

1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-1/350-RY81
245.30
Availability: 5 weeks

1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-2/350-RY31
184.68
Availability: 5 weeks

2 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-3/120-RY81
184.68
Availability: 5 weeks

3 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-3/350-RY81
245.30
Availability: 5 weeks

3 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-6/120-RY81
246.71
Availability: 5 weeks

6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-6/350-RY81
205.20
Availability: 5 weeks

6 mm Grid, 350 ohms 3-Element, 45° Rosette
Encapsulated, Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
SGD-1/120-RY83
184.68
Availability: 5 weeks

1.6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-1/350-RY83
184.68
Availability: 5 weeks

1.6 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-2/350-RY33
235.93
Availability: 5 weeks

2 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-3/120-RY83
192.03
Availability: 5 weeks

3 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-3/350-RY83
235.93
Availability: 5 weeks

3 mm Grid, 350 ohms 3-Element, 45° Rosette
SGD-6/120-RY83
205.20
Availability: 5 weeks

6 mm Grid, 120 ohms 3-Element, 45° Rosette
SGD-6/350-RY83
205.20
Availability: 5 weeks

6 mm Grid, 350 ohms 3-Element, 45° Rosette
All amounts shown in EUR
Note: Sold in Packs of 5
