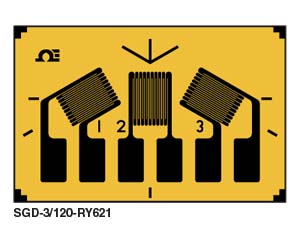

60º Delta Rosette Strain Gauge
Planar Compact Geometry

SGD-3/120-RY621

60º Delta Rosette Strain Gauge
Planar Compact Geometry | SGD-3/120-RY621

139,00 SGD-3/120-RY621

  • Conveniently Priced per Pack of 5
  • Very Flexible, Mechanically Strong
  • Small Bending Radius
  • Broad Temperature Range
  • Clear alignment Marks
  • Affix with Cold or Hot Cure Adhesives
Strain Gages, Accessories and Instrumentation - View related products

Description

Find how a Strain Gauge works on this link.

OMEGA™ strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Encapsulated, Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
Quick Ship
SGD-1/120-RY621
139.00
Availability: 1 week

1.6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-1/350-RY621
139.00
Availability: 4 weeks

1.6 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/120-RY621
139.00
Availability: 4 weeks

3 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/350-RY621
139.00
Availability: 4 weeks

3 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/120-RY621
148.00
Availability: 4 weeks

6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/350-RY621
148.00
Availability: 4 weeks

6 mm grid, 350 ohms, 60° 3-Element Rosette
Encapsulated, Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
Quick Ship
SGD-1/120-RY623
139.00
Availability: 5 weeks

1.6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-1/350-RY623
139.00
Availability: 4 weeks

1.6 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/120-RY623
139.00
Availability: 4 weeks

3 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/350-RY623
139.00
Availability: 4 weeks

3 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/120-RY623
148.00
Availability: 4 weeks

6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/350-RY623
148.00
Availability: 4 weeks

6 mm grid, 350 ohms, 60° 3-Element Rosette
Encapsulated, Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
Quick Ship
SGD-1/120-RY681
125.00
Availability: 4 weeks

1.6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-1/350-RY681
125.00
Availability: 4 weeks

1.6 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/120-RY681
125.00
Availability: 4 weeks

3 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/350-RY681
125.00
Availability: 4 weeks

3 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/120-RY681
139.00
Availability: 4 weeks

6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/350-RY681
139.00
Availability: 4 weeks

6 mm grid, 350 ohms, 60° 3-Element Rosette
Encapsulated, Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
Quick Ship
SGD-1/120-RY683
125.00
Availability: 4 weeks

1.6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-1/350-RY683
125.00
Availability: 4 weeks

1.6 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/120-RY683
125.00
Availability: 4 weeks

3 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-3/350-RY683
125.00
Availability: 4 weeks

3 mm grid, 350 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/120-RY683
139.00
Availability: 4 weeks

6 mm grid, 120 ohms, 60° 3-Element Rosette
Quick Ship
SGD-6/350-RY683
139.00
Availability: 4 weeks

6 mm grid, 350 ohms, 60° 3-Element Rosette
All amounts shown in EUR
Note: Sold in packages of 5 strain gauges.
