Precision Strain Gauges Dual-Grid for Bending Strains

SGD-2/350-DY11

^€108,31 SGD-2/350-DY11

PLACE ORDER

Precision Parallel Grid Gauges for Bending Strain
Conveniently Priced per Pack of 5
Very Flexible, Mechanically Strong
Small Bending Radius to 3mm
Broad Temperature Range
Clear Alignment Marks
Attach with Hot or Cold cure Adhesives

Strain Gages, Accessories and Instrumentation - View related products

Description

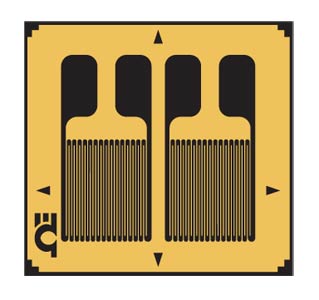

Parallel grids enable easy installation and alignment for bending applications.
Smallest bend radius is 3mm

Find how a Strain Gauge works on this link.

OMEGA™ strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Encapsulated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)

SGD-2/350-DY11

€108.31

Availability: 5 weeks

2 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-2/1000-DY11

€104.76

Availability: 5 weeks

2 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-3/350-DY11

€117.59

Availability: 5 weeks

3 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-3/1000-DY11

€113.79

Availability: 5 weeks

3 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-7/350-DY11

€120.73

Availability: 5 weeks

7 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-7/1000-DY11

€123.32

Availability: 5 weeks

7 mm grid, 1000 ohms, Dual Parallel Grid Pattern

Encapsulated with Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)

SGD-2/350-DY13

€108.31

Availability: 5 weeks

2 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-2/1000-DY13

€104.19

Availability: 5 weeks

2 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-3/350-DY13

€117.59

Availability: 5 weeks

3 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-3/1000-DY13

€122.65

Availability: 5 weeks

3 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-7/350-DY13

€120.73

Availability: 1 week

7 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-7/1000-DY13

€112.03

Availability: 1 week

7 mm grid, 1000 ohms, Dual Parallel Grid Pattern

Encapsulated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)

SGD-2/350-DY41

€86.36

Availability: 5 weeks

2 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-2/1000-DY41

€86.36

Availability: 5 weeks

2 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-3/350-DY41

€96.83

Availability: 1 week

3 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-3/1000-DY41

€111.29

Availability: 1 week

3 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-7/350-DY41

€110.83

Availability: 1 week

7 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-7/1000-DY41

€95.49

Availability: 5 weeks

7 mm grid, 1000 ohms, Dual Parallel Grid Pattern

Encapsulated with Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)

SGD-2/350-DY43

€86.36

Availability: 5 weeks

2 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-2/1000-DY43

€98.36

Availability: 5 weeks

2 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-3/350-DY43

€102.27

Availability: 5 weeks

3 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-3/1000-DY43

€89.79

Availability: 5 weeks

3 mm grid, 1000 ohms, Dual Parallel Grid Pattern

SGD-7/350-DY43

€110.83

Availability: 5 weeks

7 mm grid, 350 ohms, Dual Parallel Grid Pattern

SGD-7/1000-DY43

€91.85

Availability: 5 weeks

7 mm grid, 1000 ohms, Dual Parallel Grid Pattern

† All amounts shown in EUR
Note: Sold in Packages of 5 Strain Gages
