Stress Relief /Residual Stress Strain Gauges

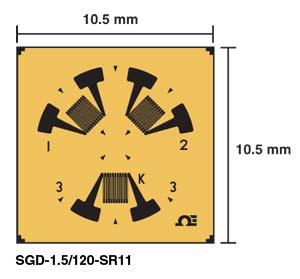

SGD-1.5/120-SR11

Residual Stress Strain Gauges | SGD-1.5/120-SR11

Residual Stress Strain Gauges

147,00 SGD-1.5/120-SR11

RoHS
  • Stress Relief measured by Drilling Small Hole
  • Very Flexible, Mechanically Strong
  • Small Bending Radius
  • Broad Temperature Range
  • Affix with Cold or Hot Curing Adhesives
  • Sold in Packages of 5
Strain Gages, Accessories and Instrumentation - View related products

Description

Click on this link if you need more information about Strain Gauge.

OMEGA™ strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

Our Stress Relief or Residual Stress pattern strain gauges are mounted onto a test piece that is already stressed. Instrumentation is attached to all 3 elements in the rosette pattern. The stress relief is determined by unloading the test specimen by boring-out or drilling a small hole in the centre of the strain gauge. By removing material you are releasing the stress and measuring the relaxed residual stress in the vicinity of the hole. Hole depth and diameter is 1.87 mm

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
SGD-1.5/120-SR11 Star
147,00
Availability: 7 weeks
RoHS compliant
Package of 5 Stress Relief Strain Gauges, 1.5 mm grid, 120 ohms, Ribbon Leads, Matched to steel
SGD-1.5/120-SR13 Star
147,00
Availability: 7 weeks
RoHS compliant
Package of 5 Stress Relief Strain Gauges, 1.5 mm grid, 120 ohms, Ribbon Leads, Matched to Aluminum
SGD-1.5/120-SR41 Star
138,00
Availability: 2 weeks
RoHS compliant
Package of 5 Stress Relief Strain Gauges, 1.5 mm grid, 120 ohms, Solder Pads, Matched to steel
SGD-1.5/120-SR43 Star
138,00
Availability: 7 weeks
RoHS compliant
Package of 5 Stress Relief Strain Gauges, 1.5 mm grid, 120 ohms, Solder Pads, Matched to Aluminum
All amounts shown in EUR
Note: 5 x Strain Gauges in a Pack
