3-Element Strain Gauge Rosette
Triaxial: 0°/45°/90°

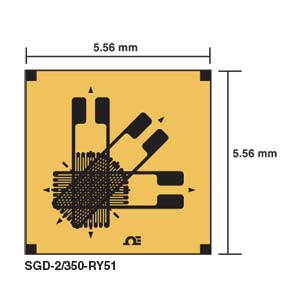

SGD-2/350-RY51

3-Element Strain Gauge Rosette Triaxial | SGD-2/350-RY51

3-Element Strain Gauge Rosette Triaxial

210,00 SGD-2/350-RY51

  • Strain gauge rosette with 3 sensing elements
  • Conveniently Priced per Pack of 5
  • Very Flexible, Mechanically Strong
  • Small Bending Radius
  • Broad Temperature Range
  • Affix with Cold or Hot Curing Adhesives
Strain Gages, Accessories and Instrumentation - View related products

Description

Find how a Strain Gauge works on this link.

The OMEGA™ rosette strain gauges are available in a variety of models to cover most strain measurement applications. Their rugged construction and flexibility make them suitable for highly accurate static and dynamic measurement. The measuring rosetta grid is formed by etching constantan foil, which is then completely sealed in a carrier medium composed of polyimide film.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Encapuslated with Ribbon Leads, Matched to Steel (PRICE PER PKG OF 5)
Quick Ship
SGD-2/120-RY51
211.00
Availability: 5 weeks

Triaxial strain gauge Rosette, 2 mm grid, 120 ohms
Quick Ship
SGD-2/350-RY51
210.00
Availability: 3 weeks

Triaxial strain gauge Rosette, 2 mm grid, 350 ohms
Quick Ship
SGD-3/120-RY51
202.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 3 mm grid, 120 ohms
Quick Ship
SGD-3/350-RY51
210.00
Availability: 1 week

Triaxial strain gauge Rosette, 3 mm grid, 350 ohms
Quick Ship
SGD-7/120-RY51
210.00
Availability: 7 weeks

Triaxial strain gauge Rosette, 7 mm grid, 120 ohms
Quick Ship
SGD-7/350-RY51
210.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 350 ohms
Encapuslated with Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
Quick Ship
SGD-2/120-RY53
192.00
Availability: 5 weeks

Triaxial strain gauge Rosette, 2 mm grid, 120 ohms
Quick Ship
SGD-2/350-RY53
210.00
Availability: 1 week

Triaxial strain gauge Rosette, 2 mm grid, 350 ohms
Quick Ship
SGD-3/120-RY53
202.00
Availability: 5 weeks

Triaxial strain gauge Rosette, 3 mm grid, 120 ohms
Quick Ship
SGD-3/350-RY53
210.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 3 mm grid, 350 ohms
Quick Ship
SGD-7/120-RY53
202.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 120 ohms
Quick Ship
SGD-7/350-RY53
210.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 350 ohms
Encapuslated with Solder Pads, Matched to Steel (PRICE PER PKG OF 5)
Quick Ship
SGD-2/120-RY61
201.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 2 mm grid, 120 ohms
Quick Ship
SGD-2/350-RY61
198.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 2 mm grid, 350 ohms
Quick Ship
SGD-3/120-RY61
182.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 3 mm grid, 120 ohms
Quick Ship
SGD-3/350-RY61
192.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 3 mm grid, 350 ohms
Quick Ship
SGD-7/120-RY61
196.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 120 ohms
Quick Ship
SGD-7/350-RY61
198.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 350 ohms
Encapuslated with Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
Quick Ship
SGD-2/120-RY63
182.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 2 mm grid, 120 ohms
Quick Ship
SGD-2/350-RY63
198.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 2 mm grid, 350 ohms
Quick Ship
SGD-3/120-RY63
182.00
Availability: 5 weeks

Triaxial strain gauge Rosette, 3 mm grid, 120 ohms
Quick Ship
SGD-3/350-RY63
192.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 3 mm grid, 350 ohms
Quick Ship
SGD-7/120-RY63
196.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 120 ohms
Quick Ship
SGD-7/350-RY63
198.00
Availability: 4 weeks

Triaxial strain gauge Rosette, 7 mm grid, 350 ohms
All amounts shown in EUR
Note: Sold as a package. Each Pack contains 5 strain gauges.
