Karma Dual Parallel Grid Strain Gages

SGK-D Series

See All Models Below

PLACE ORDER

K-Series, Karma Gages for Transducers
Stock Delivery, Copper Plated Solder Pads
Temperature Characteristics Matched to Steel or Aluminum
Dual Parallel Grid for Bending Strain Applications
Custom Gages Available - Fast Delivery

Description

Click on this link if you need more information about Strain Gauge.

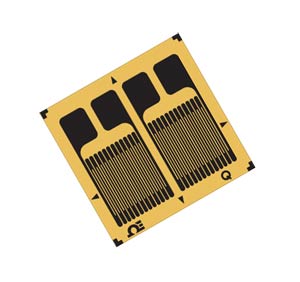

OMEGADYNE® offers Karma K-Series dual linear strain gage patterns. These strain gages can be used for bending beam transducer designs where you have access to both sides of the beam. Each carrier has 2 separate parallel linear strain gages. Precision Karma material offers excellent temperature and fatigue characterisitcs. K-Series gages have plated solder pads which make soldering quick and easy. No special solders or fluxes are required.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Sold in Packages of 5 gages

SGK-D2A-K350Q-PC11-E

Consult Sales

Availability:

Small dual grip pattern for bending strain, 350 ohms, compenstated for steel

SGK-D2A-K350Q-PC23-E

Consult Sales

Availability:

Small dual grip pattern for bending strain, 350 ohms, compenstated for aluminum

SGK-D3A-K350U-PC11-E

€73.74

Availability: 5 weeks

Medium dual grip pattern for bending strain, 350 ohms, compenstated for steel

SGK-D3A-K350U-PC23-E

€73.74

Availability: 5 weeks

Medium dual grip pattern for bending strain, 350 ohms, compenstated for aluminum

SGK-D3B-K350Q-PC11-E

€73.74

Availability: 5 weeks

Medium-long dual grip pattern for bending strain, 350 ohms, compenstated for steel

SGK-D3B-K350Q-PC23-E

€73.74

Availability: 5 weeks

Medium-long dual grip pattern for bending strain, 350 ohms, compenstated for aluminum

SGK-D6A-K350S-PC11-E

€86.04

Availability: 5 weeks

Large dual grip pattern for bending strain, 350 ohms, compenstated for steel

SGK-D6A-K350S-PC23-E

€86.04

Availability: 5 weeks

Large dual grip pattern for bending strain, 350 ohms, compenstated for aluminum

SGK-D6A-K1000S-PC11-E

€90.11

Availability: 5 weeks

Large dual grip pattern for bending strain, 1000 ohms, compenstated for steel

SGK-D6A-K1000S-PC23-E

€93.71

Availability: 5 weeks

Large dual grip pattern for bending strain, 1000 ohms, compenstated for aluminum

† All amounts shown in EUR
