Strain Gauges
Transducer Quality Dual Element 90° Biaxial Tee Rosette

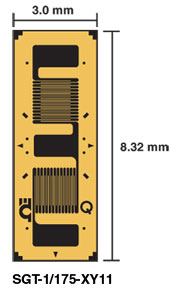

SGT-1/175-XY11

Strain Gauges Transducer Quality Dual Element 90° Biaxial Tee Rosette | SGT-1/175-XY11

50,00 SGT-1/175-XY11

  • FAST IMMEDIATE DELIVERY ON LARGE ORDERS!
    Stock to 1-Week!
  • 3-Terminal for Half Bridge or
    4-Terminal for Full Bridge Applications
  • Conveniently Priced per Pack of 5
  • Rugged, High Reliability
  • Flexible, Small Bending Radius
  • Broad Temperature Range - 75 to +200°C
  • Clear Alignment Marks
  • Affix with Cold or Hot Cure Adhesives

Description

Click on this link if you need more information about Strain Gauge.

OMEGA™ transducer quality strain gauges are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
3-Termination Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
Quick Ship
SGT-1/175-XY11
50.00
Availability: 1 week

1.1 mm grid, 175 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-1/350-XY11
50.00
Availability: 5 weeks

1.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-2H/350-XY11
52.00
Availability: 6 weeks

2 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3BH/350-XY11
52.00
Availability: 5 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on Ends and Middle
Quick Ship
SGT-3H/350-XY11
52.00
Availability: 4 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3L/350-XY11
67.00
Availability: 5 weeks

2.6 mm grid, 350 ohm Transducer Quality Tee Rosette with Elongated grid and 3 terminations on one side
Quick Ship
SGT-3H/1000-XY11
67.00
Availability: 4 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 3 terminations on one side
3-Termination Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
Quick Ship
SGT-1/175-XY13
50.00
Availability: 4 weeks

1.1 mm grid, 175 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-1/350-XY13
50.00
Availability: 5 weeks

1.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-2H/350-XY13
52.00
Availability: 4 weeks

2 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3BH/350-XY13
63.00
Availability: 4 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on Ends and Middle
Quick Ship
SGT-3H/350-XY13
52.00
Availability: 4 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3L/350-XY13
56.00
Availability: 1 week

2.6 mm grid, 350 ohm Transducer Quality Tee Rosette with Elongated grid and 3 terminations on one side
Quick Ship
SGT-3H/1000-XY13
56.00
Availability: 4 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 3 terminations on one side
3-Termination Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
Quick Ship
SGT-1/175-XY41
60.00
Availability: 4 weeks

1.1 mm grid, 175 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-1/350-XY41
60.00
Availability: 5 weeks

1.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-2H/350-XY41
46.00
Availability: 4 weeks

2 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3BH/350-XY41
60.00
Availability: 1 week

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on Ends and Middle
Quick Ship
SGT-3H/350-XY41
46.00
Availability: 4 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3L/350-XY41
50.00
Availability: 4 weeks

2.6 mm grid, 350 ohm Transducer Quality Tee Rosette with Elongated grid and 3 terminations on one side
Quick Ship
SGT-3H/1000-XY41
50.00
Availability: 4 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 3 terminations on one side
3-Terminal Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
Quick Ship
SGT-1/175-XY43
44.00
Availability: 4 weeks

1.1 mm grid, 175 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-1/350-XY43
60.00
Availability: 1 week

1.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on ends and middle
Quick Ship
SGT-2H/350-XY43
46.00
Availability: 4 weeks

2 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3BH/350-XY43
46.00
Availability: 5 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on Ends and Middle
Quick Ship
SGT-3H/350-XY43
46.00
Availability: 4 weeks

2.5 mm grid, 350 ohm Transducer Quality Tee Rosette with 3 terminations on one side
Quick Ship
SGT-3L/350-XY43
63.00
Availability: 4 weeks

2.6 mm grid, 350 ohm Transducer Quality Tee Rosette with Elongated grid and 3 terminations on one side
Quick Ship
SGT-3H/1000-XY43
50.00
Availability: 3 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 3 terminations on one side
4-Termination Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
Quick Ship
SGT-2/350-XY11
50.00
Availability: 7 weeks

1.6 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/350-XY11
52.00
Availability: 5 weeks

3.2 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/1000-XY11
56.00
Availability: 4 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-4/350-XY11
56.00
Availability: 5 weeks

4 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
4-Termination Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)
Quick Ship
SGT-2/350-XY13
63.00
Availability: 4 weeks

1.6 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/350-XY13
52.00
Availability: 4 weeks

3.2 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/1000-XY13
56.00
Availability: 6 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-4/350-XY13
67.00
Availability: 4 weeks

4 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
4-Termination Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
Quick Ship
SGT-2/350-XY41
44.00
Availability: 4 weeks

1.6 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/350-XY41
60.00
Availability: 4 weeks

3.2 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/1000-XY41
63.00
Availability: 4 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-4/350-XY41
50.00
Availability: 4 weeks

4 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
4-Terminal Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)
Quick Ship
SGT-2/350-XY43
44.00
Availability: 4 weeks

1.6 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/350-XY43
46.00
Availability: 9 weeks

3.2 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-3/1000-XY43
50.00
Availability: 7 weeks

3.2 mm grid, 1000 ohm Transducer Quality Tee Rosette with 4 terminations on one side
Quick Ship
SGT-4/350-XY43
50.00
Availability: 4 weeks

4 mm grid, 350 ohm Transducer Quality Tee Rosette with 4 terminations on one side
All amounts shown in EUR
Note: Sold in packages of 5 strain gauges.
